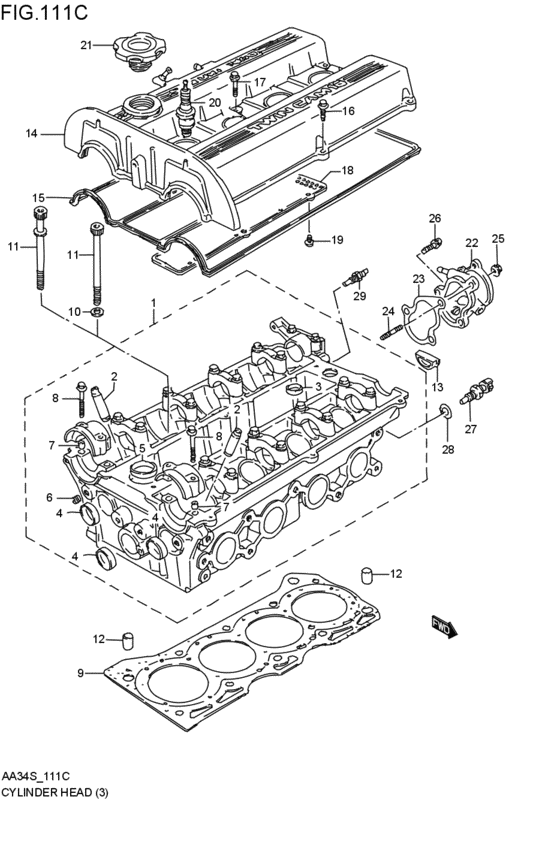

Cylinder head (DOHC; 1988-08-01~) Diagram Suzuki CULTUS
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-64B01-000
Head assy,cylinder
DOHC; 1988-08-01~ |
11100-64B01-000 |
— | ||
|
2
|
2
11115-62D00-001 GUIDE,VALVEDOHC; 1988-08-01~ |
11115-62D00-001 |
US $47.20 |
||
|
3
|
3
09241-22003-000 PLUGDOHC; 1988-08-01~ |
09241-22003-000 |
from US $1.76 |
||
|
4
|
4
09241-30009-000
Plug
DOHC; 1988-08-01~ |
09241-30009-000 |
— | ||
| replacement | |||||
|
4
|
4
09241-30010-000 PLUGDOHC; 1988-08-01~ |
09241-30010-000 |
US $2.40 |
||
|
5
|
5
09241-30009-000
Plug
DOHC; 1993-12-01~ |
09241-30009-000 |
— | ||
| replacement | |||||
|
5
|
5
09241-30010-000 PLUGDOHC; 1993-12-01~ |
09241-30010-000 |
US $2.40 |
||
|
5
|
5
09241-35002-000 PLUGDOHC; 1988-08-01~1993-12-01 |
09241-35002-000 |
US $30.20 |
||
|
6
|
6
09246-05006-000 PLUG(1/8PT,H:5.5)DOHC; 1988-08-01~ |
09246-05006-000 |
from US $1.76 |
||
|
7
|
7
09206-08001-000 PIN(8X11)DOHC; 1988-08-01~ |
09206-08001-000 |
from US $1.60 |
||
|
8
|
8
09103-06132-000 BOLT(6X41)DOHC; 1988-08-01~ |
09103-06132-000 |
US $1.28 |
||
|
9
|
9
11141-86502-000 GASKET,CYL HEADGasket, cylinder head DOHC; 1988-08-01~ |
11141-86502-000 |
US $111.20 |
||
|
10
|
10
11118-86501-000
WASHER,CYLINDER HEAD BOLT
DOHC; 1988-08-01~1992-12-01 |
11118-86501-000 |
— | ||
|
11
|
11
11117-73G00-000 BOLT,CYLINDER HEADDOHC; 1988-08-01~ |
11117-73G00-000 |
US $4.32 |
||
|
12
|
12
04211-13189-000 PINDOHC; 1988-08-01~ |
04211-13189-000 |
from US $1.22 |
||
|
13
|
13
11139-86500-000 SEAL,CYLINDER HEAD SIDEDOHC; 1988-08-01~ |
11139-86500-000 |
US $1.82 |
||
|
14
|
14
11170-64B01-000
カバー,シリンダヘッド
DOHC; 1988-08-01~1990-06-01 |
11170-64B01-000 |
— | ||
|
14
|
14
11170-64B10-000
カバー,シリンダヘッド
DOHC; 1990-06-01~1991-06-01 |
11170-64B10-000 |
— | ||
| replacement | |||||
|
14
|
14
11170-64B90-000
Cover,cylinder head
DOHC; 1990-06-01~1991-06-01 |
11170-64B90-000 |
— | ||
|
14
|
14
11170-64B20-000
カバー,シリンダヘッド
DOHC; 1991-07-01~ |
11170-64B20-000 |
— | ||
|
15
|
15
11189-86500-000
GASKET,CYL HEAD COVER
DOHC; 1988-08-01~ |
11189-86500-000 |
— | ||
|
16
|
16
09103-06185-000 BOLT(6X20)Bolt (6x20) DOHC; 1988-08-01~ |
09103-06185-000 |
from US $1.12 |
||
|
17
|
17
01547-06303-000
Bolt
DOHC; 1988-08-01~ |
01547-06303-000 |
— | ||
| replacement | |||||
|
17
|
17
01547-0630B-000 BOLTBolt DOHC; 1988-08-01~ |
01547-0630B-000 |
from US $0.96 |
||
|
18
|
18
11172-86501-000
PLATE,BREATHER
DOHC; 1988-08-01~ |
11172-86501-000 |
— | ||
|
19
|
19
02112-06083-000
Screw
DOHC; 1988-08-01~ |
02112-06083-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-0608A-000 SCREWDOHC; 1988-08-01~ |
02112-0608A-000 |
from US $0.76 |
||
|
20
|
20
09482-00385-000
スパークプラグ,BP7ES
NGK; DOHC; 1988-08-01~1991-06-01 |
09482-00385-000 |
— | ||
|
20
|
20
09482-00434-000
スパークプラグ,W22EPーU
DENSO; DOHC; 1988-08-01~1991-06-01 |
09482-00434-000 |
— | ||
|
20
|
20
09482-00495-000
スパークプラグ,BPR7ES
NGK; DOHC; 1991-07-01~ |
09482-00495-000 |
— | ||
|
20
|
20
09482-00498-000
スパークプラグ,W22EPRーU
DENSO; DOHC; 1991-07-01~ |
09482-00498-000 |
— | ||
|
21
|
21
16920-86502-000
Cap, oil filler
DOHC; 1988-08-01~ |
16920-86502-000 |
— | ||
| replacements | |||||
|
21
|
21
16920-83G00-000
Cap,oil filler
DOHC; 1988-08-01~ |
16920-83G00-000 |
— | ||
|
21
|
21
16920-83G01-000
CAP OIL FILLER
DOHC; 1988-08-01~ |
16920-83G01-000 |
— | ||
|
22
|
22
17690-64B02-000
Case comp,thermostat
DOHC; 1991-07-01~ |
17690-64B02-000 |
— | ||
|
22
|
22
17690-64X00-000
CASE,THERMOSTAT
DOHC:2WD; 1988-08-01~1989-05-01 |
17690-64X00-000 |
— | ||
|
22
|
22
17690-64X01-000
ケース,サーモスタット
DOHC; 1989-05-01~1991-06-01 |
17690-64X01-000 |
— | ||
| replacements | |||||
|
22
|
22
17690-66B00-000
Case,thermostat
DOHC; 1989-05-01~1991-06-01 |
17690-66B00-000 |
— | ||
|
22
|
22
09251-09003-000 PLUGDOHC; 1989-05-01~1991-06-01 |
09251-09003-000 |
US $21.70 |
||
|
22
|
22
09401-13417-000 CLIPDOHC; 1989-05-01~1991-06-01 |
09401-13417-000 |
from US $1.60 |
||
|
22
|
22
09401-13413-000 ClipClip, air hose no.1 DOHC; 1989-05-01~1991-06-01 |
09401-13413-000 |
US $2.15 |
||
|
23
|
23
17699-64B00-000
GASKET,THERMOSTAT CASE
DOHC; 1988-08-01~ |
17699-64B00-000 |
— | ||
|
24
|
24
01421-08253-000
Stud bolt, no.2
DOHC; 1988-08-01~ |
01421-08253-000 |
— | ||
| replacement | |||||
|
24
|
24
01421-0825A-000 BOLT,STUDDOHC; 1988-08-01~ |
01421-0825A-000 |
from US $1.12 |
||
|
25
|
25
08316-10083-000
Nut
DOHC; 1988-08-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1008B-000 NUTDOHC; 1988-08-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
26
|
26
01550-08253-000
Bolt, rear
DOHC; 1988-08-01~ |
01550-08253-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0825B-000 BOLTDOHC; 1988-08-01~ |
01550-0825B-000 |
from US $0.96 |
||
|
26
|
26
01550-0825A-000 BOLTDOHC; 1988-08-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
27
|
27
13650-64B00-000
Sensor,water Temp
DOHC; 1988-08-01~ |
13650-64B00-000 |
— | ||
|
28
|
28
09168-12016-000 GASKET(12.2X21X0.8)DOHC; 1988-08-01~ |
09168-12016-000 |
from US $1.12 |
||
|
29
|
29
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature DENSO; DOHC; 1988-08-01~1991-06-01 |
34850-50A00-000 |
from US $40.80 |
||
|
29
|
29
34850-82012-000
Gauge assy, water temperature
DENSO; DOHC; 1991-07-01~ |
34850-82012-000 |
— | ||
| replacement | |||||
|
29
|
29
34850-14F00-000 GAUGE ASSY,WATER TEMPDENSO; DOHC; 1991-07-01~ |
34850-14F00-000 |
US $23.57 |
||
