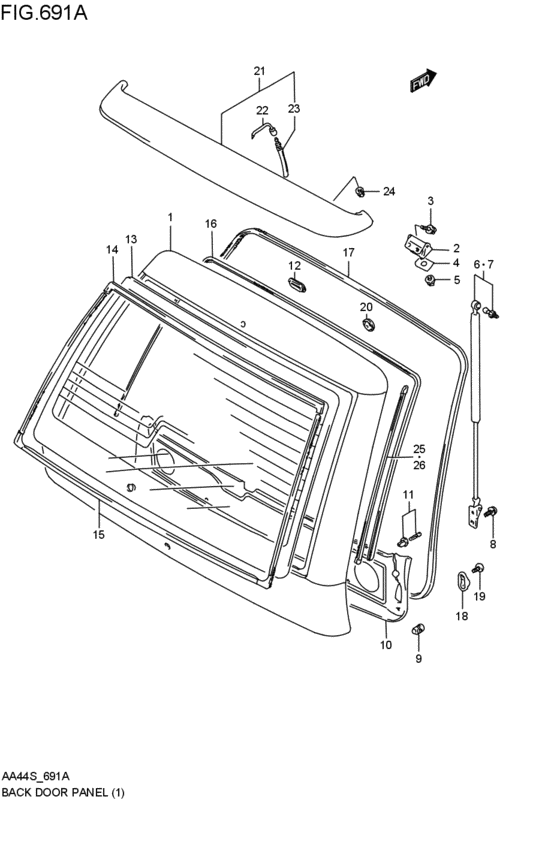

back door panel (3DR; 1988-08-01~1999-07-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 3AT
- type
- T6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-60B50-000
PANEL ASSY,BACK DOOR
3DR:T6; 1996-01-01~1999-07-01 |
69100-60B50-000 |
— | ||
|
2
|
2
69510-60B00-000 HINGE,BACK DOOR3DR; 1988-08-01~1999-07-01 |
69510-60B00-000 |
US $37.17 |
||
|
3
|
3
01570-06123-000
Bolt
3DR; 1988-08-01~1999-07-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01570-0612B-000 BOLTBolt, upper 3DR; 1988-08-01~1999-07-01 |
01570-0612B-000 |
US $0.80 |
||
|
3
|
3
01570-0612A-000 BOLTBolt 3DR; 1988-08-01~1999-07-01 |
01570-0612A-000 |
from US $0.80 |
||
|
4
|
4
69571-60B00-000 PACKING,BACK DOOR HINGE FEM3DR; 1988-08-01~1999-07-01 |
69571-60B00-000 |
US $3.64 |
||
|
5
|
5
08361-25083-000
Nut
3DR; 1988-08-01~1999-07-01 |
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT3DR; 1988-08-01~1999-07-01 |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81800-60810-000 BALANCER,BACK DR,R3DR; 1998-06-01~1999-07-01 |
81800-60810-000 |
US $86.85 |
||
|
6
|
6
81800-62831-000
BALANCER SET,BACK DR,R
3DR; 1988-08-01~1998-06-01 |
81800-62831-000 |
— | ||
|
7
|
7
81800-60820-000 BALANCER,BACK DR,L3DR; 1998-06-01~1999-07-01 |
81800-60820-000 |
US $86.85 |
||
|
7
|
7
81800-62841-000
BALANCER SET,BACK DR,L
3DR; 1988-08-01~1998-06-01 |
81800-62841-000 |
— | ||
|
8
|
8
01580-06163-000
Bolt
3DR; 1988-08-01~1999-07-01 |
01580-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
01580-0616A-000 BOLT3DR; 1988-08-01~1999-07-01 |
01580-0616A-000 |
from US $0.96 |
||
|
9
|
9
76683-70C00-000 CUSHION,TRUNK LID/BACK DR3DR; 1988-08-01~1999-07-01 |
76683-70C00-000 |
US $1.92 |
||
|
10
|
10
83770-60B10-5ES
TRIM,BACK DOOR
ブラック; 3DR:T6; 1996-01-01~1999-07-01 |
83770-60B10-5ES |
— | ||
|
11
|
11
09409-07308-5PK CLIP(BLACK)ブラック; 3DR:T6; 1996-01-01~1999-07-01 |
09409-07308-5PK |
from US $0.95 |
||
|
12
|
12
83917-82010-5PK CAP,BACK DR HOLEブラック; 3DR; 1988-08-01~1999-07-01 |
83917-82010-5PK |
US $1.60 |
||
|
13
|
13
84571-60B80-000
GLASS,BACK DR WINDOW
グリーン/ネッセン CENTRAL; 3DR:T6; 1996-01-01~1999-07-01 |
84571-60B80-000 |
— | ||
|
14
|
14
84623-60B00-000
MOLDING,BACK WDO UPR
3DR; 1988-08-01~1999-07-01 |
84623-60B00-000 |
— | ||
|
15
|
15
84625-60B01-000
MOLDING,BACK WDO LWR
3DR; 1988-08-01~1999-07-01 |
84625-60B01-000 |
— | ||
|
16
|
16
84627-60B00-000 TRIM,BACK DOOR WINDOW3DR; 1988-08-01~1999-07-01 |
84627-60B00-000 |
US $44.53 |
||
|
17
|
17
84681-60B00-000 WEATHERSTRIP,BACK DR OPNG3DR; 1988-08-01~1999-07-01 |
84681-60B00-000 |
US $125.60 |
||
|
18
|
18
77121-60B00-000 STOPPER,BACK DOOR3DR; 1988-08-01~1999-07-01 |
77121-60B00-000 |
US $4.12 |
||
|
19
|
19
02142-06123-000
Screw
3DR; 1988-08-01~1999-07-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02142-0612B-000 SCREW3DR; 1988-08-01~1999-07-01 |
02142-0612B-000 |
from US $0.76 |
||
|
19
|
19
02142-0612A-000 SCREW3DR; 1988-08-01~1999-07-01 |
02142-0612A-000 |
from US $0.80 |
||
|
20
|
20
09250-20015-000 CAP(OD:28.5)Cap, air con harness 3DR; 1988-08-01~1999-07-01 |
09250-20015-000 |
from US $0.79 |
||
