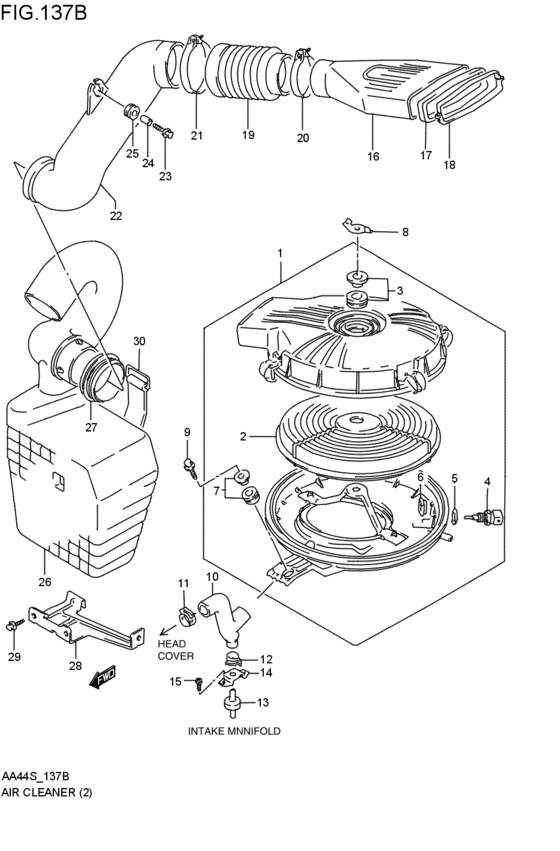

air cleaner (EPI; 1988-08-01~1999-07-01) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SA
- number of the gears
- 5MT
- type
- T4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-60E00-000
CLEANER ASSY,AIR
EPI; 1988-08-01~1999-07-01 |
13700-60E00-000 |
— | ||
|
2
|
2
13780-86000-000
ELEMENT,AIR CLEANER
EPI; 1988-08-01~1999-07-01 |
13780-86000-000 |
— | ||
|
3
|
3
13773-60ET0-000
GROMMET SET
EPI; 1988-08-01~1999-07-01 |
13773-60ET0-000 |
— | ||
|
4
|
4
13650-71C00-000
SENSOR,INLET AIR TEMP
EPI; 1988-08-01~1999-07-01 |
13650-71C00-000 |
— | ||
|
5
|
5
09168-12015-000
Gasket
EPI; 1988-08-01~1999-07-01 |
09168-12015-000 |
— | ||
| replacement | |||||
|
5
|
5
09168-12015-XC0 GASKET(12.2X21X0.8)EPI; 1988-08-01~1999-07-01 |
09168-12015-XC0 |
from US $5.87 |
||
|
6
|
6
13774-60B00-000
NUT
EPI; 1988-08-01~1999-07-01 |
13774-60B00-000 |
— | ||
|
7
|
7
13813-60ET0-000
GROMMET SET
EPI; 1988-08-01~1999-07-01 |
13813-60ET0-000 |
— | ||
|
8
|
8
09144-06006-000 NUTEPI; 1988-08-01~1999-07-01 |
09144-06006-000 |
US $46 |
||
|
9
|
9
01550-06203-000
Bolt
EPI; 1988-08-01~1999-07-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0620B-000 BOLTBolt, inspection cap EPI; 1988-08-01~1999-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
10
|
10
11191-60E00-000
HOSE,BREATHER
EPI; 1988-08-01~1999-07-01 |
11191-60E00-000 |
— | ||
|
11
|
11
09401-18404-000 CLIPEPI; 1988-08-01~1999-07-01 |
09401-18404-000 |
from US $1.33 |
||
|
12
|
12
09401-13414-000 CLIPClip, pcv hose EPI; 1988-08-01~1999-07-01 |
09401-13414-000 |
from US $1.60 |
||
|
13
|
13
18118-86500-000 VALVE,PCVEPI; 1988-08-01~1999-07-01 |
18118-86500-000 |
US $52.44 |
||
|
14
|
14
18128-71C00-000 BRACKET,PCV VALVEEPI; 1988-08-01~1999-07-01 |
18128-71C00-000 |
US $2.43 |
||
|
15
|
15
02112-35103-000
Screw 5x10
EPI; 1988-08-01~1999-07-01 |
02112-35103-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-3510B-000 SCREWEPI; 1988-08-01~1999-07-01 |
02112-3510B-000 |
from US $0.76 |
||
|
16
|
16
13790-60B01-000
NOSE,AIR CLEANER
EPI; 1988-08-01~1999-07-01 |
13790-60B01-000 |
— | ||
|
17
|
17
13799-60E00-000
CUSHION,NOSE
EPI; 1988-08-01~1999-07-01 |
13799-60E00-000 |
— | ||
|
18
|
18
13869-60B02-000
CLAMP,AIR SUCTION HOSE
EPI; 1988-08-01~1999-07-01 |
13869-60B02-000 |
— | ||
|
19
|
19
13881-63B10-000 HOSE,AIR CLEANER INLETEPI; 1988-08-01~1999-07-01 |
13881-63B10-000 |
US $68 |
||
|
20
|
20
09402-58208-000 CLAMPEPI; 1988-08-01~1999-07-01 |
09402-58208-000 |
from US $2.29 |
||
|
21
|
21
09402-72207-000
Clamp
EPI; 1988-08-01~1999-07-01 |
09402-72207-000 |
— | ||
| replacement | |||||
|
21
|
21
09402-72203-000 CLAMPClamp (case side) EPI; 1988-08-01~1999-07-01 |
09402-72203-000 |
from US $2.43 |
||
|
22
|
22
13860-60B01-000
PIPE,AIR SUCTION
EPI; 1988-08-01~1999-07-01 |
13860-60B01-000 |
— | ||
|
23
|
23
02162-06253-000
Bolt
EPI; 1988-08-01~1999-07-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
23
|
23
02162-0625A-000 SCREWEPI; 1988-08-01~1999-07-01 |
02162-0625A-000 |
from US $0.76 |
||
|
24
|
24
04211-09169-000 PINEPI; 1988-08-01~1999-07-01 |
04211-09169-000 |
from US $0.91 |
||
|
25
|
25
13861-60B01-000
CUSHION,AIR SUCTION PIPE
EPI; 1988-08-01~1999-07-01 |
13861-60B01-000 |
— | ||
|
26
|
26
13760-64B02-000 RESONATOR ASSY,AIR SUCTIONEPI; 1988-08-01~1999-07-01 |
13760-64B02-000 |
US $114.45 |
||
|
27
|
27
13766-64B00-000 GROMMET,RESONATOREPI; 1988-08-01~1999-07-01 |
13766-64B00-000 |
US $21.60 |
||
|
28
|
28
13765-64B02-000 BRACKET,RESONATOREPI; 1988-08-01~1999-07-01 |
13765-64B02-000 |
US $10.78 |
||
|
29
|
29
02162-06123-000
Bolt (6x12)
EPI; 1988-08-01~1999-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
02162-0612B-000 SCREWBolt EPI; 1988-08-01~1999-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
29
|
29
02162-0612A-000 SCREWBolt, bracket EPI; 1988-08-01~1999-07-01 |
02162-0612A-000 |
from US $0.80 |
||
|
30
|
30
09462-00015-000 BANDEPI; 1988-08-01~1999-07-01 |
09462-00015-000 |
from US $4.90 |
||
