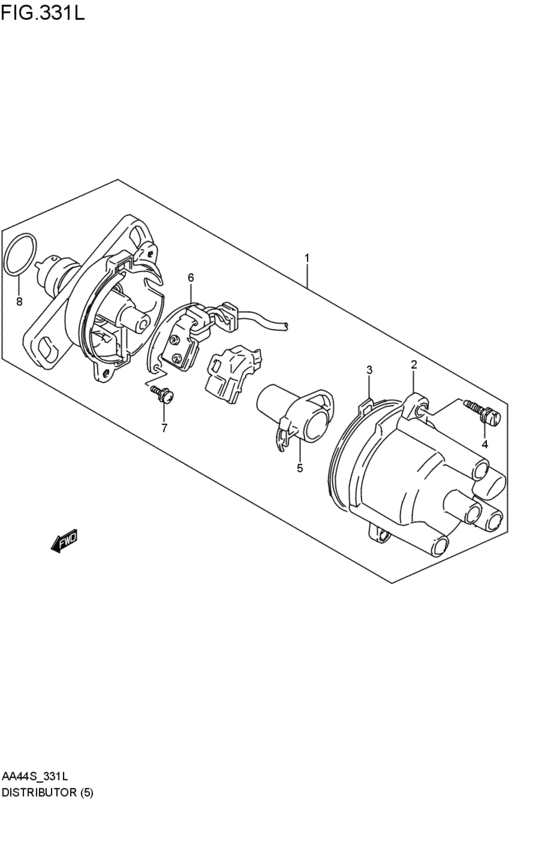

distributor (DENSO(ゴウキワケ); EPI; 1996-07-01~1999-07-01) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SA
- number of the gears
- 5MT
- type
- T4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-60B50-000
Distributor assy,with ca snsr
DENSO; EPI; 1996-07-01~1999-07-01 |
33100-60B50-000 |
— | ||
|
2
|
2
33321-85570-000 CAP,DISTRIBUTORDENSO; EPI; 1996-07-01~1999-07-01 |
33321-85570-000 |
US $43.20 |
||
|
3
|
3
33324-86510-000 PACKING,CAPDENSO; EPI; 1996-07-01~1999-07-01 |
33324-86510-000 |
from US $2.08 |
||
|
4
|
4
01580-05203-000
ボルト
DENSO; EPI; 1996-07-01~1999-07-01 |
01580-05203-000 |
— | ||
| replacement | |||||
|
4
|
4
01580-0520B-000 BOLTDENSO; EPI; 1996-07-01~1999-07-01 |
01580-0520B-000 |
from US $1.24 |
||
|
5
|
5
33310-60B50-000 ROTOR,DISTRIBUTORDENSO; EPI; 1996-07-01~1999-07-01 |
33310-60B50-000 |
US $15.42 |
||
|
6
|
6
33140-60B50-000 PICKUP COIL ASSYDENSO; EPI; 1996-07-01~1999-07-01 |
33140-60B50-000 |
US $163.20 |
||
|
7
|
7
02142-04103-000
Screw 4x10
DENSO; EPI; 1996-07-01~1999-07-01 |
02142-04103-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0410A-000 SCREWDENSO; EPI; 1996-07-01~1999-07-01 |
02142-0410A-000 |
from US $0.76 |
||
|
8
|
8
33278-60B40-000 O-RINGDENSO; EPI; 1996-07-01~1999-07-01 |
33278-60B40-000 |
from US $3.04 |
||
