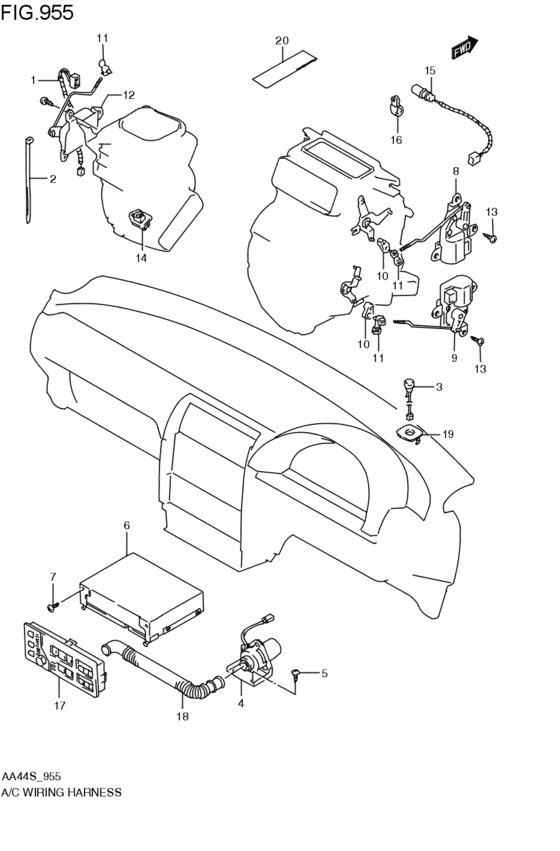

air-conditioner harness (オートマチックエアコン; SA; 1988-08-01~1994-10-01) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SA
- number of the gears
- 5MT
- type
- T4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95535-72C70-000
ハーネス,フレッシュ/リサーキュレーションアクチュエータ
SA; 1991-06-01~1994-10-01 |
95535-72C70-000 |
— | ||
|
2
|
2
09407-25402-000 CLAMP(L:250)Clamp, tilt sw SA; 1991-06-01~1994-10-01 |
09407-25402-000 |
from US $2.24 |
||
|
3
|
3
95642-62E50-000
センサ,サンライト
SA; 1991-06-01~1994-10-01 |
95642-62E50-000 |
— | ||
|
4
|
4
95656-62E01-000
ファン,ルームセンサ
SA; 1991-06-01~1994-10-01 |
95656-62E01-000 |
— | ||
| replacement | |||||
|
4
|
4
95656-62E02-000 FAN,ROOM SENSORSA; 1991-06-01~1994-10-01 |
95656-62E02-000 |
US $92.37 |
||
|
5
|
5
03142-05123-000
Screw
SA; 1991-06-01~1994-10-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0512A-000 SCREWScrew, belt cooling duct SA; 1991-06-01~1994-10-01 |
03141-0512A-000 |
from US $0.76 |
||
|
6
|
6
95610-62G00-000
Controller,auto air con
SA; 1991-06-01~1994-10-01 |
95610-62G00-000 |
— | ||
|
7
|
7
02142-05123-000
Screw 5x12
SA; 1991-06-01~1994-10-01 |
02142-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0512A-000 SCREWScrew, lower SA; 1991-06-01~1994-10-01 |
02142-0512A-000 |
from US $0.80 |
||
|
8
|
8
95653-62B50-000
アクチュエータ,モード
SA; 1991-06-01~1994-10-01 |
95653-62B50-000 |
— | ||
|
9
|
9
95651-62B50-000
アクチュエータ,テンパレチャ
SA; 1991-06-01~1994-10-01 |
95651-62B50-000 |
— | ||
|
10
|
10
95661-62B50-000
JOINT,ROD&LEVER
SA; 1991-06-01~1994-10-01 |
95661-62B50-000 |
— | ||
|
11
|
11
95664-62B50-000
CLAMP,ROD&JOINT
SA; 1991-06-01~1994-10-01 |
95664-62B50-000 |
— | ||
|
12
|
12
95652-62E50-000
アクチュエータ,フレッシュ/リサーキュレーション
SA; 1991-06-01~1994-10-01 |
95652-62E50-000 |
— | ||
|
13
|
13
03541-05123-000
Screw
SA; 1991-06-01~1994-10-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03541-0512B-000 SCREWSA; 1991-06-01~1994-10-01 |
03541-0512B-000 |
from US $0.76 |
||
|
14
|
14
95626-62F00-000
ドライバ,ブロワファン
SA; 1991-06-01~1994-10-01 |
95626-62F00-000 |
— | ||
|
15
|
15
95655-50A81-000
センサ,アウトドアテンパレチャ
SA; 1991-06-01~1994-10-01 |
95655-50A81-000 |
— | ||
| replacement | |||||
|
15
|
15
95640-64G40-000
SENSOR,OUT DOOR TEMP
SA; 1991-06-01~1994-10-01 |
95640-64G40-000 |
— | ||
|
16
|
16
95774-60C00-000 CLAMP,DELIVERY PIPESA; 1991-06-01~1994-10-01 |
95774-60C00-000 |
US $11.70 |
||
|
17
|
17
95611-62E51-000
スイッチ,オートエアコン
SA; 1991-06-01~1994-10-01 |
95611-62E51-000 |
— | ||
|
18
|
18
95646-62E50-000
ダクト,ルームテンパレチャセンサ
SA; 1991-06-01~1994-10-01 |
95646-62E50-000 |
— | ||
|
19
|
19
73831-62E00-5ES
カバー,インストゥルメントパネルメイン(ブラック)
ブラック; SA; 1991-06-01~1994-10-01 |
73831-62E00-5ES |
— | ||
|
20
|
20
36930-82010-000 COVER,HARNESSCover, roof wire SA; 1991-06-01~1994-10-01 |
36930-82010-000 |
from US $1.73 |
||
