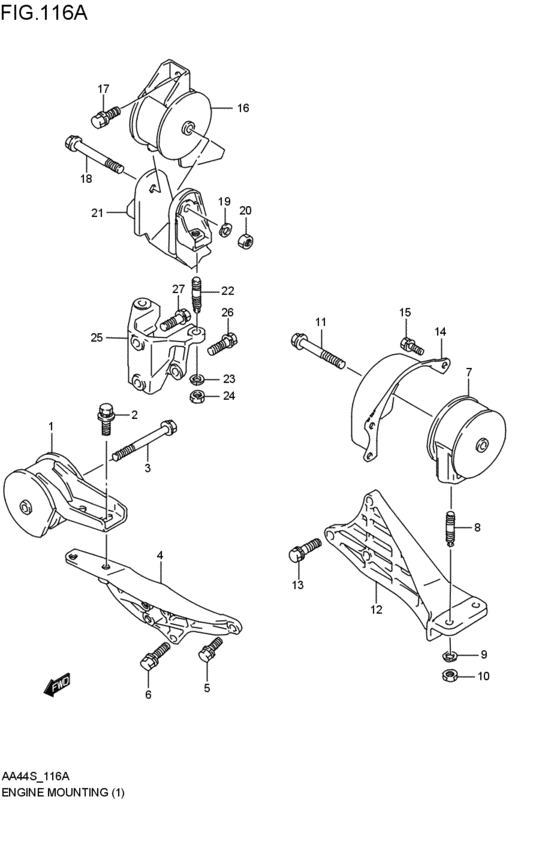

engine mounting (MT; 1988-08-01~1999-07-01) Diagram Suzuki CULTUS
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- LE
- number of the gears
- 5MT
- type
- T1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-60B10-000
MOUNTING,ENG,R
MT; 1988-08-01~1999-07-01 |
11610-60B10-000 |
— | ||
|
2
|
2
09118-10052-000 BOLT(10X30)MT; 1988-08-01~1999-07-01 |
09118-10052-000 |
US $1.44 |
||
|
3
|
3
01550-10853-000
Bolt
MT; 1988-08-01~1999-07-01 |
01550-10853-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-1085A-000 BOLTMT; 1988-08-01~1999-07-01 |
01550-1085A-000 |
US $1.76 |
||
|
4
|
4
11641-60B10-000 BRACKET,ENG MTG,RMT; 1988-08-01~1999-07-01 |
11641-60B10-000 |
US $71.39 |
||
| replacement | |||||
|
4
|
4
11641-61B10-000 BRACKET,ENG MTG,RMT; 1988-08-01~1999-07-01 |
11641-61B10-000 |
US $66.24 |
||
|
5
|
5
01570-10253-000
ボルト
MT; 1988-08-01~1999-07-01 |
01570-10253-000 |
— | ||
| replacement | |||||
|
5
|
5
01570-1025A-000 BoltMT; 1988-08-01~1999-07-01 |
01570-1025A-000 |
US $1.12 |
||
|
6
|
6
01570-10403-000
Bolt, upper
MT; 1988-08-01~1999-07-01 |
01570-10403-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-1040A-000 BoltMT; 1988-08-01~1999-07-01 |
01570-1040A-000 |
US $1.06 |
||
|
7
|
7
11620-60B11-000 MOUNTING,ENG,LMT; 1988-08-01~1999-07-01 |
11620-60B11-000 |
US $144.80 |
||
|
8
|
8
09108-10107-000 BOLT,STUDMT; 1988-08-01~1999-07-01 |
09108-10107-000 |
US $2.24 |
||
|
9
|
9
08321-01103-000
Washer
MT; 1988-08-01~1999-07-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0110B-000 WASHER,LOCKWasher, knuckle end MT; 1988-08-01~1999-07-01 |
08321-0110B-000 |
from US $0.80 |
||
|
9
|
9
08321-0110A-000 WASHER,LOCKMT; 1988-08-01~1999-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
10
|
10
08310-00103-000
Nut
MT; 1988-08-01~1999-07-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0010B-000 NUTMT; 1988-08-01~1999-07-01 |
08310-0010B-000 |
from US $0.80 |
||
|
10
|
10
08310-0010A-000 NUTMT; 1988-08-01~1999-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
11
|
11
09103-10214-000
ボルト,10X80
MT; 1988-08-01~1999-07-01 |
09103-10214-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-10341-000 BOLT(10X80)MT; 1988-08-01~1999-07-01 |
09103-10341-000 |
US $2.56 |
||
|
12
|
12
11651-60B10-000 BRACKET,ENG MTG,LMT; 1988-08-01~1999-07-01 |
11651-60B10-000 |
US $76.54 |
||
|
13
|
13
01570-10353-000
Bolt, lower
MT; 1988-08-01~1999-07-01 |
01570-10353-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-1035A-000 BoltMT; 1988-08-01~1999-07-01 |
01570-1035A-000 |
US $1.07 |
||
|
14
|
14
11671-60B10-000
BRACKET,ENG MTG BODY,L
MT; 1988-08-01~1999-07-01 |
11671-60B10-000 |
— | ||
|
15
|
15
01570-08253-000
Bolt, upper
MT; 1988-08-01~1999-07-01 |
01570-08253-000 |
— | ||
| replacements | |||||
|
15
|
15
01570-0825B-000 BOLTMT; 1988-08-01~1999-07-01 |
01570-0825B-000 |
US $1.12 |
||
|
15
|
15
01570-0825A-000 BOLTMT; 1988-08-01~1999-07-01 |
01570-0825A-000 |
from US $1.06 |
||
|
16
|
16
11710-63B10-000 MOUNTING,ENG RRMT; 1988-08-01~1999-07-01 |
11710-63B10-000 |
US $104.80 |
||
|
17
|
17
09118-10054-000 BOLT(10X30)MT; 1988-08-01~1999-07-01 |
09118-10054-000 |
US $1.68 |
||
|
18
|
18
09103-10214-000
ボルト,10X80
MT; 1988-08-01~1999-07-01 |
09103-10214-000 |
— | ||
| replacement | |||||
|
18
|
18
09103-10341-000 BOLT(10X80)MT; 1988-08-01~1999-07-01 |
09103-10341-000 |
US $2.56 |
||
|
19
|
19
08321-01103-000
Washer
MT; 1988-08-01~1999-07-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end MT; 1988-08-01~1999-07-01 |
08321-0110B-000 |
from US $0.80 |
||
|
19
|
19
08321-0110A-000 WASHER,LOCKMT; 1988-08-01~1999-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
20
|
20
08310-00103-000
Nut
MT; 1988-08-01~1999-07-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
20
|
20
08310-0010B-000 NUTMT; 1988-08-01~1999-07-01 |
08310-0010B-000 |
from US $0.80 |
||
|
20
|
20
08310-0010A-000 NUTMT; 1988-08-01~1999-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
21
|
21
11750-60B11-000 BRACKET,ENG RR MTG NO.2MT; 1988-08-01~1999-07-01 |
11750-60B11-000 |
US $47.20 |
||
|
22
|
22
09108-10107-000 BOLT,STUDMT; 1988-08-01~1991-12-01 |
09108-10107-000 |
US $2.24 |
||
|
23
|
23
08321-01103-000
Washer
MT; 1988-08-01~1999-07-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0110B-000 WASHER,LOCKWasher, knuckle end MT; 1988-08-01~1999-07-01 |
08321-0110B-000 |
from US $0.80 |
||
|
23
|
23
08321-0110A-000 WASHER,LOCKMT; 1988-08-01~1999-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
24
|
24
08310-00103-000
Nut
MT; 1988-08-01~1999-07-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0010B-000 NUTMT; 1988-08-01~1999-07-01 |
08310-0010B-000 |
from US $0.80 |
||
|
24
|
24
08310-0010A-000 NUTMT; 1988-08-01~1999-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
25
|
25
11741-60B10-000 BRACKET,ENG RR MTG NO.1MT; 1988-08-01~1999-07-01 |
11741-60B10-000 |
US $50.42 |
||
|
26
|
26
01570-10303-000
Bolt
MT; 1988-08-01~1999-07-01 |
01570-10303-000 |
— | ||
| replacement | |||||
|
26
|
26
01570-1030A-000 BoltMT; 1988-08-01~1999-07-01 |
01570-1030A-000 |
US $1.12 |
||
|
27
|
27
09117-10047-000
BOLT(10X30)
MT; 1988-08-01~1999-07-01 |
09117-10047-000 |
— | ||
