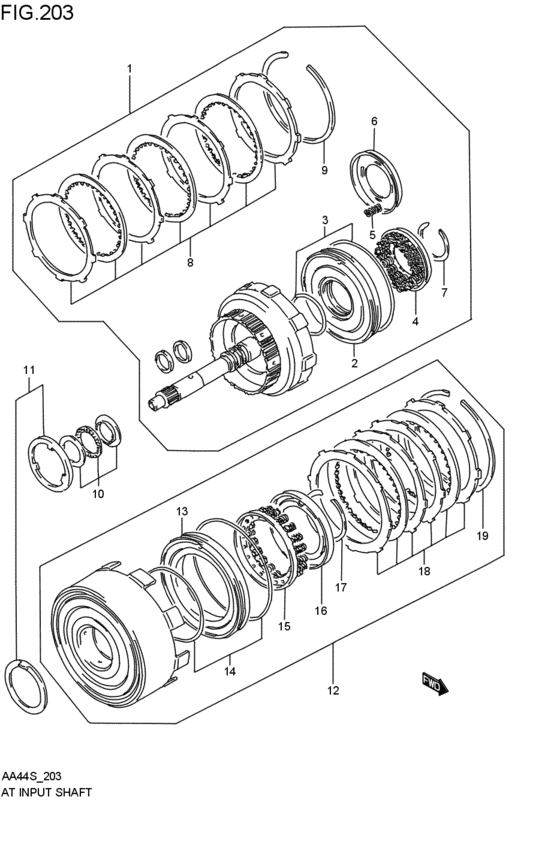

at - input shaft (AT; 1988-08-01~1999-07-01) Diagram Suzuki CULTUS
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- SE
- number of the gears
- 3AT
- type
- T1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-823T0-000
SHAFT SET,INPUT
AT; 1988-08-01~1999-07-01 |
24100-823T0-000 |
— | ||
|
2
|
2
26620-82301-000
ピストン,フォワードクラッチ
M.NO.9H3239マデ; AT; 1988-08-01~1999-07-01 |
26620-82301-000 |
— | ||
| replacements | |||||
|
2
|
2
26620-82302-000
PISTON,FWD CLUTCH
M.NO.9H3239マデ; AT; 1988-08-01~1999-07-01 |
26620-82302-000 |
— | ||
|
2
|
2
26650-82301-000
SPRING ASSY,FWD CL PSTN RTN
M.NO.9H3239マデ; AT; 1988-08-01~1999-07-01 |
26650-82301-000 |
— | ||
|
2
|
2
26620-82302-000
PISTON,FWD CLUTCH
M.NO.9H3240ヨリ; AT; 1988-08-01~1999-07-01 |
26620-82302-000 |
— | ||
|
3
|
3
26622-823T0-000 O-RING SET,FORWARD CLAT; 1988-08-01~1999-07-01 |
26622-823T0-000 |
US $21.34 |
||
|
4
|
4
26650-82301-000
SPRING ASSY,FWD CL PSTN RTN
M.NO.9H3240ヨリ; AT; 1988-08-01~1999-07-01 |
26650-82301-000 |
— | ||
|
5
|
5
26661-82300-000
スプリング,フォワードクラッチピストンリターン
M.NO.9H3239マデ; AT; 1988-08-01~1999-07-01 |
26661-82300-000 |
— | ||
|
6
|
6
26671-82300-000
シート,リターンスプリング
M.NO.9H3239マデ; AT; 1988-08-01~1999-07-01 |
26671-82300-000 |
— | ||
|
7
|
7
26692-82300-000 RING,FWD CL SPRING SEAT SNAPAT; 1988-08-01~1999-07-01 |
26692-82300-000 |
US $3.83 |
||
|
8
|
8
26621-823T0-000 PLATE SET,FORWARD CLUTCHAT; 1988-08-01~1999-07-01 |
26621-823T0-000 |
US $404.80 |
||
|
9
|
9
26691-82300-000 RING,CLUTCH PLATE SNAPAT; 1988-08-01~1999-07-01 |
26691-82300-000 |
US $10.52 |
||
|
10
|
10
24152-823T0-000
THRUST BEARING SET,NO.1
AT; 1988-08-01~1999-07-01 |
24152-823T0-000 |
— | ||
|
11
|
11
26651-62BT0-000 WASHER SET,DIRECT CLAT; 1988-08-01~1999-07-01 |
26651-62BT0-000 |
US $34.96 |
||
|
12
|
12
26630-52G00-000
CLUTCH ASSY,DIRECT
M.NO.7L01539ヨリ; AT; 1988-08-01~1999-07-01 |
26630-52G00-000 |
— | ||
|
12
|
12
26630-82301-000
Clutch assy,direct mult disc
M.NO 7L01538マデ; AT; 1988-08-01~1999-07-01 |
26630-82301-000 |
— | ||
|
13
|
13
26641-82300-000
PISTON,DIR CLUTCH OUTER
AT; 1988-08-01~1999-07-01 |
26641-82300-000 |
— | ||
|
14
|
14
26632-823T0-000
O-RING SET,DIRECT CL
AT; 1988-08-01~1999-07-01 |
26632-823T0-000 |
— | ||
|
15
|
15
26660-82300-000
SPRING ASSY,DIRECT CL RTN
AT; 1988-08-01~1999-07-01 |
26660-82300-000 |
— | ||
|
16
|
16
26673-82301-000
SEAT,DIRECT CL RTN SPR NO.2
AT; 1988-08-01~1999-07-01 |
26673-82301-000 |
— | ||
|
17
|
17
26693-82301-000
RING,DIRECT CLUTCH PLATE
AT; 1988-08-01~1999-07-01 |
26693-82301-000 |
— | ||
|
18
|
18
26631-52GT0-000 PLATE SET,DIRECT CLUTCHM.NO.7L01537ヨリ; AT; 1998-08-01~1999-07-01 |
26631-52GT0-000 |
US $362.48 |
||
|
18
|
18
26631-823T0-000
PLATE SET,DIRECT CLUTCH
M.NO 7L01538マデ; AT; 1988-08-01~1999-07-01 |
26631-823T0-000 |
— | ||
|
19
|
19
26691-82300-000 RING,CLUTCH PLATE SNAPAT; 1988-08-01~1999-07-01 |
26691-82300-000 |
US $10.52 |
||
