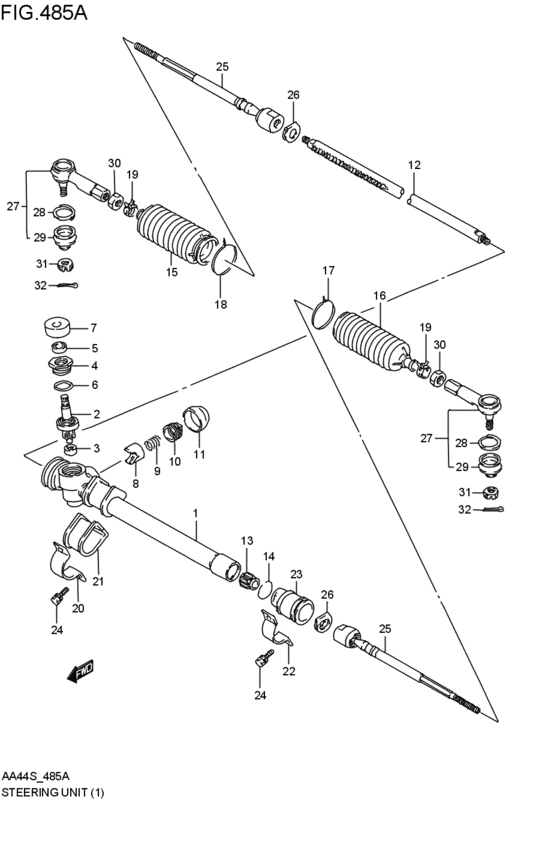

steering unit (U; 1988-08-01~1991-06-01) Diagram Suzuki CULTUS
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- U
- number of the gears
- 4MT
- type
- T1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48510-60B10-000 CASE,STRG GEAR,RU; 1988-08-01~1991-06-01 |
48510-60B10-000 |
US $222.40 |
||
|
2
|
2
48550-60B10-000 PINION,STEERING,RU; 1988-08-01~1991-06-01 |
48550-60B10-000 |
US $126.40 |
||
|
3
|
3
09263-10014-000 BEARING(10X14X10)Bearing, cl rlse low U; 1988-08-01~1991-06-01 |
09263-10014-000 |
from US $7.56 |
||
|
4
|
4
48562-82000-000
Plug, pinion bearing
U; 1988-08-01~1991-06-01 |
48562-82000-000 |
— | ||
| replacement | |||||
|
4
|
4
48562-82K00-000 PLUG,PINION BEARINGU; 1988-08-01~1991-06-01 |
48562-82K00-000 |
US $12.32 |
||
|
5
|
5
09283-15002-000 SEAL,OIL(15X25X5)U; 1988-08-01~1991-06-01 |
09283-15002-000 |
US $2.72 |
||
|
6
|
6
09280-34003-000 O RING(D:2,ID:34.1)U; 1988-08-01~1991-06-01 |
09280-34003-000 |
US $1.92 |
||
|
7
|
7
48451-60B00-000
PACKING,STEERING GEAR CASE
U; 1988-08-01~1991-06-01 |
48451-60B00-000 |
— | ||
|
8
|
8
48534-82100-000 PLUNGER,STEERING RACKU; 1988-08-01~1991-06-01 |
48534-82100-000 |
US $36.80 |
||
|
9
|
9
09440-19011-000 SPRINGU; 1988-08-01~1991-06-01 |
09440-19011-000 |
from US $1.49 |
||
|
10
|
10
48535-82000-000 SCREW,RACK DAMPERU; 1988-08-01~1991-06-01 |
48535-82000-000 |
US $15.04 |
||
|
11
|
11
48536-58000-000 CAP,RACK DAMPER SCREWU; 1988-08-01~1991-06-01 |
48536-58000-000 |
US $1.92 |
||
|
12
|
12
48531-70B01-000 RACK,STEERINGU; 1988-08-01~1991-06-01 |
48531-70B01-000 |
US $115.92 |
||
|
13
|
13
48541-53B01-000
ブッシング,ステアリングラック
U; 1988-08-01~1991-06-01 |
48541-53B01-000 |
— | ||
| replacement | |||||
|
13
|
13
48541-82H10-000 BUSHING,STEERING RACKU; 1988-08-01~1991-06-01 |
48541-82H10-000 |
from US $21.58 |
||
|
14
|
14
09381-33002-000 RING, SNAPU; 1988-08-01~1991-06-01 |
09381-33002-000 |
from US $1.28 |
||
|
15
|
15
48571-82000-000 BOOT,STEERING PINION SIDEU; 1988-08-01~1991-06-01 |
48571-82000-000 |
US $32 |
||
|
16
|
16
48572-60B10-000 BOOT,STEERING RACK SIDEU; 1988-08-01~1991-06-01 |
48572-60B10-000 |
US $28.80 |
||
|
17
|
17
09460-01023-000 WIREU; 1988-08-01~1991-06-01 |
09460-01023-000 |
US $2.56 |
||
|
18
|
18
09460-01023-000 WIREU; 1988-08-01~1991-06-01 |
09460-01023-000 |
US $2.56 |
||
|
19
|
19
09401-15407-000 CLIPBolt, 2nd air hose U; 1988-08-01~1991-06-01 |
09401-15407-000 |
from US $1.15 |
||
|
20
|
20
48521-60B00-000 BRACKET,STEERING PINION SIDEU; 1988-08-01~1991-06-01 |
48521-60B00-000 |
US $6.81 |
||
|
21
|
21
48525-60B00-000 MOUNT,STRG PINION SIDEU; 1988-08-01~1991-06-01 |
48525-60B00-000 |
US $15.52 |
||
|
22
|
22
48522-82000-000 BRACKET,STEERING RACK SIDEU; 1988-08-01~1991-06-01 |
48522-82000-000 |
US $17.60 |
||
|
23
|
23
48526-82000-000 MOUNT,STRG RACK SIDEU; 1988-08-01~1991-06-01 |
48526-82000-000 |
US $14.88 |
||
|
24
|
24
01570-08253-000
Bolt, upper
U; 1988-08-01~1991-06-01 |
01570-08253-000 |
— | ||
| replacements | |||||
|
24
|
24
01570-0825B-000 BoltU; 1988-08-01~1991-06-01 |
01570-0825B-000 |
from US $1.28 |
||
|
24
|
24
01570-0825A-000 BoltU; 1988-08-01~1991-06-01 |
01570-0825A-000 |
from US $1.06 |
||
|
25
|
25
48830-60B00-000 TIE-ROD,STEERINGU; 1988-08-01~1991-06-01 |
48830-60B00-000 |
US $80.22 |
||
|
26
|
26
48841-82001-000 WASHER,STEERING TIE ROD LOCKU; 1988-08-01~1991-06-01 |
48841-82001-000 |
US $2.56 |
||
|
27
|
27
48810-60B00-000
エンド,ステアリングタイロッド
U; 1988-08-01~1991-06-01 |
48810-60B00-000 |
— | ||
| replacement | |||||
|
27
|
27
48810-76G00-000 END,STEERING TIE-RODU; 1988-08-01~1991-06-01 |
48810-76G00-000 |
from US $60.37 |
||
|
28
|
28
09401-23402-000 CLIPU; 1988-08-01~1991-06-01 |
09401-23402-000 |
US $1.92 |
||
|
29
|
29
48819-60B00-000
BOOT SET
U; 1988-08-01~1991-06-01 |
48819-60B00-000 |
— | ||
| replacements | |||||
|
29
|
29
48819-60B01-000
Boot Set
U; 1988-08-01~1991-06-01 |
48819-60B01-000 |
— | ||
|
29
|
29
48800-60810-000 Boot SetU; 1988-08-01~1991-06-01 |
48800-60810-000 |
US $21.60 |
||
|
30
|
30
09140-12030-000 NUTNut, tie rod (rh thread) U; 1988-08-01~1991-06-01 |
09140-12030-000 |
from US $1.42 |
||
|
31
|
31
08314-40123-000
Nut
U; 1988-08-01~1991-06-01 |
08314-40123-000 |
— | ||
| replacement | |||||
|
31
|
31
08314-4012A-000 NUTU; 1988-08-01~1991-06-01 |
08314-4012A-000 |
from US $0.99 |
||
|
32
|
32
04111-30208-000
Cotter pin
U; 1988-08-01~1991-06-01 |
04111-30208-000 |
— | ||
| replacement | |||||
|
32
|
32
04111-3020A-000 PINU; 1988-08-01~1991-06-01 |
04111-3020A-000 |
from US $0.59 |
||
