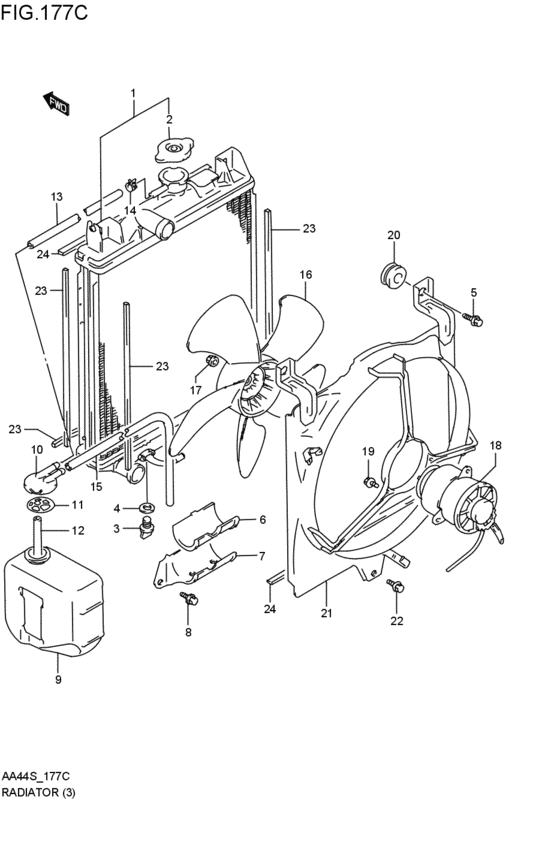

radiator (AT:(T4,T5,T6); 1991-06-01~1999-07-01) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- F
- number of the gears
- 3AT
- type
- T4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-60B32-000 RADIATOR ASSYAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17700-60B32-000 |
US $552.64 |
||
|
2
|
2
17920-60B21-000 CAP,RADIATOR 0.9AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17920-60B21-000 |
US $15.36 |
||
|
3
|
3
17751-82000-000 PLUG,RADIATOR DRAINAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17751-82000-000 |
US $4.75 |
||
|
4
|
4
17759-63210-000
GASKET
AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17759-63210-000 |
— | ||
| replacement | |||||
|
4
|
4
17759-63211-000 GasketAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17759-63211-000 |
US $1.18 |
||
|
5
|
5
09116-06157-000
New Genuine Part
AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
09116-06157-000 |
— | ||
| replacement | |||||
|
5
|
5
09112-06010-000 BOLT(6X30)AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
09112-06010-000 |
US $16.20 |
||
|
6
|
6
17813-60E00-000 RUBBER,RADIATOR SUPPORTAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17813-60E00-000 |
US $15.36 |
||
|
7
|
7
17811-63E00-000 BRACKET,RDTR SUPPORTAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17811-63E00-000 |
US $11.68 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
17931-60B00-000 TANK,WATER RESERVEAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17931-60B00-000 |
US $58.40 |
||
|
10
|
10
17932-60B10-000 CAP,WATER RESERVE TANKAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17932-60B10-000 |
from US $9.34 |
||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17933-60B00-000 |
from US $1.85 |
||
|
12
|
12
09352-70111-600 HOSE(7X11X600)L:600>125; AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
09352-70111-600 |
from US $6.84 |
||
|
13
|
13
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>370; AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
09352-70121-600 |
from US $4.84 |
||
|
14
|
14
09401-11407-000
CLIP
AT:(T4,T5,T6); 1991-06-01~1996-02-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
14
|
14
09401-11415-000 CLIPAT:(T4,T5,T6); 1991-06-01~1996-02-01 |
09401-11415-000 |
from US $1.06 |
||
|
15
|
15
09352-70111-600 HOSE(7X11X600)L:600>300; AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
09352-70111-600 |
from US $6.84 |
||
|
16
|
16
17111-63E00-000
FAN,ENG COOLING
AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17111-63E00-000 |
— | ||
|
17
|
17
08316-10053-000
Nut
AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
08316-10053-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1005A-000 NUTAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
08316-1005A-000 |
from US $0.77 |
||
|
18
|
18
17120-71C10-000 MOTOR,COOLING FANAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17120-71C10-000 |
US $397.44 |
||
|
19
|
19
17129-50F10-000 SCREW,FAN MOTORScrew AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17129-50F10-000 |
US $1.60 |
||
|
20
|
20
17130-63E00-000 GROMMETAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17130-63E00-000 |
US $7.32 |
||
|
21
|
21
17760-63E01-000
SHROUD
AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17760-63E01-000 |
— | ||
| replacement | |||||
|
21
|
21
17760-63B10-000 SHROUD,ENGINE COOLING FANAT:(T4,T5,T6); 1991-06-01~1999-07-01 |
17760-63B10-000 |
US $131.01 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket AT:(T4,T5,T6); 1991-06-01~1999-07-01 |
02162-0612A-000 |
from US $0.80 |
||
|
23
|
23
17799-84010-000
SEAL,FAN SHROUD
L:360>325; AT:T4; 1991-06-01~1993-11-01 |
17799-84010-000 |
— | ||
|
24
|
24
17798-71C10-000
SEAL,RADIATOR NO.2
L:360>330; AT:T4; 1991-06-01~1993-11-01 |
17798-71C10-000 |
— | ||
