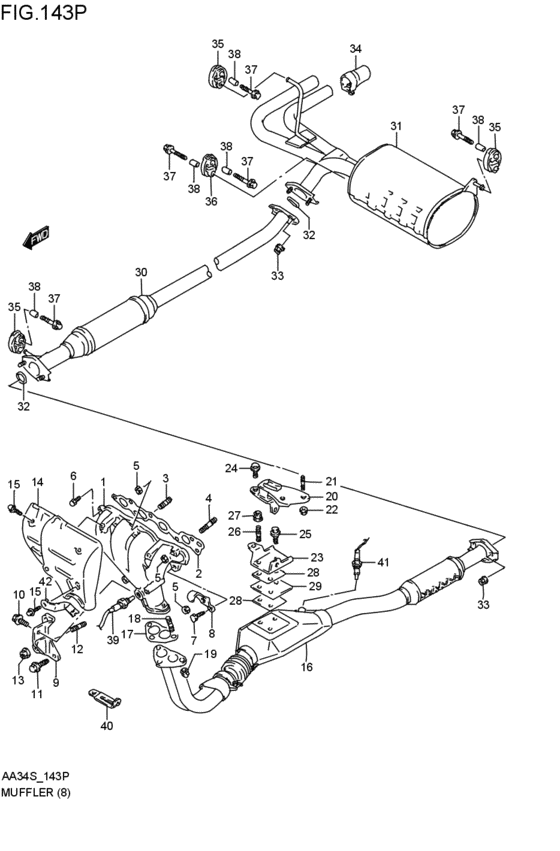

muffler (4WD:DOHC; 1989-09-01~) Diagram Suzuki CULTUS
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-86X50-000
MANIFOLD,EXH
4WD:DOHC; 1989-09-01~ |
14111-86X50-000 |
— | ||
|
2
|
2
14141-64B00-000
GASKET,EXH MANF
4WD:DOHC; 1989-09-01~ |
14141-64B00-000 |
— | ||
|
3
|
3
01421-08253-000
Stud bolt, no.2
4WD:DOHC; 1989-09-01~ |
01421-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0825A-000 BOLT,STUD4WD:DOHC; 1989-09-01~ |
01421-0825A-000 |
from US $1.12 |
||
|
4
|
4
01421-08353-000
Bolt, stud
4WD:DOHC; 1989-09-01~ |
01421-08353-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0835A-000 BOLT,STUDStud bolt (8x35) 4WD:DOHC; 1989-09-01~ |
01421-0835A-000 |
from US $1.44 |
||
|
5
|
5
08310-00083-000
Nut
4WD:DOHC; 1989-09-01~ |
08310-00083-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0008B-000 NUT4WD:DOHC; 1989-09-01~ |
08310-0008B-000 |
from US $0.80 |
||
|
5
|
5
08310-0008A-000 NUTNut, bead stopper 4WD:DOHC; 1989-09-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
01500-08253-000
Bolt
4WD:DOHC; 1989-09-01~ |
01500-08253-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0825A-000 Bolt4WD:DOHC; 1989-09-01~ |
01500-0825A-000 |
from US $0.91 |
||
|
7
|
7
01500-08303-000
Bolt
4WD:DOHC; 1989-09-01~ |
01500-08303-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0830B-000 Bolt4WD:DOHC; 1989-09-01~ |
01500-0830B-000 |
from US $0.96 |
||
|
8
|
8
11852-86500-000
フック,エンジン
4WD:DOHC; 1989-09-01~ |
11852-86500-000 |
— | ||
|
9
|
9
14270-64B00-000
ブラケット,エキゾーストマニホールド
4WD:DOHC; 1989-09-01~ |
14270-64B00-000 |
— | ||
|
10
|
10
01550-10203-000
Bolt
4WD:DOHC; 1989-09-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1020A-000 BOLTBolt, bal sprocket 4WD:DOHC; 1989-09-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
11
|
11
09103-10269-000
BOLT(10X30)
4WD:DOHC; 1989-09-01~ |
09103-10269-000 |
— | ||
|
12
|
12
01421-10253-000
Stud bolt
4WD:DOHC; 1989-12-01~ |
01421-10253-000 |
— | ||
| replacement | |||||
|
12
|
12
01421-1025B-000 BOLT,STUD4WD:DOHC; 1989-12-01~ |
01421-1025B-000 |
from US $5.07 |
||
|
12
|
12
01421-10353-000
Stud 10x1.25x55
4WD:DOHC; 1989-09-01~1989-12-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
12
|
12
01421-1035A-000 BOLT,STUD4WD:DOHC; 1989-09-01~1989-12-01 |
01421-1035A-000 |
from US $4.13 |
||
|
12
|
12
01421-1035B-000 BOLT,STUD4WD:DOHC; 1989-09-01~1989-12-01 |
01421-1035B-000 |
US $17.30 |
||
|
13
|
13
08316-10103-000
Nut
4WD:DOHC; 1989-09-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUT4WD:DOHC; 1989-09-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
13830-86501-000
カバー,エキゾーストマニホールド
4WD:DOHC; 1989-09-01~ |
13830-86501-000 |
— | ||
| replacement | |||||
|
14
|
14
13830-8650V-000
Cover,warm air
4WD:DOHC; 1989-09-01~ |
13830-8650V-000 |
— | ||
|
15
|
15
09103-06168-000 BOLT(6X10)4WD:DOHC; 1989-09-01~ |
09103-06168-000 |
from US $1.01 |
||
|
16
|
16
14190-69B00-000
パイプ,エキゾースト
4WD:DOHC; 1989-09-01~ |
14190-69B00-000 |
— | ||
|
17
|
17
14182-64B02-000
ガスケット,エキゾーストパイプ
4WD:DOHC; 1989-09-01~ |
14182-64B02-000 |
— | ||
| replacement | |||||
|
17
|
17
14182-64B03-000 GASKET,EXH PIPE4WD:DOHC; 1989-09-01~ |
14182-64B03-000 |
US $11.89 |
||
|
18
|
18
01411-10253-000
New Genuine Part
4WD:DOHC; 1989-09-01~ |
01411-10253-000 |
— | ||
| replacement | |||||
|
18
|
18
01411-1025A-000 BOLT,STUD4WD:DOHC; 1989-09-01~ |
01411-1025A-000 |
US $1.60 |
||
|
19
|
19
09159-10016-000 NUTNut, clamp bracket 4WD:DOHC; 1989-09-01~ |
09159-10016-000 |
US $2.24 |
||
|
20
|
20
14280-67B01-000
Mounting,exh pipe
4WD:DOHC; 1989-09-01~ |
14280-67B01-000 |
— | ||
|
21
|
21
01411-10203-000
Bolt,stud
4WD:DOHC; 1989-09-01~1989-12-01 |
01411-10203-000 |
— | ||
| replacement | |||||
|
21
|
21
01411-1020A-000 BOLT,STUD4WD:DOHC; 1989-09-01~1989-12-01 |
01411-1020A-000 |
US $1.52 |
||
|
21
|
21
01411-10253-000
New Genuine Part
4WD:DOHC; 1989-12-01~ |
01411-10253-000 |
— | ||
| replacement | |||||
|
21
|
21
01411-1025A-000 BOLT,STUD4WD:DOHC; 1989-12-01~ |
01411-1025A-000 |
US $1.60 |
||
|
22
|
22
08316-10103-000
Nut
4WD:DOHC; 1989-09-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1010B-000 NUT4WD:DOHC; 1989-09-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
23
|
23
14284-67B03-000
ブラケット,エキゾーストパイプ,NO.1
4WD:DOHC; 1989-09-01~ |
14284-67B03-000 |
— | ||
|
24
|
24
01550-08163-000
Bolt, holder
4WD:DOHC; 1989-09-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0816B-000 BOLT4WD:DOHC; 1989-09-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
24
|
24
01550-0816A-000 BOLTBolt, rear 4WD:DOHC; 1989-09-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
25
|
25
01550-08163-000
Bolt, holder
4WD:DOHC; 1989-09-01~1989-11-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0816B-000 BOLT4WD:DOHC; 1989-09-01~1989-11-01 |
01550-0816B-000 |
from US $0.91 |
||
|
25
|
25
01550-0816A-000 BOLTBolt, rear 4WD:DOHC; 1989-09-01~1989-11-01 |
01550-0816A-000 |
from US $0.91 |
||
|
26
|
26
01411-08203-000
Stud 8x20
4WD:DOHC; 1989-09-01~1989-11-01 |
01411-08203-000 |
— | ||
| replacement | |||||
|
26
|
26
01411-0820B-000 BOLT,STUD4WD:DOHC; 1989-09-01~1989-11-01 |
01411-0820B-000 |
US $1.12 |
||
|
26
|
26
01411-08253-000
New Genuine Part
4WD:DOHC; 1989-11-01~ |
01411-08253-000 |
— | ||
| replacement | |||||
|
26
|
26
01411-0825A-000 BOLT,STUD4WD:DOHC; 1989-11-01~ |
01411-0825A-000 |
US $1.12 |
||
|
27
|
27
08316-10083-000
Nut
4WD:DOHC; 1989-09-01~1989-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1008B-000 NUT4WD:DOHC; 1989-09-01~1989-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
27
|
27
09159-08056-000 NUT4WD:DOHC; 1989-11-01~1989-12-01 |
09159-08056-000 |
US $1.28 |
||
|
27
|
27
09159-08083-000 NUT4WD:DOHC; 1989-12-01~ |
09159-08083-000 |
from US $1.28 |
||
|
28
|
28
14283-67B01-000
INSULATOR,EXH BRKT
4WD:DOHC; 1989-09-01~1989-11-01 |
14283-67B01-000 |
— | ||
|
29
|
29
14287-67B01-000
COVER,EXH PIPE MOUNTING
4WD:DOHC; 1989-09-01~ |
14287-67B01-000 |
— | ||
|
30
|
30
14260-67B01-000
PIPE,CENTER
4WD:DOHC; 1989-09-01~ |
14260-67B01-000 |
— | ||
|
31
|
31
14300-69B01-000
マフラ,エキゾースト
4WD:DOHC; 1989-09-01~ |
14300-69B01-000 |
— | ||
|
32
|
32
14182-60B00-000
GASKET,EXH PIPE
4WD:DOHC; 1989-09-01~ |
14182-60B00-000 |
— | ||
| replacement | |||||
|
32
|
32
14182-60B01-000 Gasket,exh Pipe4WD:DOHC; 1989-09-01~ |
14182-60B01-000 |
from US $3.34 |
||
|
33
|
33
09159-10049-000
Nut
4WD:DOHC; 1989-09-01~ |
09159-10049-000 |
— | ||
| replacement | |||||
|
33
|
33
09159-10102-000 NUT4WD:DOHC; 1989-09-01~ |
09159-10102-000 |
from US $0.97 |
||
|
34
|
34
14630-69B00-000
パイプ,テール
4WD:DOHC; 1989-09-01~ |
14630-69B00-000 |
— | ||
|
35
|
35
14281-78010-000
Mounting, muffler
4WD:DOHC; 1989-09-01~ |
14281-78010-000 |
— | ||
| replacement | |||||
|
35
|
35
14281-60G01-000 MOUNTING,MUF4WD:DOHC; 1989-09-01~ |
14281-60G01-000 |
US $9.28 |
||
|
36
|
36
14281-79010-000
Mounting, muffler
4WD:DOHC; 1989-09-01~ |
14281-79010-000 |
— | ||
| replacement | |||||
|
36
|
36
14281-60G11-000 MOUNTING,MUFFLER(HS60)4WD:DOHC; 1989-09-01~ |
14281-60G11-000 |
US $5.78 |
||
|
37
|
37
01550-08353-000
Bolt, rear
4WD:DOHC; 1989-09-01~ |
01550-08353-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-0835B-000 BOLT4WD:DOHC; 1989-09-01~ |
01550-0835B-000 |
from US $1.12 |
||
|
37
|
37
01550-0835A-000 BOLT4WD:DOHC; 1989-09-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
38
|
38
09180-08057-000
Spacer
4WD:DOHC; 1989-09-01~ |
09180-08057-000 |
— | ||
| replacement | |||||
|
38
|
38
09180-08227-000 SPACER(8.2X12.5X23.5)4WD:DOHC; 1989-09-01~ |
09180-08227-000 |
from US $1.92 |
||
|
39
|
39
18213-57B00-000
センサ,オキシジェン
DENSO; 4WD:DOHC; 1989-09-01~ |
18213-57B00-000 |
— | ||
| replacement | |||||
|
39
|
39
18213-57B01-000 SENSOR ASSY,OXYGENDENSO; 4WD:DOHC; 1989-09-01~ |
18213-57B01-000 |
US $253.92 |
||
|
40
|
40
09404-10417-000 CLAMP(L:97)4WD:DOHC; 1989-09-01~ |
09404-10417-000 |
from US $3.71 |
||
|
41
|
41
14810-60B01-000
Fuse,thermo
NGK; 4WD:DOHC; 1989-09-01~ |
14810-60B01-000 |
— | ||
| replacement | |||||
|
41
|
41
14810-60B0V-000
FUSE,THERMO
NGK; 4WD:DOHC; 1989-09-01~ |
14810-60B0V-000 |
— | ||
|
42
|
42
18230-69B01-000
Bracket comp,oxy sensor
4WD:DOHC; 1989-09-01~ |
18230-69B01-000 |
— | ||
