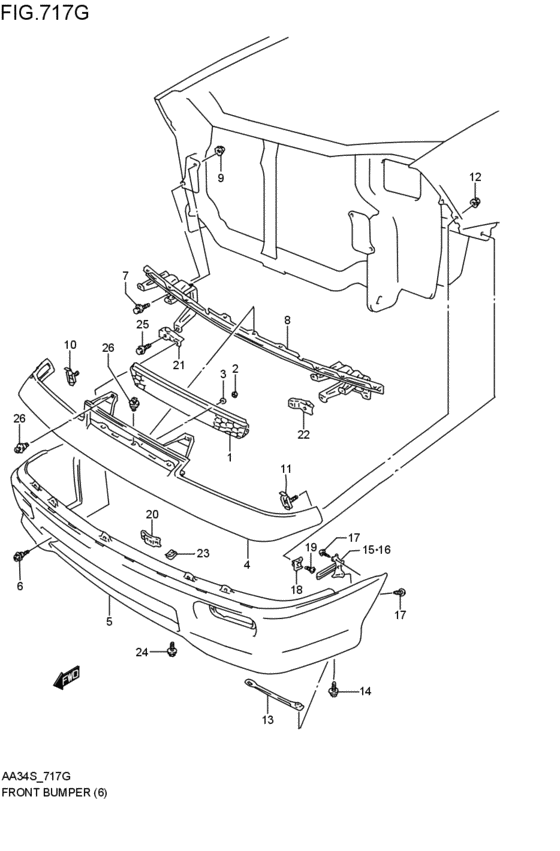

front bumper (3ドア:E(250001ヨリ); 3DR:E:4WD; 1993-11-01~) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71713-60B00-5PK
GRILLE,RDTR
ブラック; 3DR:E:4WD; 1993-11-01~ |
71713-60B00-5PK |
— | ||
|
2
|
2
09148-04010-000 NUTEcrou 3DR:E:4WD; 1993-11-01~1995-02-01 |
09148-04010-000 |
from US $1.12 |
||
|
3
|
3
09161-04008-000 WASHER(4X12X2)3DR:E:4WD; 1993-11-01~1995-02-01 |
09161-04008-000 |
US $16.20 |
||
|
4
|
4
71711-60B00-26U
バンパ,フロント,アッパ(ホワイト)
ホワイト; 3DR:E:4WD; 1993-11-01~ |
71711-60B00-26U |
— | ||
| replacements | |||||
|
4
|
4
71711-60B00-5PK BUMPER,FR UPPER(BLACK)ホワイト; 3DR:E:4WD; 1993-11-01~ |
71711-60B00-5PK |
US $398.24 |
||
|
4
|
4
71711-60B00-799 BUMPER,UPPER,FR(PRIMARY)ホワイト; 3DR:E:4WD; 1993-11-01~ |
71711-60B00-799 |
US $163.02 |
||
|
4
|
4
71711-60B00-799 BUMPER,UPPER,FR(PRIMARY)プライマリー; 3DR:E:4WD; 1993-11-01~ |
71711-60B00-799 |
US $163.02 |
||
|
5
|
5
71712-60E10-26U
バンパ,フロント,ロア(ホワイト)
ホワイト; 3DR:E:4WD; 1993-11-01~ |
71712-60E10-26U |
— | ||
| replacement | |||||
|
5
|
5
71712-60E10-799 BUMPER,FR LOWERホワイト; 3DR:E:4WD; 1993-11-01~ |
71712-60E10-799 |
US $443.52 |
||
|
5
|
5
71712-60E10-799 BUMPER,FR LOWERプライマリー; 3DR:E:4WD; 1993-11-01~ |
71712-60E10-799 |
US $443.52 |
||
|
6
|
6
09111-06061-000
Bolt,6x16.5
3DR:E:4WD; 1993-11-01~ |
09111-06061-000 |
— | ||
| replacement | |||||
|
6
|
6
09111-06094-000 BOLT(6X16.5)3DR:E:4WD; 1993-11-01~ |
09111-06094-000 |
from US $0.96 |
||
|
7
|
7
01550-08163-000
Bolt, holder
3DR:E:4WD; 1993-11-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0816B-000 BOLT3DR:E:4WD; 1993-11-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
7
|
7
01550-0816A-000 BOLTBolt, rear 3DR:E:4WD; 1993-11-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
71720-60B02-000 MEMBER,FR BUMPER3DR:E:4WD; 1993-11-01~ |
71720-60B02-000 |
US $87.95 |
||
|
9
|
9
08316-10083-000
Nut
3DR:E:4WD; 1993-11-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT3DR:E:4WD; 1993-11-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
71731-60B00-000 ATTACHMENT,FR BUMPER SIDE,R3DR:E:4WD; 1993-11-01~ |
71731-60B00-000 |
US $4.97 |
||
|
11
|
11
71736-60B00-000 ATTACHMENT,FR BUMPER SIDE,L3DR:E:4WD; 1993-11-01~ |
71736-60B00-000 |
US $4.97 |
||
|
12
|
12
08361-25063-000
Nut
3DR:E:4WD; 1993-11-01~ |
08361-25063-000 |
— | ||
| replacement | |||||
|
12
|
12
08361-2506A-000 NUT3DR:E:4WD; 1993-11-01~ |
08361-2506A-000 |
US $0.80 |
||
|
13
|
13
71732-60E00-000 STAY,FRONT BUMPER LOWER SIDE3DR:E:4WD; 1993-11-01~ |
71732-60E00-000 |
US $8.83 |
||
|
14
|
14
02142-06123-000
Screw
3DR:E:4WD; 1995-02-01~ |
02142-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02142-0612B-000 SCREW3DR:E:4WD; 1995-02-01~ |
02142-0612B-000 |
from US $0.76 |
||
|
14
|
14
02142-0612A-000 SCREW3DR:E:4WD; 1995-02-01~ |
02142-0612A-000 |
from US $0.80 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
3DR:E:4WD; 1993-11-01~1995-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt 3DR:E:4WD; 1993-11-01~1995-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket 3DR:E:4WD; 1993-11-01~1995-02-01 |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
71751-60B00-000 SLIDER,FRONT BUMPER SIDE,R3DR:E:4WD; 1993-11-01~ |
71751-60B00-000 |
US $12 |
||
|
16
|
16
71752-60B00-000 SLIDER,FRONT BUMPER SIDE,L3DR:E:4WD; 1993-11-01~ |
71752-60B00-000 |
US $12 |
||
|
17
|
17
03541-05123-000
Screw
3DR:E:4WD; 1993-11-01~ |
03541-05123-000 |
— | ||
| replacement | |||||
|
17
|
17
03541-0512B-000 SCREW3DR:E:4WD; 1993-11-01~ |
03541-0512B-000 |
from US $0.76 |
||
|
18
|
18
71753-60B00-000 HOLDER,BUMPER SIDE3DR:E:4WD; 1993-11-01~ |
71753-60B00-000 |
US $2.24 |
||
|
19
|
19
03512-05123-000
Screw
3DR:E:4WD; 1993-11-01~ |
03512-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03511-0512A-000 SCREW3DR:E:4WD; 1993-11-01~ |
03511-0512A-000 |
from US $0.80 |
||
|
20
|
20
71771-60A00-000 RETAINER,FR LICENSE PLATE3DR:E:4WD; 1993-11-01~ |
71771-60A00-000 |
US $4.16 |
||
|
21
|
21
71724-60E00-000 BRACKET,FR BUMPER,R3DR:E:4WD; 1993-11-01~ |
71724-60E00-000 |
US $6.26 |
||
|
22
|
22
71729-60E00-000 BRACKET,FR BUMPER,L3DR:E:4WD; 1993-11-01~ |
71729-60E00-000 |
US $6.26 |
||
|
23
|
23
71812-82010-000
Nut
3DR:E:4WD; 1993-11-01~ |
71812-82010-000 |
— | ||
| replacement | |||||
|
23
|
23
09148-06021-000 NUTNut, air cleaner 3DR:E:4WD; 1993-11-01~ |
09148-06021-000 |
from US $1.31 |
||
|
24
|
24
01550-06163-000
Bolt
3DR:E:4WD; 1993-11-01~ |
01550-06163-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0616B-000 BOLT3DR:E:4WD; 1993-11-01~ |
01550-0616B-000 |
from US $0.76 |
||
|
24
|
24
01550-0616A-000 BOLT3DR:E:4WD; 1993-11-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
25
|
25
01550-06163-000
Bolt
3DR:E:4WD; 1993-11-01~ |
01550-06163-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0616B-000 BOLT3DR:E:4WD; 1993-11-01~ |
01550-0616B-000 |
from US $0.76 |
||
|
25
|
25
01550-0616A-000 BOLT3DR:E:4WD; 1993-11-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
26
|
26
09409-07325-5PK CLIP(BLACK)ブラック; 3DR:E:4WD; 1993-11-01~ |
09409-07325-5PK |
from US $1.37 |
||
