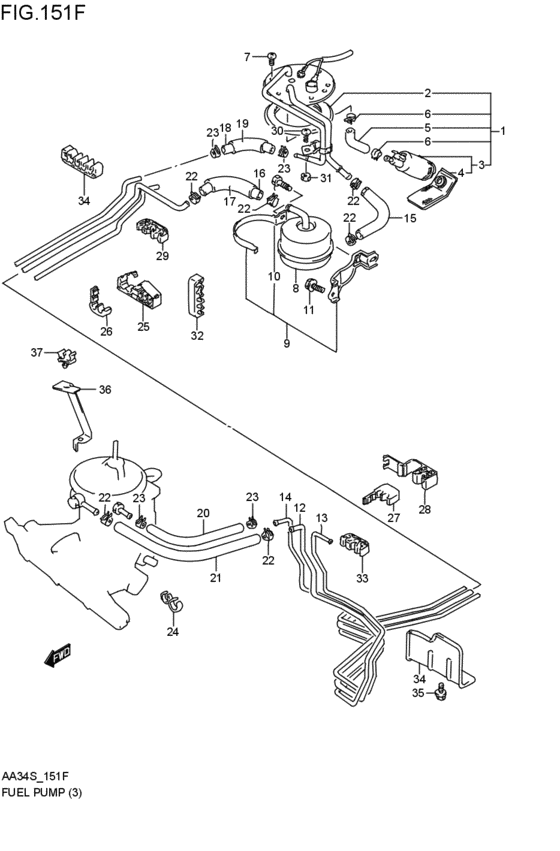

Fuel Pump (4WD:OHC; 1991-07-01~) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-67B00-000
ポンプアッシ,フューエル
DENSO; 4WD:OHC; 1991-07-01~ |
15100-67B00-000 |
— | ||
|
2
|
2
15111-85550-000 GASKET,FUEL PUMPDENSO; 4WD:OHC; 1991-07-01~ |
15111-85550-000 |
US $24.80 |
||
|
3
|
3
15110-68BT0-000
Pump set,fuel
DENSO; 4WD:OHC; 1991-07-01~ |
15110-68BT0-000 |
— | ||
|
4
|
4
15120-60B04-000
FILTER,FUEL
DENSO; 4WD:OHC; 1991-07-01~ |
15120-60B04-000 |
— | ||
|
5
|
5
15143-67B00-000
ホース,フューエル
DENSO; 4WD:OHC; 1991-07-01~ |
15143-67B00-000 |
— | ||
|
6
|
6
09401-13410-000
Clip
4WD:OHC; 1991-07-01~ |
09401-13410-000 |
— | ||
| replacement | |||||
|
6
|
6
09401-12414-000 CLIP4WD:OHC; 1991-07-01~ |
09401-12414-000 |
from US $1.60 |
||
|
7
|
7
09136-05045-000 SCREW(5X10)4WD:OHC; 1991-07-01~ |
09136-05045-000 |
US $0.96 |
||
|
8
|
8
15410-67B01-000 FILTER,FUEL4WD:OHC; 1991-07-01~ |
15410-67B01-000 |
US $30.18 |
||
|
9
|
9
15420-67BT0-000 BRACKET SET,FUEL FILTER4WD:OHC; 1991-07-01~ |
15420-67BT0-000 |
US $28.13 |
||
|
10
|
10
01500-06253-000 BoltBolt, fuel injection bracket 4WD:OHC; 1991-07-01~ |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
10
|
10
01500-0625A-000 BOLTBolt, gear shift arm 4WD:OHC; 1991-07-01~ |
01500-0625A-000 |
from US $0.80 |
||
|
11
|
11
01550-06123-000
Bolt
4WD:OHC; 1991-07-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp 4WD:OHC; 1991-07-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLT4WD:OHC; 1991-07-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
15811-69B02-000
パイプ,フューエル
4WD:OHC; 1991-07-01~ |
15811-69B02-000 |
— | ||
|
13
|
13
89482-69B01-000
パイプ,エバポレータメイン
4WD:OHC; 1991-07-01~ |
89482-69B01-000 |
— | ||
|
14
|
14
15861-69B03-000
パイプ,フューエルリターン
4WD:OHC; 1991-07-01~ |
15861-69B03-000 |
— | ||
|
15
|
15
09356-76145-600 HOSE(7.6X14X600)Hose (7.6x14x600) L:600>190; 4WD:OHC; 1991-07-01~ |
09356-76145-600 |
from US $22.63 |
||
|
16
|
16
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>120; 4WD:OHC; 1991-07-01~ |
09356-75147-600 |
US $51.68 |
||
|
17
|
17
17858-86501-000 PROTECTOR,HOSEL:415>75; 4WD:OHC; 1991-07-01~ |
17858-86501-000 |
US $9.60 |
||
|
18
|
18
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>155; 4WD:OHC; 1991-07-01~ |
09356-55117-600 |
US $69.60 |
||
|
19
|
19
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper L:600>75; 4WD:OHC; 1991-07-01~ |
09352-13162-600 |
from US $11.40 |
||
|
20
|
20
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>300; 4WD:OHC; 1991-07-01~ |
09356-55117-600 |
US $69.60 |
||
|
21
|
21
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>340; 4WD:OHC; 1991-07-01~ |
09356-75147-600 |
US $51.68 |
||
|
22
|
22
09401-13410-000
Clip
4WD:OHC; 1991-07-01~ |
09401-13410-000 |
— | ||
| replacement | |||||
|
22
|
22
09401-12414-000 CLIP4WD:OHC; 1991-07-01~ |
09401-12414-000 |
from US $1.60 |
||
|
23
|
23
09401-11411-000 CLIP4WD:OHC; 1991-07-01~ |
09401-11411-000 |
from US $6.38 |
||
|
24
|
24
09408-00121-000 CLAMP4WD:OHC; 1991-07-01~ |
09408-00121-000 |
US $1.52 |
||
|
25
|
25
15881-60B01-000 CLAMP,COMB PIPING4WD:OHC; 1991-07-01~ |
15881-60B01-000 |
US $7.30 |
||
|
26
|
26
15885-60B01-000
RETAINER,FUEL PIPE
4WD:OHC; 1991-07-01~ |
15885-60B01-000 |
— | ||
|
27
|
27
15886-60B00-000 RETAINER,FRONT4WD:OHC; 1991-07-01~ |
15886-60B00-000 |
US $3.05 |
||
|
28
|
28
15882-60B00-000 CLAMP,FUEL PIPING,FR4WD:OHC; 1991-07-01~ |
15882-60B00-000 |
US $2.58 |
||
|
29
|
29
15888-60E00-000 RETAINER,34WD:OHC; 1991-07-01~ |
15888-60E00-000 |
US $3.53 |
||
|
30
|
30
09136-05045-000 SCREW(5X10)4WD:OHC; 1991-07-01~ |
09136-05045-000 |
US $0.96 |
||
|
31
|
31
08310-00053-000
Nut
4WD:OHC; 1991-07-01~ |
08310-00053-000 |
— | ||
| replacement | |||||
|
31
|
31
08310-0005A-000 NUT4WD:OHC; 1991-07-01~ |
08310-0005A-000 |
from US $0.80 |
||
|
32
|
32
15887-60E00-000 RETAINER,54WD:OHC; 1991-07-01~ |
15887-60E00-000 |
US $3.28 |
||
|
33
|
33
15893-67B00-000 CLAMP,FUEL PIPE4WD:OHC; 1991-07-01~ |
15893-67B00-000 |
US $1.76 |
||
|
34
|
34
15895-67B00-000 COVER,FUEL PIPE4WD:OHC; 1991-07-01~ |
15895-67B00-000 |
US $5.70 |
||
|
35
|
35
01550-06103-000
Bolt, front
4WD:OHC; 1991-07-01~ |
01550-06103-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0610B-000 BoltBolt 4WD:OHC; 1991-07-01~ |
01550-0610B-000 |
from US $0.80 |
||
|
35
|
35
01550-0610A-000 BOLT4WD:OHC; 1991-07-01~ |
01550-0610A-000 |
from US $0.80 |
||
|
36
|
36
15839-63E00-000
ステー,フューエルホースクリップ
4WD:OHC; 1991-07-01~ |
15839-63E00-000 |
— | ||
|
37
|
37
09403-14306-000
CLAMP
4WD:OHC; 1991-07-01~ |
09403-14306-000 |
— | ||
