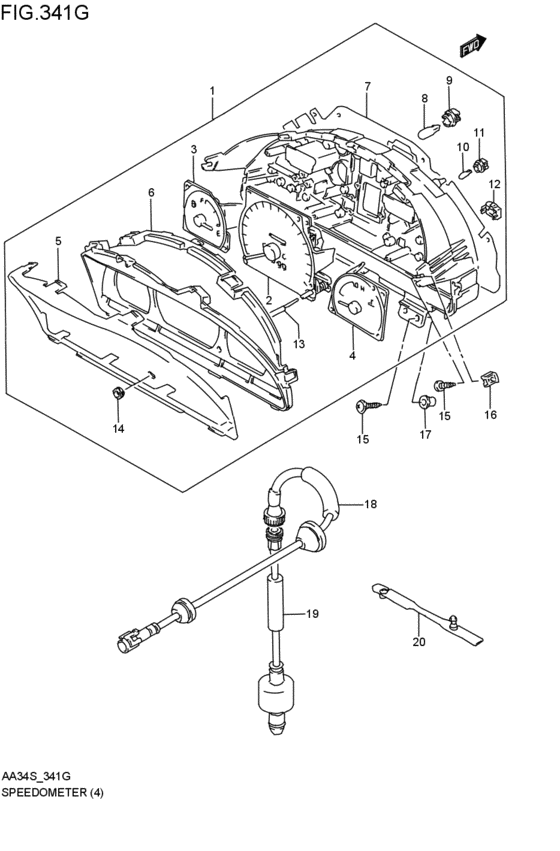

speed meter (250001ヨリ; 4WD:E; 1993-11-01~) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-64E62-000
スピードメータアッシ,コンビネーション
DENSO; 4WD:E; 1993-11-01~ |
34100-64E62-000 |
— | ||
|
2
|
2
34120-64E62-000
ボディセット,スピードメータ
DENSO; 4WD:E; 1993-11-01~ |
34120-64E62-000 |
— | ||
|
3
|
3
34320-60E10-000
BODY ASSY,FUEL METER
DENSO; 4WD:E; 1993-11-01~ |
34320-60E10-000 |
— | ||
|
4
|
4
34420-60E10-000
BODY ASSY,TEMP METER
DENSO; 4WD:E; 1993-11-01~ |
34420-60E10-000 |
— | ||
|
5
|
5
34112-60E10-000
GLASS,METER WINDOW
DENSO; 4WD:E; 1993-11-01~ |
34112-60E10-000 |
— | ||
|
6
|
6
34111-60E10-000
PLATE,METER WINDOW
DENSO; 4WD:E; 1993-11-01~ |
34111-60E10-000 |
— | ||
|
7
|
7
34152-63E81-000
プレート,プリンテッド
DENSO; 4WD:E; 1993-11-01~ |
34152-63E81-000 |
— | ||
|
8
|
8
09471-12131-000 BULB(12V3.4W G20)4WD:E; 1993-11-01~ |
09471-12131-000 |
US $40.50 |
||
|
9
|
9
34172-50E10-000 SOCKETDENSO; 4WD:E; 1993-11-01~ |
34172-50E10-000 |
US $1.60 |
||
|
10
|
10
09471-12055-000 BULB(14V1.4W,T5)4WD:E; 1993-11-01~ |
09471-12055-000 |
from US $2.40 |
||
|
11
|
11
34175-78900-000 SOCKETDENSO; 4WD:E; 1993-11-01~ |
34175-78900-000 |
US $1.52 |
||
|
12
|
12
34155-50E10-000 CIRCUIT,ABS WARNINGDENSO; 4WD:E; 1993-11-01~ |
34155-50E10-000 |
US $40.48 |
||
|
13
|
13
34141-60E10-000 KNOB,TRIP METERDENSO; 4WD:E; 1993-11-01~ |
34141-60E10-000 |
US $6.59 |
||
|
14
|
14
34145-60B00-000 GROMMETDENSO; 4WD:E; 1993-11-01~ |
34145-60B00-000 |
US $2.13 |
||
|
15
|
15
03541-05203-000
Screw
4WD:E; 1993-11-01~ |
03541-05203-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0520A-000 SCREW4WD:E; 1993-11-01~ |
03541-0520A-000 |
from US $0.76 |
||
|
16
|
16
09148-05020-000 NUT4WD:E; 1993-11-01~ |
09148-05020-000 |
from US $0.91 |
||
|
17
|
17
34955-60E00-000 BUSH4WD:E; 1993-11-01~ |
34955-60E00-000 |
US $2.40 |
||
|
18
|
18
34920-60B10-000
CABLE ASSY,SPEEDOMETER NO.1
4WD:E; 1993-11-01~ |
34920-60B10-000 |
— | ||
|
19
|
19
34930-60B10-000
CABLE ASSY,SPEEDOMETER NO.2
4WD:E; 1993-11-01~ |
34930-60B10-000 |
— | ||
|
20
|
20
09407-05409-000
CLAMP
4WD:E; 1993-11-01~ |
09407-05409-000 |
— | ||
