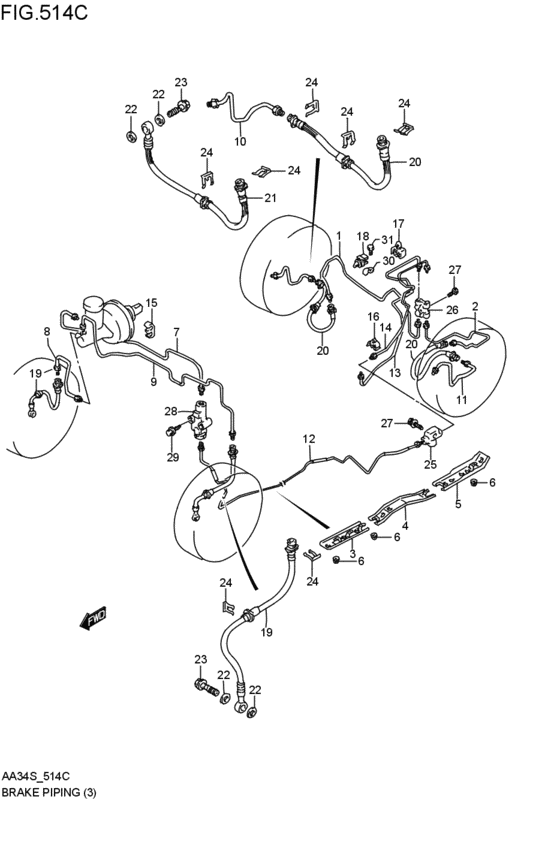

brakes piping (4リンクドウ:3ドア; 4WD:3DR; 1988-08-01~) Diagram Suzuki CULTUS
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51530-63B00-000 PIPE,JOINT TO RR BK HOSE R4WD:3DR; 1989-09-01~ |
51530-63B00-000 |
US $16.38 |
||
|
2
|
2
51540-63B01-000 PIPE,JOINT TO RR BK HOSE L4WD:3DR; 1989-09-01~ |
51540-63B01-000 |
US $15.16 |
||
|
3
|
3
51711-60B00-000 COVER,PIPE,FR4WD:3DR; 1989-09-01~ |
51711-60B00-000 |
US $12.88 |
||
|
4
|
4
51721-60B00-000 COVER,PIPE,CENTER4WD:3DR; 1989-09-01~ |
51721-60B00-000 |
US $52.80 |
||
|
5
|
5
51731-60B00-000
COVER,PIPE,RR
4WD:3DR; 1989-09-01~ |
51731-60B00-000 |
— | ||
|
6
|
6
51741-60B00-000 NUT,PIPE COVER4WD:3DR; 1989-09-01~ |
51741-60B00-000 |
US $1.60 |
||
|
7
|
7
51410-60B00-000
パイプ,マスタプライマリツーバルブ
4WD:3DR; 1989-09-01~ |
51410-60B00-000 |
— | ||
|
8
|
8
51420-60B00-000 PIPE,MA SEC TO FR BK HOSE R4WD:3DR; 1989-09-01~ |
51420-60B00-000 |
US $11.89 |
||
|
9
|
9
51430-60B00-000
PIPE,MA SEC TO FR BK HOSE L
4WD:3DR; 1989-09-01~ |
51430-60B00-000 |
— | ||
|
10
|
10
51470-63B00-000 PIPE,RR BK HOSE TO WHL CYL R4WD:3DR:(E,RE,HG); 1989-09-01~ |
51470-63B00-000 |
US $11.89 |
||
|
11
|
11
51490-63B00-000 PIPE,RR BK HOSE TO WHL CYL L4WD:3DR:(E,RE,HG); 1989-09-01~ |
51490-63B00-000 |
US $11.89 |
||
|
12
|
12
51510-63B00-000
パイプ,バルブツージョイント
4WD:3DR; 1989-09-01~ |
51510-63B00-000 |
— | ||
|
13
|
13
51550-63B00-000
パイプ,ジョイントツージョイント,ライト
4WD:3DR; 1989-09-01~ |
51550-63B00-000 |
— | ||
|
14
|
14
51560-63B00-000 PIPE,JOINT TO JOINT L4WD:3DR; 1989-09-01~ |
51560-63B00-000 |
US $14.54 |
||
|
15
|
15
51751-60B00-000 CLAMP,BRAKE PIPE4WD:3DR; 1989-09-01~ |
51751-60B00-000 |
US $1.60 |
||
|
16
|
16
51761-60B00-000 CLAMP,BRAKE PIPE4WD:3DR; 1989-09-01~ |
51761-60B00-000 |
US $1.92 |
||
|
17
|
17
51761-63B00-000 CLAMP,BK PIPE,SUB FRAME4WD:3DR; 1989-09-01~ |
51761-63B00-000 |
US $2.69 |
||
|
18
|
18
51771-63B00-000 CLAMP,BK PIPE,RR X MBR4WD:3DR; 1989-09-01~ |
51771-63B00-000 |
US $2.58 |
||
|
19
|
19
51580-63B00-000 HOSE,FR BRAKE FLEXIBLE4WD:3DR; 1989-09-01~ |
51580-63B00-000 |
US $55.94 |
||
|
20
|
20
51590-63B00-000 HOSE,RR BRAKE FLEXIBLE4WD:3DR:(E,RE,HG); 1989-09-01~ |
51590-63B00-000 |
US $50.42 |
||
|
22
|
22
09161-10009-000 WASHER(10X15X1.5)Lock washer 4WD:3DR:(E,RE,HG); 1989-09-01~ |
09161-10009-000 |
from US $1.06 |
||
|
23
|
23
09360-10026-000 Union bolt4WD:3DR:(E,GTI); 1989-09-01~ |
09360-10026-000 |
from US $1.85 |
||
|
24
|
24
09383-13001-000 E RING4WD:3DR; 1989-09-01~ |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
24
|
24
09383-13003-000 E-RING4WD:3DR; 1989-09-01~ |
09383-13003-000 |
from US $1.60 |
||
|
25
|
25
51620-60B00-000
JOINT,3WAY BRAKE
4WD:3DR; 1989-09-01~ |
51620-60B00-000 |
— | ||
|
26
|
26
51630-82040-000 JOINT,4WAY BRAKE4WD:3DR; 1989-09-01~ |
51630-82040-000 |
US $24 |
||
|
27
|
27
01550-06253-000
Bolt (6x25)
4WD:3DR; 1989-09-01~ |
01550-06253-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0625B-000 BOLTBolt, head cover 4WD:3DR; 1989-09-01~ |
01550-0625B-000 |
from US $0.91 |
||
|
27
|
27
01550-0625A-000 BOLTBolt 4WD:3DR; 1989-09-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
28
|
28
51910-50A12-000
VALVE ASSY,PROPORTIONING
4WD:3DR; 1990-06-01~ |
51910-50A12-000 |
— | ||
|
29
|
29
01550-06357-000 BOLTBolt, throttle lever no.2 4WD:3DR; 1989-09-01~ |
01550-06357-000 |
from US $0.91 |
||
|
30
|
30
09403-05302-000 CLAMPClamp 4WD:3DR; 1989-09-01~ |
09403-05302-000 |
US $1.28 |
||
|
31
|
31
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) 4WD:3DR; 1989-09-01~ |
09128-06044-000 |
from US $1.22 |
||
