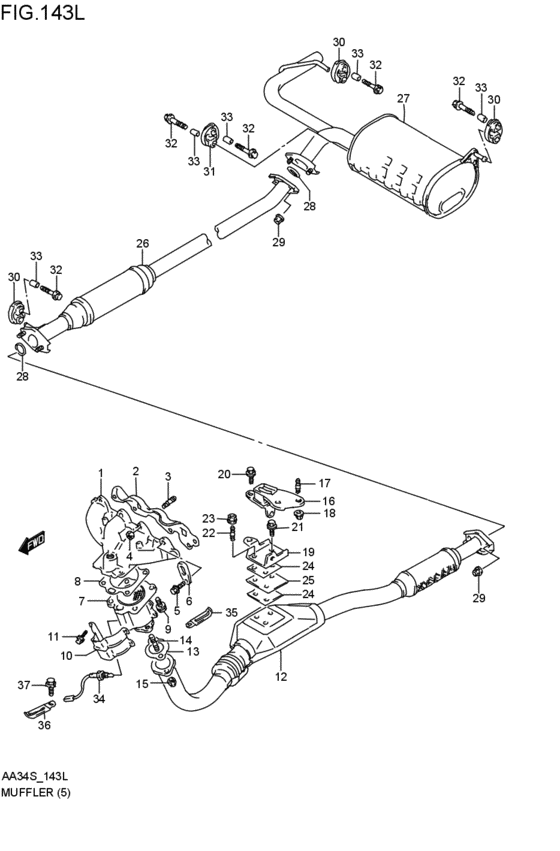

muffler (4WD:OHC; 1989-09-01~1990-06-01) Diagram Suzuki CULTUS
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-63B01-000
MANIFOLD,EXH
4WD:OHC; 1989-09-01~1990-05-01 |
14111-63B01-000 |
— | ||
|
2
|
2
14141-51G00-000 GASKET,EXH MANF NO,14WD:OHC; 1989-09-01~1990-05-01 |
14141-51G00-000 |
US $28.34 |
||
|
3
|
3
01411-08253-000
New Genuine Part
4WD:OHC; 1989-09-01~1990-05-01 |
01411-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0825A-000 BOLT,STUD4WD:OHC; 1989-09-01~1990-05-01 |
01411-0825A-000 |
US $1.12 |
||
|
4
|
4
08310-00083-000
Nut
4WD:OHC; 1989-09-01~1990-05-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUT4WD:OHC; 1989-09-01~1990-05-01 |
08310-0008B-000 |
from US $0.80 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper 4WD:OHC; 1989-09-01~1990-05-01 |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
01500-08253-000
Bolt
4WD:OHC; 1989-09-01~1990-05-01 |
01500-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0825A-000 Bolt4WD:OHC; 1989-09-01~1990-05-01 |
01500-0825A-000 |
from US $0.91 |
||
|
6
|
6
11851-62B00-000 HOOK4WD:OHC; 1989-09-01~1990-05-01 |
11851-62B00-000 |
US $5.02 |
||
|
7
|
7
14100-61821-000
ケースセット,キャタリスト
4WD:OHC; 1989-09-01~1990-05-01 |
14100-61821-000 |
— | ||
|
8
|
8
14181-60B40-000
Gasket,ctlst case
4WD:OHC; 1989-09-01~1990-05-01 |
14181-60B40-000 |
— | ||
|
9
|
9
09103-10020-000 BOLT(10X25)4WD:OHC; 1989-09-01~1990-05-01 |
09103-10020-000 |
US $6.88 |
||
|
10
|
10
14171-60B40-000
COVER,CTLST CASE
4WD:OHC; 1989-09-01~1990-05-01 |
14171-60B40-000 |
— | ||
|
11
|
11
01550-06107-000 BOLT4WD:OHC; 1989-09-01~1990-05-01 |
01550-06107-000 |
from US $0.80 |
||
|
12
|
12
14190-67B00-000
パイプ,エキゾースト
4WD:OHC; 1989-09-01~1990-05-01 |
14190-67B00-000 |
— | ||
|
13
|
13
14182-67B00-000 GASKET,EXH PIPE4WD:OHC; 1989-09-01~1990-05-01 |
14182-67B00-000 |
US $28.80 |
||
|
14
|
14
01411-10253-000
New Genuine Part
4WD:OHC; 1989-09-01~1990-05-01 |
01411-10253-000 |
— | ||
| replacement | |||||
|
14
|
14
01411-1025A-000 BOLT,STUD4WD:OHC; 1989-09-01~1990-05-01 |
01411-1025A-000 |
US $1.60 |
||
|
15
|
15
09159-10016-000 NUTNut, clamp bracket 4WD:OHC; 1989-09-01~1990-05-01 |
09159-10016-000 |
US $2.24 |
||
|
16
|
16
14280-67B01-000
Mounting,exh pipe
4WD:OHC; 1989-09-01~1990-05-01 |
14280-67B01-000 |
— | ||
|
17
|
17
01411-10203-000
Bolt,stud
4WD:OHC; 1989-09-01~1989-12-01 |
01411-10203-000 |
— | ||
| replacement | |||||
|
17
|
17
01411-1020A-000 BOLT,STUD4WD:OHC; 1989-09-01~1989-12-01 |
01411-1020A-000 |
US $1.52 |
||
|
17
|
17
01411-10253-000
New Genuine Part
4WD:OHC; 1989-12-01~1990-05-01 |
01411-10253-000 |
— | ||
| replacement | |||||
|
17
|
17
01411-1025A-000 BOLT,STUD4WD:OHC; 1989-12-01~1990-05-01 |
01411-1025A-000 |
US $1.60 |
||
|
18
|
18
08316-10103-000
Nut
4WD:OHC; 1989-09-01~1990-05-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1010B-000 NUT4WD:OHC; 1989-09-01~1990-05-01 |
08316-1010B-000 |
from US $0.80 |
||
|
19
|
19
14284-67B03-000
ブラケット,エキゾーストパイプ,NO.1
4WD:OHC; 1989-09-01~1990-05-01 |
14284-67B03-000 |
— | ||
|
20
|
20
01550-08163-000
Bolt, holder
4WD:OHC; 1989-09-01~1990-05-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0816B-000 BOLT4WD:OHC; 1989-09-01~1990-05-01 |
01550-0816B-000 |
from US $0.91 |
||
|
20
|
20
01550-0816A-000 BOLTBolt, rear 4WD:OHC; 1989-09-01~1990-05-01 |
01550-0816A-000 |
from US $0.91 |
||
|
21
|
21
01550-08163-000
Bolt, holder
4WD:OHC; 1989-09-01~1989-11-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0816B-000 BOLT4WD:OHC; 1989-09-01~1989-11-01 |
01550-0816B-000 |
from US $0.91 |
||
|
21
|
21
01550-0816A-000 BOLTBolt, rear 4WD:OHC; 1989-09-01~1989-11-01 |
01550-0816A-000 |
from US $0.91 |
||
|
22
|
22
01411-08203-000
Stud 8x20
4WD:OHC; 1989-09-01~1989-11-01 |
01411-08203-000 |
— | ||
| replacement | |||||
|
22
|
22
01411-0820B-000 BOLT,STUD4WD:OHC; 1989-09-01~1989-11-01 |
01411-0820B-000 |
US $1.12 |
||
|
22
|
22
01411-08253-000
New Genuine Part
4WD:OHC; 1989-11-01~1990-05-01 |
01411-08253-000 |
— | ||
| replacement | |||||
|
22
|
22
01411-0825A-000 BOLT,STUD4WD:OHC; 1989-11-01~1990-05-01 |
01411-0825A-000 |
US $1.12 |
||
|
23
|
23
08316-10083-000
Nut
4WD:OHC; 1989-09-01~1989-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1008B-000 NUT4WD:OHC; 1989-09-01~1989-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
23
|
23
09159-08056-000 NUT4WD:OHC; 1989-11-01~1989-12-01 |
09159-08056-000 |
US $1.28 |
||
|
23
|
23
09159-08083-000 NUT4WD:OHC; 1989-12-01~1990-05-01 |
09159-08083-000 |
from US $1.28 |
||
|
24
|
24
14283-67B01-000
INSULATOR,EXH BRKT
4WD:OHC; 1989-09-01~1989-11-01 |
14283-67B01-000 |
— | ||
|
25
|
25
14287-67B01-000
COVER,EXH PIPE MOUNTING
4WD:OHC; 1989-09-01~1990-05-01 |
14287-67B01-000 |
— | ||
|
26
|
26
14260-67B01-000
PIPE,CENTER
4WD:OHC; 1989-09-01~1990-05-01 |
14260-67B01-000 |
— | ||
|
27
|
27
14300-67E30-000
マフラ,エキゾースト
4WD:OHC; 1989-09-01~1990-05-01 |
14300-67E30-000 |
— | ||
|
28
|
28
14182-60B00-000
GASKET,EXH PIPE
4WD:OHC; 1989-09-01~1990-05-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
28
|
28
14182-60B01-000 Gasket,exh Pipe4WD:OHC; 1989-09-01~1990-05-01 |
14182-60B01-000 |
from US $3.34 |
||
|
29
|
29
09159-10049-000
Nut
4WD:OHC; 1989-09-01~1990-05-01 |
09159-10049-000 |
— | ||
| replacement | |||||
|
29
|
29
09159-10102-000 NUT4WD:OHC; 1989-09-01~1990-05-01 |
09159-10102-000 |
from US $0.97 |
||
|
30
|
30
14281-78010-000
Mounting, muffler
4WD:OHC; 1989-09-01~1990-05-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
30
|
30
14281-60G01-000 MOUNTING,MUF4WD:OHC; 1989-09-01~1990-05-01 |
14281-60G01-000 |
US $9.28 |
||
|
31
|
31
14281-79010-000
Mounting, muffler
4WD:OHC; 1989-09-01~1990-05-01 |
14281-79010-000 |
— | ||
| replacement | |||||
|
31
|
31
14281-60G11-000 MOUNTING,MUFFLER(HS60)4WD:OHC; 1989-09-01~1990-05-01 |
14281-60G11-000 |
US $5.78 |
||
|
32
|
32
01550-08353-000
Bolt, rear
4WD:OHC; 1989-09-01~1990-05-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0835B-000 BOLT4WD:OHC; 1989-09-01~1990-05-01 |
01550-0835B-000 |
from US $1.12 |
||
|
32
|
32
01550-0835A-000 BOLT4WD:OHC; 1989-09-01~1990-05-01 |
01550-0835A-000 |
from US $1.06 |
||
|
33
|
33
09180-08057-000
Spacer
4WD:OHC; 1989-09-01~1990-05-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
33
|
33
09180-08227-000 SPACER(8.2X12.5X23.5)4WD:OHC; 1989-09-01~1990-05-01 |
09180-08227-000 |
from US $1.92 |
||
|
34
|
34
14810-60B20-000
フューズ,キャタリストサーモ
NGK; 4WD:OHC; 1989-09-01~1990-05-01 |
14810-60B20-000 |
— | ||
|
35
|
35
09404-08420-000 CLAMP(L:120 T:1.0)4WD:OHC; 1989-09-01~1990-05-01 |
09404-08420-000 |
from US $2.08 |
||
|
36
|
36
09404-10205-000 CLAMP(L:82)Clamp, lead 4WD:OHC; 1989-09-01~1990-05-01 |
09404-10205-000 |
US $1.28 |
||
|
37
|
37
01550-10163-000
Bolt
4WD:OHC; 1989-09-01~1990-05-01 |
01550-10163-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-1016B-000 BoltPlug, oil gallery 4WD:OHC; 1989-09-01~1990-05-01 |
01550-1016B-000 |
from US $0.96 |
||
|
37
|
37
01550-1016A-000 BoltPlug, oil gallery 4WD:OHC; 1989-09-01~1990-05-01 |
01550-1016A-000 |
from US $4.96 |
||
