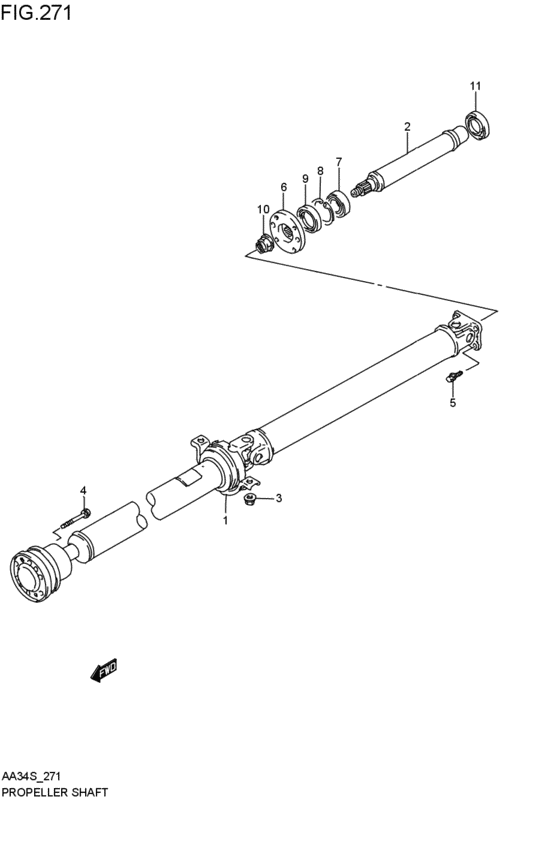

propeller shaft (4WD; 1989-09-01~) Diagram Suzuki CULTUS
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-74C02-000
シャフトアッシ,プロペラ
4WD; 1989-09-01~ |
27101-74C02-000 |
— | ||
| replacement | |||||
|
1
|
1
27101-74C04-000
SHAFT ASSY,PROPELLER
4WD; 1989-09-01~ |
27101-74C04-000 |
— | ||
|
2
|
2
27103-74C00-000
SHAFT,PROP THIRD
4WD; 1989-09-01~ |
27103-74C00-000 |
— | ||
|
3
|
3
08361-15103-000 NUT4WD; 1989-09-01~ |
08361-15103-000 |
US $14.40 |
||
|
4
|
4
07130-08503-000
Bolt
4WD; 1989-09-01~ |
07130-08503-000 |
— | ||
| replacement | |||||
|
4
|
4
07130-0850A-000 BOLT4WD; 1989-09-01~ |
07130-0850A-000 |
from US $1.60 |
||
|
5
|
5
09117-08095-000
Bolt (8x20)
4WD; 1989-09-01~ |
09117-08095-000 |
— | ||
| replacement | |||||
|
5
|
5
09117-08103-000 BOLT(8X18)4WD; 1989-09-01~ |
09117-08103-000 |
US $2.08 |
||
|
6
|
6
29291-74C11-000
Flange,3rd prop
4WD; 1989-09-01~ |
29291-74C11-000 |
— | ||
|
7
|
7
08134-62057-000 BEARING4WD; 1989-09-01~ |
08134-62057-000 |
US $24.29 |
||
|
8
|
8
08331-41526-000
Circlip, rear final bearing
4WD; 1989-09-01~ |
08331-41526-000 |
— | ||
| replacement | |||||
|
8
|
8
08331-41529-000 CIRCLIP4WD; 1989-09-01~ |
08331-41529-000 |
from US $6.07 |
||
|
9
|
9
09284-36001-000 SEAL,OIL(36X56X8)4WD; 1989-09-01~ |
09284-36001-000 |
US $15.38 |
||
|
10
|
10
09159-18014-000 NUT4WD; 1989-09-01~ |
09159-18014-000 |
US $82.10 |
||
|
11
|
11
09283-34010-000 SEAL,OIL(34X53X8)4WD; 1989-09-01~ |
09283-34010-000 |
US $13.98 |
||
