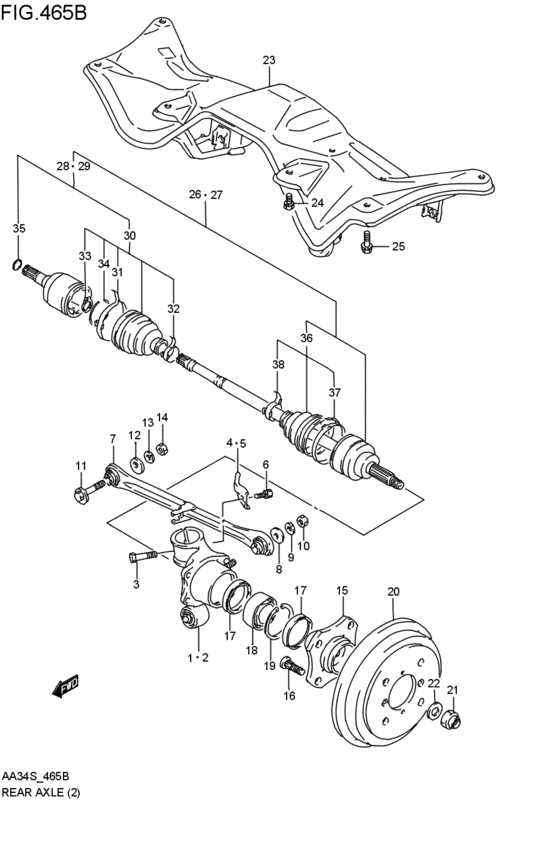

rear axle (4WD; 1988-09-01~) Diagram Suzuki CULTUS
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46110-63B50-000
KNUCKLE ASSY,RR SPNSN,R
4WD; 1988-09-01~ |
46110-63B50-000 |
— | ||
|
2
|
2
46150-63B50-000 KNUCKLE ASSY,RR SPNSN,L4WD; 1988-09-01~ |
46150-63B50-000 |
US $213.44 |
||
|
3
|
3
09117-10051-000 BOLT(10X42)4WD; 1988-09-01~ |
09117-10051-000 |
US $30.50 |
||
|
4
|
4
46114-60B00-000 BRACKET,RR BRAKE HOSE,R4WD; 1988-09-01~ |
46114-60B00-000 |
US $2.56 |
||
|
5
|
5
46115-60B00-000 BRACKET,RR BRAKE HOSE,L4WD; 1988-09-01~ |
46115-60B00-000 |
US $2.56 |
||
|
6
|
6
01570-08123-000
Bolt
4WD; 1988-09-01~ |
01570-08123-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-0812A-000 Bolt4WD; 1988-09-01~ |
01570-0812A-000 |
US $14.40 |
||
|
7
|
7
46300-63B10-000
ROD ASSY,REAR CONTROL
4WD; 1991-07-01~ |
46300-63B10-000 |
— | ||
|
8
|
8
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) 4WD; 1988-09-01~ |
09160-12073-000 |
from US $0.96 |
||
|
9
|
9
08321-01123-000
Washer
4WD; 1988-09-01~ |
08321-01123-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0112A-000 WASHER,LOCK4WD; 1988-09-01~ |
08321-0112A-000 |
from US $0.76 |
||
|
10
|
10
08316-10123-000
Nut
4WD; 1988-09-01~ |
08316-10123-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1012A-000 NUT4WD; 1988-09-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
11
|
11
46330-60E00-000
ボルト,リヤコントロールロッド
4WD; 1994-08-01~ |
46330-60E00-000 |
— | ||
| replacement | |||||
|
11
|
11
46330-60E01-000 BOLT,RR CONTROL ROD4WD; 1994-08-01~ |
46330-60E01-000 |
US $8.16 |
||
|
11
|
11
46331-60B00-000
ボルト,リヤコントロールロッド
4WD; 1988-09-01~1994-08-01 |
46331-60B00-000 |
— | ||
| replacements | |||||
|
11
|
11
46330-60E01-000 BOLT,RR CONTROL ROD4WD; 1988-09-01~1994-08-01 |
46330-60E01-000 |
US $8.16 |
||
|
11
|
11
46333-60E00-000 WASHER,CONTROL ROD INR4WD; 1988-09-01~1994-08-01 |
46333-60E00-000 |
US $1.92 |
||
|
12
|
12
46332-60B00-000
ワッシャ,コントロールロッド,インナ
4WD; 1988-09-01~1994-08-01 |
46332-60B00-000 |
— | ||
| replacement | |||||
|
12
|
12
46332-60B0V-000
WASHER,CONTROL ROD INR
4WD; 1988-09-01~1994-08-01 |
46332-60B0V-000 |
— | ||
|
12
|
12
46333-60E00-000 WASHER,CONTROL ROD INR4WD; 1994-08-01~ |
46333-60E00-000 |
US $1.92 |
||
|
13
|
13
08321-01123-000
Washer
4WD; 1988-09-01~ |
08321-01123-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-0112A-000 WASHER,LOCK4WD; 1988-09-01~ |
08321-0112A-000 |
from US $0.76 |
||
|
14
|
14
08316-10123-000
Nut
4WD; 1988-09-01~ |
08316-10123-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1012A-000 NUT4WD; 1988-09-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
15
|
15
43421-63B41-000
ハブ,リヤホイール
4WD; 1988-09-01~ |
43421-63B41-000 |
— | ||
| replacement | |||||
|
15
|
15
43420-63810-000 HUB SET,RR WHL4WD; 1988-09-01~ |
43420-63810-000 |
US $111.50 |
||
|
16
|
16
09119-12012-000 BOLT(12X38)4WD; 1988-09-01~ |
09119-12012-000 |
US $2.72 |
||
|
17
|
17
43431-60B20-000 SEAL,FR WHL BRG INNER OIL4WD; 1988-09-01~ |
43431-60B20-000 |
US $22.80 |
||
|
18
|
18
09267-35003-000 BEARING(35X61X31)4WD; 1988-09-01~ |
09267-35003-000 |
US $152 |
||
|
19
|
19
08331-41626-000
Ring 62mm
4WD; 1988-09-01~ |
08331-41626-000 |
— | ||
| replacement | |||||
|
19
|
19
08331-4162A-000 CIRCLIP4WD; 1988-09-01~ |
08331-4162A-000 |
from US $4.26 |
||
|
20
|
20
43511-63B00-000
ドラム,リヤブレーキ
4WD:(E,HG,RE); 1988-09-01~ |
43511-63B00-000 |
— | ||
| replacement | |||||
|
20
|
20
43511-63B10-000 DRUM,RR BRAKE4WD:(E,HG,RE); 1988-09-01~ |
43511-63B10-000 |
US $162.66 |
||
|
21
|
21
09159-18008-000 NUT4WD; 1988-09-01~ |
09159-18008-000 |
US $4.10 |
||
|
22
|
22
09160-18017-000 WASHER(18X35X4)4WD; 1988-09-01~ |
09160-18017-000 |
from US $0.91 |
||
|
23
|
23
46710-63B00-000
FRAME,RR SUSPENSION
4WD; 1988-09-01~ |
46710-63B00-000 |
— | ||
|
24
|
24
01570-10203-000
ボルト
4WD; 1988-09-01~ |
01570-10203-000 |
— | ||
| replacement | |||||
|
24
|
24
01570-1020A-000 Bolt4WD; 1988-09-01~ |
01570-1020A-000 |
US $0.96 |
||
|
25
|
25
09116-10119-000
BOLT(10X31)
4WD; 1988-09-01~ |
09116-10119-000 |
— | ||
|
26
|
26
44105-63BB0-000
Shaft assy,rear drive,r
4WD; 1988-09-01~ |
44105-63BB0-000 |
— | ||
|
27
|
27
44106-63BB0-000
SHAFT ASSY,REAR DRIVE,L
4WD; 1988-09-01~ |
44106-63BB0-000 |
— | ||
|
28
|
28
44114-63B91-000
JOINT ASSY,DIFF SIDE,R
4WD; 1988-09-01~ |
44114-63B91-000 |
— | ||
|
29
|
29
44115-63B91-000
ジョイントアッシ,ディファレンシャルサイド,レフト
4WD; 1988-09-01~ |
44115-63B91-000 |
— | ||
|
30
|
30
44119-63B90-000 BOOT SET,DIFF SIDE4WD; 1988-09-01~ |
44119-63B90-000 |
US $88.93 |
||
|
31
|
31
44121-86010-000
BAND,BOOT
4WD; 1988-09-01~ |
44121-86010-000 |
— | ||
|
32
|
32
44124-86011-000 BAND,BOOT4WD; 1988-09-01~ |
44124-86011-000 |
US $6.81 |
||
|
33
|
33
44111-78010-000 RING,SNAP4WD; 1988-09-01~ |
44111-78010-000 |
US $2.80 |
||
|
34
|
34
44112-78010-000 CIRCLIP4WD; 1988-09-01~ |
44112-78010-000 |
from US $5.26 |
||
|
35
|
35
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 4WD; 1988-09-01~ |
09381-24001-000 |
from US $1.60 |
||
|
36
|
36
44118-63B90-000
ブーツセット,ホイールサイド
4WD; 1988-09-01~ |
44118-63B90-000 |
— | ||
| replacements | |||||
|
36
|
36
44118-69D01-000
BOOT SET
4WD; 1988-09-01~ |
44118-69D01-000 |
— | ||
|
36
|
36
44118-69D02-000 BOOT SET4WD; 1988-09-01~ |
44118-69D02-000 |
US $145.92 |
||
|
37
|
37
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD; 1988-09-01~ |
44122-86010-000 |
from US $9.02 |
||
|
38
|
38
44124-86011-000 BAND,BOOT4WD; 1988-09-01~ |
44124-86011-000 |
US $6.81 |
||
