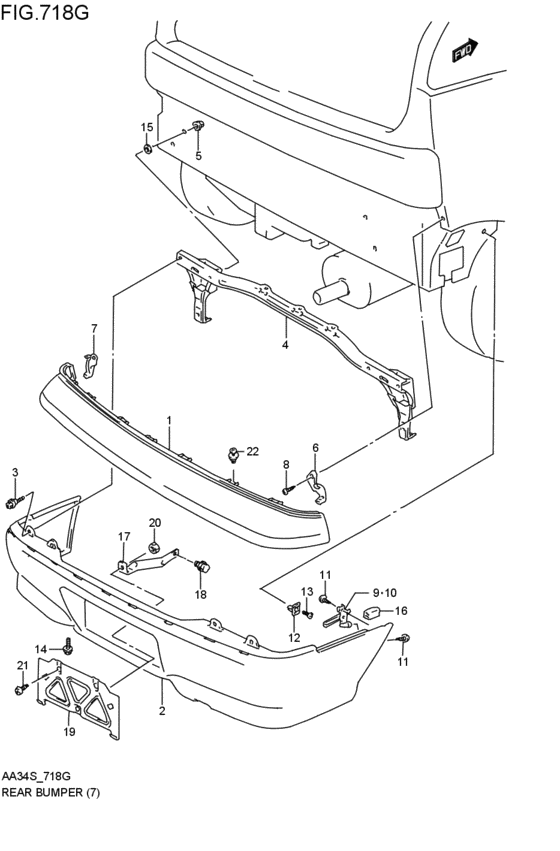

rear bumper (3DR:4WD:E; 1993-11-01~) Diagram Suzuki CULTUS
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-60E00-26U
バンパ,リヤ,アッパ(ホワイト)
ホワイト; 3DR:4WD:E; 1993-11-01~ |
71811-60E00-26U |
— | ||
| replacement | |||||
|
1
|
1
71811-60E00-799 BUMPER,RR UPPER(PRIMARY)ホワイト; 3DR:4WD:E; 1993-11-01~ |
71811-60E00-799 |
US $358.80 |
||
|
1
|
1
71811-60E00-799 BUMPER,RR UPPER(PRIMARY)プライマリー; 3DR:4WD:E; 1993-11-01~ |
71811-60E00-799 |
US $358.80 |
||
|
2
|
2
71812-60E00-26U
バンパ,リヤ,ロア(ホワイト)
ホワイト; 3DR:4WD:E; 1993-11-01~ |
71812-60E00-26U |
— | ||
| replacement | |||||
|
2
|
2
71812-60E00-799
BUMPER,RR LOWER
ホワイト; 3DR:4WD:E; 1993-11-01~ |
71812-60E00-799 |
— | ||
|
2
|
2
71812-60E00-799
BUMPER,RR LOWER
プライマリー; 3DR:4WD:E; 1993-11-01~ |
71812-60E00-799 |
— | ||
|
3
|
3
09111-06061-000
Bolt,6x16.5
3DR:4WD:E; 1993-11-01~ |
09111-06061-000 |
— | ||
| replacement | |||||
|
3
|
3
09111-06094-000 BOLT(6X16.5)3DR:4WD:E; 1993-11-01~ |
09111-06094-000 |
from US $0.96 |
||
|
4
|
4
71820-80EA0-000 MEMBER,RR BUMPER3DR:4WD:E; 1993-11-01~ |
71820-80EA0-000 |
US $153.09 |
||
|
5
|
5
08316-10083-000
Nut
3DR:4WD:E; 1993-11-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT3DR:4WD:E; 1993-11-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
71831-60B00-000 ATTACHMENT,RR BUMPER SIDE,R3DR:4WD:E; 1993-11-01~ |
71831-60B00-000 |
US $5.63 |
||
|
7
|
7
71836-60B00-000 ATTACHMENT,RR BUMPER SIDE,L3DR:4WD:E; 1993-11-01~ |
71836-60B00-000 |
US $5.63 |
||
|
8
|
8
02142-06123-000
Screw
3DR:4WD:E; 1993-11-01~ |
02142-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02142-0612B-000 SCREW3DR:4WD:E; 1993-11-01~ |
02142-0612B-000 |
from US $0.76 |
||
|
8
|
8
02142-0612A-000 SCREW3DR:4WD:E; 1993-11-01~ |
02142-0612A-000 |
from US $0.80 |
||
|
9
|
9
71851-60B00-000 SLIDER,REAR BUMPER SIDE,R3DR:4WD:E; 1993-11-01~ |
71851-60B00-000 |
US $9.44 |
||
|
10
|
10
71852-60B00-000 SLIDER,REAR BUMPER SIDE,L3DR:4WD:E; 1993-11-01~ |
71852-60B00-000 |
US $9.44 |
||
|
11
|
11
03541-05123-000
Screw
3DR:4WD:E; 1993-11-01~ |
03541-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0512B-000 SCREW3DR:4WD:E; 1993-11-01~ |
03541-0512B-000 |
from US $0.76 |
||
|
12
|
12
71753-60B00-000 HOLDER,BUMPER SIDE3DR:4WD:E; 1993-11-01~ |
71753-60B00-000 |
US $2.24 |
||
|
13
|
13
03512-05123-000
Screw
3DR:4WD:E; 1993-11-01~ |
03512-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03511-0512A-000 SCREW3DR:4WD:E; 1993-11-01~ |
03511-0512A-000 |
from US $0.80 |
||
|
14
|
14
01550-06163-000
Bolt
3DR:4WD:E; 1993-11-01~ |
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 BOLT3DR:4WD:E; 1993-11-01~ |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 BOLT3DR:4WD:E; 1993-11-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
71841-60B00-000 SEAL,REAR BUMPER MEMBER3DR:4WD:E; 1993-11-01~ |
71841-60B00-000 |
US $1.52 |
||
|
16
|
16
71855-60E00-000
PAD,REAR BUMPER SIDE
3DR:4WD:E; 1993-11-01~1994-02-01 |
71855-60E00-000 |
— | ||
|
17
|
17
71856-63E00-000
ステー,リヤバンパ,センタ
3DR:4WD:E; 1993-11-01~ |
71856-63E00-000 |
— | ||
|
18
|
18
09128-06058-000 SCREW(6X10)3DR:4WD:E; 1993-11-01~ |
09128-06058-000 |
from US $1.28 |
||
|
19
|
19
71871-60E00-000
Bracket,rr license plate
3DR:4WD:E; 1993-11-01~ |
71871-60E00-000 |
— | ||
|
20
|
20
08316-10063-000
Nut
3DR:4WD:E; 1993-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1006B-000 NUT3DR:4WD:E; 1993-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
21
|
21
09136-06116-000
スクリュ,6X16
3DR:4WD:E; 1993-11-01~ |
09136-06116-000 |
— | ||
| replacement | |||||
|
21
|
21
09136-06116-XC0
SCREW(6X16)
3DR:4WD:E; 1993-11-01~ |
09136-06116-XC0 |
— | ||
|
22
|
22
09409-07325-5PK CLIP(BLACK)ブラック; 3DR:4WD:E; 1993-11-01~ |
09409-07325-5PK |
from US $1.37 |
||
