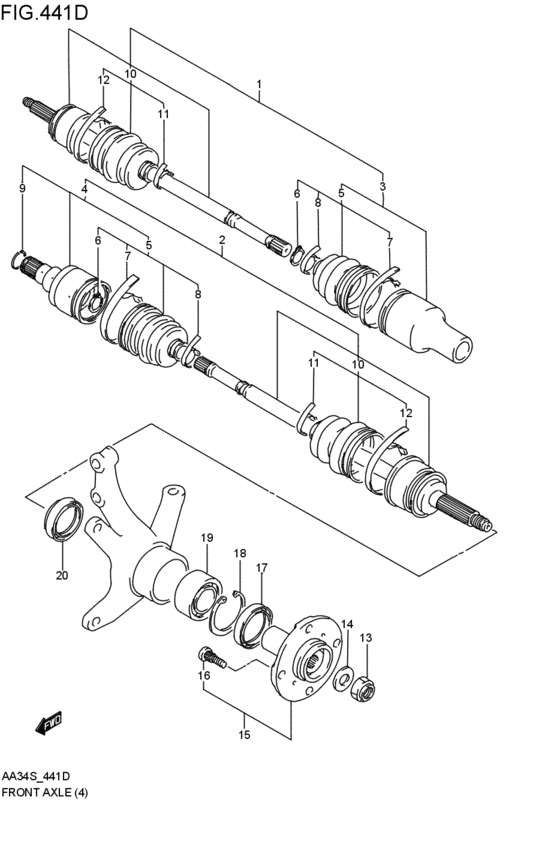

front axle (4WD:MT:(E,RE:3DR,HG); 1988-09-01~) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- HG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-63BD0-000
SHAFT ASSY,FRONT DRIVE,R
4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44101-63BD0-000 |
— | ||
|
2
|
2
44102-63BD0-000
SHAFT ASSY,FRONT DRIVE,L
4WD:MT:(E,RE:3DR,HG); 1993-06-01~ |
44102-63BD0-000 |
— | ||
|
2
|
2
44102-63B51-000
シャフトアッシ,フロントドライブ,レフト
4WD:MT:(E,RE:3DR,HG); 1988-09-01~1993-06-01 |
44102-63B51-000 |
— | ||
| replacement | |||||
|
2
|
2
44102-63BD0-000
SHAFT ASSY,FRONT DRIVE,L
4WD:MT:(E,RE:3DR,HG); 1988-09-01~1993-06-01 |
44102-63BD0-000 |
— | ||
|
3
|
3
44114-63B51-000
Joint assy,diff side,r
4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44114-63B51-000 |
— | ||
|
4
|
4
44115-63B51-000
Joint assy,diff side,l
4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44115-63B51-000 |
— | ||
|
5
|
5
44119-63B50-000
ブーツセット,ディファレンシャルサイド
4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44119-63B50-000 |
— | ||
| replacements | |||||
|
5
|
5
44119-69D01-000
BOOT SET,DIFF SIDE
4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44119-69D01-000 |
— | ||
|
5
|
5
44119-69D02-000 BOOT SET,DIFF SIDE4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44119-69D02-000 |
US $79.49 |
||
|
6
|
6
44111-78010-000 RING,SNAP4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44111-78010-000 |
US $2.80 |
||
|
7
|
7
44121-86010-000
BAND,BOOT
4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44121-86010-000 |
— | ||
|
8
|
8
44124-86011-000 BAND,BOOT4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44124-86011-000 |
US $6.81 |
||
|
9
|
9
44111-65D00-000 RING,SNAPLH; 4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
44111-65D00-000 |
US $1.60 |
||
|
10
|
10
44118-63B50-000
BOOT SET,WHEEL SIDE
4WD:MT:(E,RE:3DR,HG); 1988-09-01~1993-06-01 |
44118-63B50-000 |
— | ||
| replacements | |||||
|
10
|
10
44118-70B50-000
BOOT SET,WHEEL SIDE
4WD:MT:(E,RE:3DR,HG); 1988-09-01~1993-06-01 |
44118-70B50-000 |
— | ||
|
10
|
10
44118-63B51-000 BOOT SET,WHEEL SIDE4WD:MT:(E,RE:3DR,HG); 1988-09-01~1993-06-01 |
44118-63B51-000 |
US $96.42 |
||
|
10
|
10
44118-70B51-000
BOOT SET,WHEEL SIDE
4WD:MT:(E,RE:3DR,HG); 1988-09-01~1993-06-01 |
44118-70B51-000 |
— | ||
|
11
|
11
44124-86011-000 BAND,BOOT4WD:MT:(E,RE:3DR,HG); 1988-09-01~1993-06-01 |
44124-86011-000 |
US $6.81 |
||
|
12
|
12
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD:MT:(E,RE:3DR,HG); 1988-09-01~1993-06-01 |
44122-86010-000 |
from US $9.02 |
||
|
13
|
13
09159-18008-000 NUT4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
09159-18008-000 |
US $4.10 |
||
|
14
|
14
09160-18017-000 WASHER(18X35X4)4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
09160-18017-000 |
from US $0.91 |
||
|
15
|
15
43420-50830-000 HUB SET,FR WHL4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
43420-50830-000 |
US $260.80 |
||
|
16
|
16
09119-12012-000 BOLT(12X38)4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
09119-12012-000 |
US $2.72 |
||
|
17
|
17
09283-53001-000 SEAL,OIL(53X68.2X7)4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
09283-53001-000 |
from US $15.84 |
||
|
18
|
18
09381-68001-000 CIRCLIP4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
09381-68001-000 |
US $2.72 |
||
|
19
|
19
09267-36002-000 BEARING(36X68X33)4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
09267-36002-000 |
US $120.80 |
||
|
20
|
20
43430-60810-000 SEAL SET,WHEEL BEARING OIL4WD:MT:(E,RE:3DR,HG); 1988-09-01~ |
43430-60810-000 |
US $24.80 |
||
