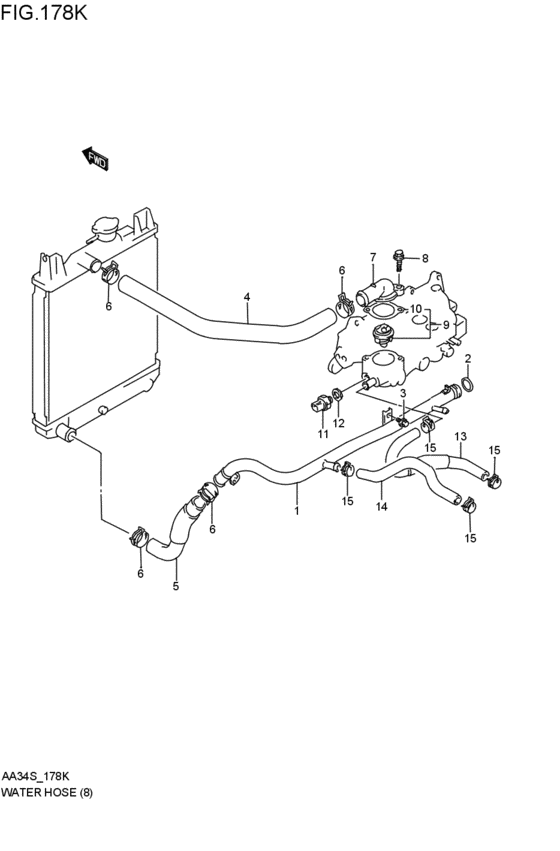

water hose (4WD:MT:OHC; 1989-09-01~1991-06-01) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- HG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17840-67B02-000
Pipe water intake
4WD:MT:OHC; 1989-09-01~1990-05-01 |
17840-67B02-000 |
— | ||
| replacement | |||||
|
1
|
1
17840-67B03-000
PIPE WATER INTAKE
4WD:MT:OHC; 1989-09-01~1990-05-01 |
17840-67B03-000 |
— | ||
|
2
|
2
09280-28008-000 O RING(D:3.5,ID:27.7)4WD:MT:OHC; 1989-09-01~1990-05-01 |
09280-28008-000 |
from US $0.63 |
||
|
3
|
3
01550-06103-000
Bolt, front
4WD:MT:OHC; 1989-09-01~1990-05-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610B-000 BoltBolt 4WD:MT:OHC; 1989-09-01~1990-05-01 |
01550-0610B-000 |
from US $0.80 |
||
|
3
|
3
01550-0610A-000 BOLT4WD:MT:OHC; 1989-09-01~1990-05-01 |
01550-0610A-000 |
from US $0.80 |
||
|
4
|
4
17852-63B00-000 HOSE,RADIATOR INLET4WD:MT:OHC; 1989-09-01~1990-05-01 |
17852-63B00-000 |
US $66.40 |
||
|
5
|
5
17854-71C01-000 HOSE,RADIATOR OUTLET4WD:MT:OHC; 1989-09-01~1990-05-01 |
17854-71C01-000 |
US $22.82 |
||
|
6
|
6
09401-30403-000
クリップ
4WD:MT:OHC; 1989-09-01~1990-05-01 |
09401-30403-000 |
— | ||
| replacement | |||||
|
6
|
6
09401-30405-000 CLIP4WD:MT:OHC; 1989-09-01~1990-05-01 |
09401-30405-000 |
from US $3.04 |
||
|
7
|
7
17561-63B01-000 CAP,WATER THERMOSTAT4WD:MT:OHC; 1989-09-01~1990-05-01 |
17561-63B01-000 |
US $58.40 |
||
|
8
|
8
01550-08253-000
Bolt, rear
4WD:MT:OHC; 1989-09-01~1990-05-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLT4WD:MT:OHC; 1989-09-01~1990-05-01 |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLT4WD:MT:OHC; 1989-09-01~1990-05-01 |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
17600-85821-000 THERMOSTAT SET,WATER 88 DEGカンレイチシヨウ; 4WD:MT:OHC; 1989-09-01~1990-05-01 |
17600-85821-000 |
from US $20.03 |
||
|
9
|
9
17600-85811-000 THERMOSTAT SET,WATER 82 DEGイッパンチヨウ; 4WD:MT:OHC; 1989-09-01~1990-05-01 |
17600-85811-000 |
from US $18.88 |
||
|
10
|
10
17569-82001-H17 GASKET,WTR THERMO CAP4WD:MT:OHC; 1989-09-01~1990-05-01 |
17569-82001-H17 |
US $2.24 |
||
|
11
|
11
17600-70811-000 SWITCH SET,COOLING FANイッパンチヨウ; 4WD:MT:OHC; 1989-09-01~1990-05-01 |
17600-70811-000 |
US $47.10 |
||
|
11
|
11
17600-70821-000
SWITCH SET,COOLING FAN
カンレイチシヨウ; 4WD:MT:OHC; 1989-09-01~1990-05-01 |
17600-70821-000 |
— | ||
|
12
|
12
09168-16009-000 GASKET(16X22X0.8)4WD:MT:OHC; 1989-09-01~1990-05-01 |
09168-16009-000 |
from US $1.52 |
||
|
13
|
13
17871-63B01-000
HOSE,HEATER INLET
4WD:MT:OHC; 1989-09-01~1990-05-01 |
17871-63B01-000 |
— | ||
|
14
|
14
17872-67E01-000
Hose,heater,outlet
4WD:MT:OHC; 1989-09-01~1990-05-01 |
17872-67E01-000 |
— | ||
|
15
|
15
09401-18403-000 CLIPClip, heater hose 4WD:MT:OHC; 1989-09-01~1990-05-01 |
09401-18403-000 |
US $1.92 |
||
