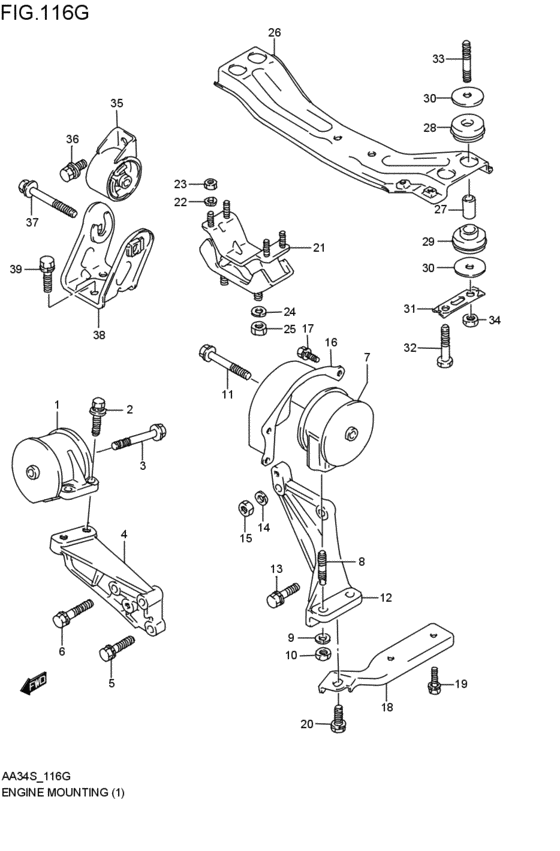

engine mounting (4WD; 1988-08-01~) Diagram Suzuki CULTUS
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- OHC
- supercharge
- CARB
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-71C10-000 MOUNTING,ENG,R4WD; 1989-09-01~ |
11610-71C10-000 |
US $177.84 |
||
|
2
|
2
09118-10053-000
ボルト,10X40
4WD; 1989-09-01~ |
09118-10053-000 |
— | ||
| replacement | |||||
|
2
|
2
09112-10015-000 BOLT(10X40)4WD; 1989-09-01~ |
09112-10015-000 |
US $1.68 |
||
|
3
|
3
01550-10853-000
Bolt
4WD; 1989-09-01~ |
01550-10853-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-1085A-000 BOLT4WD; 1989-09-01~ |
01550-1085A-000 |
US $1.76 |
||
|
4
|
4
11641-64B10-000 BRACKET,ENG MTG,R4WD; 1989-09-01~ |
11641-64B10-000 |
US $65.50 |
||
|
5
|
5
01570-10403-000
Bolt, upper
4WD; 1989-09-01~ |
01570-10403-000 |
— | ||
| replacement | |||||
|
5
|
5
01570-1040A-000 Bolt4WD; 1989-09-01~ |
01570-1040A-000 |
US $1.06 |
||
|
6
|
6
01570-10503-000
ボルト
4WD; 1989-09-01~ |
01570-10503-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-1050A-000 Bolt4WD; 1989-09-01~ |
01570-1050A-000 |
US $1.28 |
||
|
7
|
7
11620-60B11-000 MOUNTING,ENG,L4WD; 1989-09-01~ |
11620-60B11-000 |
US $144.80 |
||
|
8
|
8
09108-10107-000 BOLT,STUD4WD; 1989-09-01~ |
09108-10107-000 |
US $2.24 |
||
|
9
|
9
08321-01103-000
Washer
4WD; 1989-09-01~ |
08321-01103-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0110B-000 WASHER,LOCKWasher, knuckle end 4WD; 1989-09-01~ |
08321-0110B-000 |
from US $0.80 |
||
|
9
|
9
08321-0110A-000 WASHER,LOCK4WD; 1989-09-01~ |
08321-0110A-000 |
from US $0.80 |
||
|
10
|
10
08310-00103-000
Nut
4WD; 1989-09-01~ |
08310-00103-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0010B-000 NUT4WD; 1989-09-01~ |
08310-0010B-000 |
from US $0.80 |
||
|
10
|
10
08310-0010A-000 NUT4WD; 1989-09-01~ |
08310-0010A-000 |
from US $0.80 |
||
|
11
|
11
09103-10214-000
ボルト,10X80
4WD; 1989-09-01~ |
09103-10214-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-10341-000 BOLT(10X80)4WD; 1989-09-01~ |
09103-10341-000 |
US $2.56 |
||
|
12
|
12
11651-71C10-000
Bracket,engine mounting,lh
4WD; 1989-09-01~ |
11651-71C10-000 |
— | ||
|
13
|
13
01570-10353-000
Bolt, lower
4WD; 1989-09-01~ |
01570-10353-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-1035A-000 Bolt4WD; 1989-09-01~ |
01570-1035A-000 |
US $1.07 |
||
|
14
|
14
08321-01103-000
Washer
4WD; 1989-09-01~ |
08321-01103-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0110B-000 WASHER,LOCKWasher, knuckle end 4WD; 1989-09-01~ |
08321-0110B-000 |
from US $0.80 |
||
|
14
|
14
08321-0110A-000 WASHER,LOCK4WD; 1989-09-01~ |
08321-0110A-000 |
from US $0.80 |
||
|
15
|
15
08310-00103-000
Nut
4WD; 1989-09-01~ |
08310-00103-000 |
— | ||
| replacements | |||||
|
15
|
15
08310-0010B-000 NUT4WD; 1989-09-01~ |
08310-0010B-000 |
from US $0.80 |
||
|
15
|
15
08310-0010A-000 NUT4WD; 1989-09-01~ |
08310-0010A-000 |
from US $0.80 |
||
|
16
|
16
11671-60B10-000
BRACKET,ENG MTG BODY,L
4WD; 1989-09-01~ |
11671-60B10-000 |
— | ||
|
17
|
17
01570-08253-000
Bolt, upper
4WD; 1989-09-01~ |
01570-08253-000 |
— | ||
| replacements | |||||
|
17
|
17
01570-0825B-000 BOLT4WD; 1989-09-01~ |
01570-0825B-000 |
US $1.12 |
||
|
17
|
17
01570-0825A-000 BOLT4WD; 1989-09-01~ |
01570-0825A-000 |
from US $1.06 |
||
|
18
|
18
11655-71C10-000
STIFFENER,ENG LEFT MTG BRKT
4WD; 1989-09-01~ |
11655-71C10-000 |
— | ||
|
19
|
19
01570-08253-000
Bolt, upper
4WD; 1989-09-01~ |
01570-08253-000 |
— | ||
| replacements | |||||
|
19
|
19
01570-0825B-000 BOLT4WD; 1989-09-01~ |
01570-0825B-000 |
US $1.12 |
||
|
19
|
19
01570-0825A-000 BOLT4WD; 1989-09-01~ |
01570-0825A-000 |
from US $1.06 |
||
|
20
|
20
01570-10253-000
ボルト
4WD; 1989-09-01~ |
01570-10253-000 |
— | ||
| replacement | |||||
|
20
|
20
01570-1025A-000 Bolt4WD; 1989-09-01~ |
01570-1025A-000 |
US $1.12 |
||
|
21
|
21
11710-72C10-000
Mounting,engine rr
4WD; 1989-09-01~ |
11710-72C10-000 |
— | ||
|
22
|
22
08321-01083-000
Lock washer
4WD; 1989-09-01~ |
08321-01083-000 |
— | ||
| replacements | |||||
|
22
|
22
08321-0108B-000 WASHER,LOCK4WD; 1989-09-01~ |
08321-0108B-000 |
from US $0.76 |
||
|
22
|
22
08321-0108A-000 WASHER,LOCK4WD; 1989-09-01~ |
08321-0108A-000 |
from US $0.80 |
||
|
23
|
23
08310-00083-000
Nut
4WD; 1989-09-01~ |
08310-00083-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0008B-000 NUT4WD; 1989-09-01~ |
08310-0008B-000 |
from US $0.80 |
||
|
23
|
23
08310-0008A-000 NUTNut, bead stopper 4WD; 1989-09-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
24
|
24
08321-01103-000
Washer
4WD; 1989-09-01~ |
08321-01103-000 |
— | ||
| replacements | |||||
|
24
|
24
08321-0110B-000 WASHER,LOCKWasher, knuckle end 4WD; 1989-09-01~ |
08321-0110B-000 |
from US $0.80 |
||
|
24
|
24
08321-0110A-000 WASHER,LOCK4WD; 1989-09-01~ |
08321-0110A-000 |
from US $0.80 |
||
|
25
|
25
08310-00103-000
Nut
4WD; 1989-09-01~ |
08310-00103-000 |
— | ||
| replacements | |||||
|
25
|
25
08310-0010B-000 NUT4WD; 1989-09-01~ |
08310-0010B-000 |
from US $0.80 |
||
|
25
|
25
08310-0010A-000 NUT4WD; 1989-09-01~ |
08310-0010A-000 |
from US $0.80 |
||
|
26
|
26
11631-67B00-000
MEMBER,ENG RR MTG
4WD; 1989-09-01~ |
11631-67B00-000 |
— | ||
|
27
|
27
11687-84000-000 SPACER,MOUNTING MEMBER4WD; 1989-09-01~ |
11687-84000-000 |
US $2.72 |
||
|
28
|
28
11684-85501-000 CUSHION,MTG MEMBER,UPPER4WD; 1989-09-01~ |
11684-85501-000 |
US $4.80 |
||
|
29
|
29
11686-85501-000 CUSHION,MTG MEMBER,LOWER4WD; 1989-09-01~ |
11686-85501-000 |
US $4.80 |
||
|
30
|
30
11685-85000-000
ワッシャ,マウンチングメンバ
4WD; 1989-09-01~ |
11685-85000-000 |
— | ||
| replacement | |||||
|
30
|
30
11685-79J00-000 WASHER4WD; 1989-09-01~ |
11685-79J00-000 |
US $1.60 |
||
|
31
|
31
11687-82001-000
WASHER,MTG MEMBER LOCK
4WD; 1989-09-01~ |
11687-82001-000 |
— | ||
|
32
|
32
09100-10279-000
Bolt,10x50
4WD; 1989-09-01~ |
09100-10279-000 |
— | ||
| replacement | |||||
|
32
|
32
09100-10279-XC0 BOLT(10X50)4WD; 1989-09-01~ |
09100-10279-XC0 |
US $6.08 |
||
|
33
|
33
01411-10453-000
Bolt,stud
4WD; 1989-09-01~ |
01411-10453-000 |
— | ||
| replacement | |||||
|
33
|
33
01411-1045B-000 Bolt4WD; 1989-09-01~ |
01411-1045B-000 |
US $19.50 |
||
|
34
|
34
09140-10041-000 NUT4WD; 1989-09-01~ |
09140-10041-000 |
from US $1.96 |
||
|
35
|
35
11910-72C00-000
BUSH,ENG RR TORQUE
4WD; 1989-09-01~ |
11910-72C00-000 |
— | ||
|
36
|
36
09118-10054-000 BOLT(10X30)4WD; 1989-09-01~ |
09118-10054-000 |
US $1.68 |
||
|
37
|
37
09118-10056-000
BOLT(10X89.5)
4WD; 1989-09-01~ |
09118-10056-000 |
— | ||
|
38
|
38
11750-72C00-000
BRACKET,RR TORQUE BUSH
4WD; 1989-09-01~ |
11750-72C00-000 |
— | ||
|
39
|
39
09118-10057-000
ボルト,10X45
4WD; 1989-09-01~ |
09118-10057-000 |
— | ||
