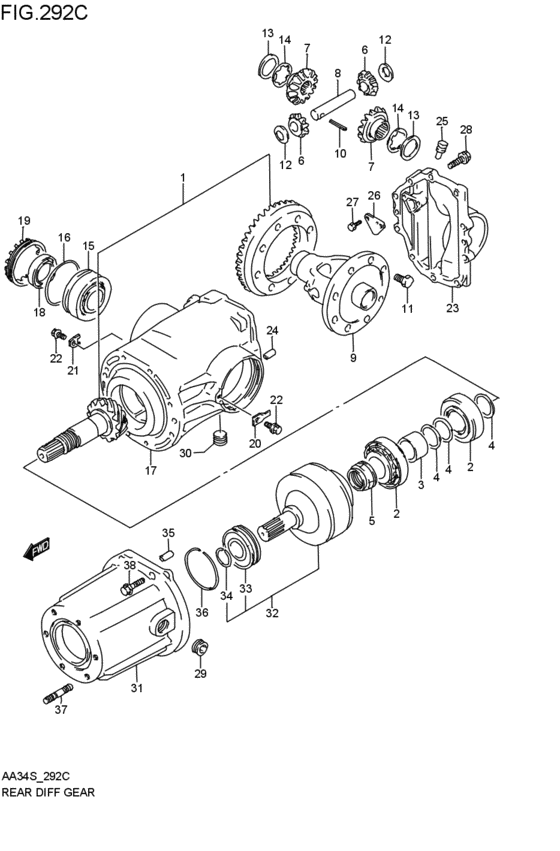

リヤデファレンシャルギヤ (4WD; 1989-09-01~) Diagram Suzuki CULTUS
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- OHC
- supercharge
- CARB
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27300-74870-000
BEVEL GEAR SET
4WD; 1989-09-01~ |
27300-74870-000 |
— | ||
|
2
|
2
09265-30012-000
Rt 30x72x21 brg
4WD; 1989-09-01~ |
09265-30012-000 |
— | ||
| replacement | |||||
|
2
|
2
09265-30018-000 BEARING(30X72X20.75)4WD; 1989-09-01~ |
09265-30018-000 |
from US $38.40 |
||
|
3
|
3
29171-56F01-000 SPACER,T/F INPUT BEVEL4WD; 1989-09-01~ |
29171-56F01-000 |
US $23 |
||
|
4
|
4
09181-30001-000 SHIM(30X38X0.3)CHKK; 4WD; 1989-09-01~ |
09181-30001-000 |
US $8.50 |
||
|
4
|
4
29521-74C00-000 SHIM,BEVEL PINION T:0.60CHKK; 4WD; 1989-09-01~ |
29521-74C00-000 |
US $4.31 |
||
|
4
|
4
29521-74C20-000 SHIM,T/F PINION BRG T:0.66CHKK; 4WD; 1989-09-01~ |
29521-74C20-000 |
US $4.31 |
||
|
4
|
4
29521-74C40-000 SHIM,BEVEL PINION T:0.72CHKK; 4WD; 1989-09-01~ |
29521-74C40-000 |
US $2.74 |
||
|
4
|
4
29521-74C60-000 SHIM,T/F PINION BRG T:0.78CHKK; 4WD; 1989-09-01~ |
29521-74C60-000 |
US $2.74 |
||
|
4
|
4
29521-74C80-000 SHIM,BEVEL PINION T:0.84CHKK; 4WD; 1989-09-01~ |
29521-74C80-000 |
US $2.74 |
||
|
5
|
5
09159-28002-000
Nut
4WD; 1989-09-01~ |
09159-28002-000 |
— | ||
|
6
|
6
27331-82010-000
ピニオン,ディファレンシャル
4WD; 1989-09-01~ |
27331-82010-000 |
— | ||
| replacement | |||||
|
6
|
6
27331-78FJ1-000 PINION,DIFFERENTIAL4WD; 1989-09-01~ |
27331-78FJ1-000 |
from US $26.60 |
||
|
7
|
7
27341-74B10-000
Gear,rear diff side
4WD; 1989-09-01~ |
27341-74B10-000 |
— | ||
|
8
|
8
27351-62B00-000 SHAFT,DIFF SIDE PINION4WD; 1989-09-01~ |
27351-62B00-000 |
from US $13.97 |
||
|
9
|
9
27411-74C10-000
ケース,リヤディファレンシャル
4WD; 1989-09-01~1995-07-01 |
27411-74C10-000 |
— | ||
|
9
|
9
27411-74C11-000
CASE,RR DIFF
4WD; 1995-07-01~1994-10-01 |
27411-74C11-000 |
— | ||
|
10
|
10
09205-05007-000 PIN,SPRING(5X36)4WD; 1989-09-01~ |
09205-05007-000 |
US $1.76 |
||
|
11
|
11
27415-74C10-000
BOLT,RR DRIVE BEVEL GEAR
4WD; 1989-09-01~ |
27415-74C10-000 |
— | ||
|
12
|
12
09164-15003-000 WASHER4WD; 1989-09-01~ |
09164-15003-000 |
from US $0.95 |
||
|
13
|
13
09160-29016-000
WASHER(29X41.5X1.3)
4WD; 1989-09-01~ |
09160-29016-000 |
— | ||
|
14
|
14
09164-29003-000 WASHERNHK; 4WD; 1989-09-01~ |
09164-29003-000 |
from US $9.40 |
||
|
15
|
15
27490-71C00-000 BEARING ASSY,RR DIFF SIDE4WD; 1989-09-01~ |
27490-71C00-000 |
US $118.86 |
||
|
16
|
16
09280-78001-000 O RING(D:3,ID:78)O ring (d:3.5,id:73.5) 4WD; 1989-09-01~ |
09280-78001-000 |
from US $3.13 |
||
|
17
|
17
27451-65G00-000 CARRIER,RR DIFF4WD; 1989-09-01~ |
27451-65G00-000 |
US $608.96 |
||
|
18
|
18
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil 4WD; 1989-09-01~ |
27431-73B20-000 |
US $11.63 |
||
| replacement | |||||
|
18
|
18
27431-73H30-000 SEAL,OIL4WD; 1989-09-01~ |
27431-73H30-000 |
from US $12.67 |
||
|
19
|
19
27453-71C00-000
RETAINER,DIFF SIDE BRG
4WD; 1989-09-01~ |
27453-71C00-000 |
— | ||
|
20
|
20
27455-71C00-000
ストッパ,ディファレンシャルサイドベアリング
4WD; 1989-09-01~ |
27455-71C00-000 |
— | ||
| replacement | |||||
|
20
|
20
27455-71C20-000
STOPPER
4WD; 1989-09-01~ |
27455-71C20-000 |
— | ||
|
21
|
21
27456-71C00-000
ストッパ,ディファレンシャルサイドベアリング
4WD; 1989-09-01~ |
27456-71C00-000 |
— | ||
| replacement | |||||
|
21
|
21
27455-71C20-000
STOPPER
4WD; 1989-09-01~ |
27455-71C20-000 |
— | ||
|
22
|
22
01550-06123-000
Bolt
4WD; 1989-09-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BOLTBolt, clamp 4WD; 1989-09-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 BOLT4WD; 1989-09-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
27452-74C00-000
カバー,リヤディファレンシャル
4WD; 1989-09-01~ |
27452-74C00-000 |
— | ||
|
24
|
24
04211-09169-000 PIN4WD; 1989-09-01~ |
04211-09169-000 |
from US $0.91 |
||
|
25
|
25
29515-80050-000 PLUG,T/F BREATHER4WD; 1989-09-01~ |
29515-80050-000 |
US $3.52 |
||
|
26
|
26
27454-71C00-000
Cover,rr diff breather
4WD; 1989-09-01~ |
27454-71C00-000 |
— | ||
|
27
|
27
01500-06103-000
Bolt, drive
4WD; 1989-09-01~ |
01500-06103-000 |
— | ||
| replacement | |||||
|
27
|
27
01500-0610B-000 BOLTBolt 4WD; 1989-09-01~ |
01500-0610B-000 |
from US $0.80 |
||
|
28
|
28
01550-08303-000
Bolt
4WD; 1989-09-01~ |
01550-08303-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0830B-000 Bolt4WD; 1989-09-01~ |
01550-0830B-000 |
from US $1.06 |
||
|
28
|
28
01550-0830A-000 BOLTBolt, mount oil seal cover 4WD; 1989-09-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
29
|
29
09246-16010-000 PLUGマグネットツキ; 4WD; 1989-09-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
29
|
29
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; 4WD; 1989-09-01~ |
09246-16021-000 |
from US $4.01 |
||
|
30
|
30
09246-16010-000 PLUGマグネットツキ; 4WD; 1989-09-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
30
|
30
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; 4WD; 1989-09-01~ |
09246-16021-000 |
from US $4.01 |
||
|
31
|
31
27461-74C00-000
CASE,VISCOUS COUPLING
4WD; 1989-09-01~ |
27461-74C00-000 |
— | ||
|
32
|
32
27470-74C00-000
COUPLING ASSY,VISCOUS
4WD; 1989-09-01~ |
27470-74C00-000 |
— | ||
|
33
|
33
27474-74C00-000
Bearing,viscous outer
4WD; 1989-09-01~ |
27474-74C00-000 |
— | ||
|
34
|
34
27475-74C00-000
RING,VISCOUS BEARING SNAP
4WD; 1989-09-01~ |
27475-74C00-000 |
— | ||
|
35
|
35
04211-09169-000 PIN4WD; 1989-09-01~ |
04211-09169-000 |
from US $0.91 |
||
|
36
|
36
09380-62001-000 RING,SNAP4WD; 1989-09-01~ |
09380-62001-000 |
US $32.80 |
||
|
37
|
37
01421-08253-000
Stud bolt, no.2
4WD; 1989-09-01~ |
01421-08253-000 |
— | ||
| replacement | |||||
|
37
|
37
01421-0825A-000 BOLT,STUD4WD; 1989-09-01~ |
01421-0825A-000 |
from US $1.12 |
||
|
38
|
38
01550-08303-000
Bolt
4WD; 1989-09-01~ |
01550-08303-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0830B-000 Bolt4WD; 1989-09-01~ |
01550-0830B-000 |
from US $1.06 |
||
|
38
|
38
01550-0830A-000 BOLTBolt, mount oil seal cover 4WD; 1989-09-01~ |
01550-0830A-000 |
from US $1.12 |
||
