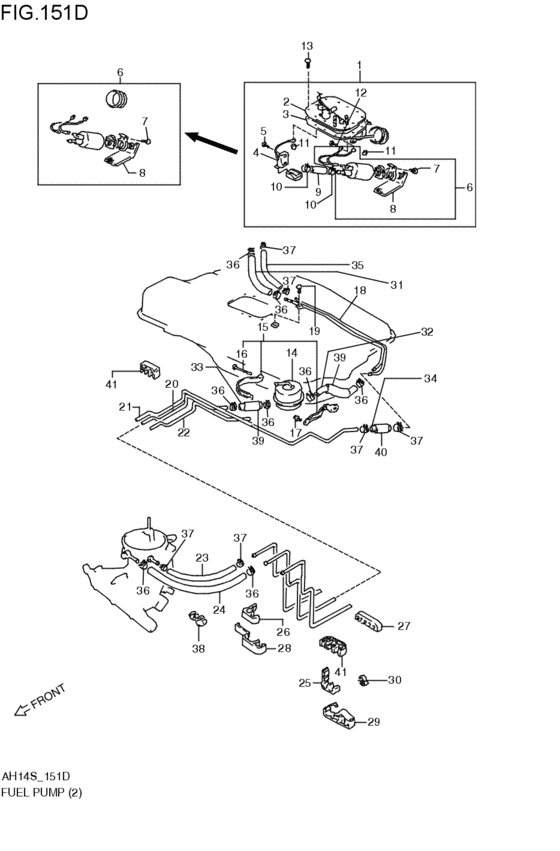

Fuel Pump ((TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- G15A
- supercharge
- EPI
- drive
- 2WD
- transmission
- 3AT
- grade
- F
- type
- TYPE4
- limited
- NORMAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15101-60B10-000
GAUGE&PUMP SET,FUEL
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15101-60B10-000 |
— | ||
|
2
|
2
34812-60B04-000 BRACKET,FUEL UNIT(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
34812-60B04-000 |
US $157.87 |
||
|
3
|
3
34825-82401-000
GASKET
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
34825-82401-000 |
— | ||
|
4
|
4
34811-60B20-000
GAUGE,FUEL LEVEL
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
34811-60B20-000 |
— | ||
|
5
|
5
02112-33063-000
Screw
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
02112-33063-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-3306A-000 SCREW(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
02112-3306A-000 |
from US $3.15 |
||
|
6
|
6
15110-60BT0-000
Pump set,fuel
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15110-60BT0-000 |
— | ||
|
7
|
7
02112-05083-000
Screw
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
02112-05083-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-0508A-000 SCREW(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
02112-0508A-000 |
from US $0.80 |
||
|
8
|
8
15120-60B04-000
FILTER,FUEL
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15120-60B04-000 |
— | ||
|
9
|
9
15143-60B04-000
HOSE,FUEL
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15143-60B04-000 |
— | ||
|
10
|
10
09401-13410-000
Clip
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09401-13410-000 |
— | ||
| replacement | |||||
|
10
|
10
09401-12414-000 CLIP(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09401-12414-000 |
from US $1.60 |
||
|
11
|
11
15148-82400-000
NUT,LEAD WIRE
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15148-82400-000 |
— | ||
|
12
|
12
02112-33083-000
Screw
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
02112-33083-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-3308A-000 SCREW(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
02112-3308A-000 |
from US $3.04 |
||
|
13
|
13
09136-05045-000 SCREW(5X10)(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09136-05045-000 |
US $0.96 |
||
|
14
|
14
15410-60B01-000 FILTER,FUEL(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15410-60B01-000 |
US $64 |
||
|
15
|
15
15420-67BT0-000 BRACKET SET,FUEL FILTER(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15420-67BT0-000 |
US $28.13 |
||
|
16
|
16
01500-06253-000 BoltBolt, fuel injection bracket (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
16
|
16
01500-0625A-000 BOLTBolt, gear shift arm (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
01500-0625A-000 |
from US $0.80 |
||
|
17
|
17
01550-06123-000
Bolt
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BOLTBolt, clamp (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 BOLT(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
15820-60B02-000
パイプ,タンクサイド
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15820-60B02-000 |
— | ||
| replacement | |||||
|
18
|
18
15820-60B1V-000 PIPE,TANK SIDE(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15820-60B1V-000 |
US $47.10 |
||
|
19
|
19
09136-05045-000 SCREW(5X10)(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09136-05045-000 |
US $0.96 |
||
|
20
|
20
15811-62B01-000
PIPE,FUEL MAIN
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15811-62B01-000 |
— | ||
|
21
|
21
15861-62B01-000
Pipe,fuel rtn
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15861-62B01-000 |
— | ||
|
22
|
22
89482-62B02-000 PIPE,EVAPORATOR MAIN(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
89482-62B02-000 |
US $41.58 |
||
|
23
|
23
09356-55117-00B
HOSE(5.5X11.5X2000)
L:2000>250; (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09356-55117-00B |
— | ||
|
24
|
24
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09356-75147-600 |
US $51.68 |
||
|
25
|
25
15885-60B01-000
RETAINER,FUEL PIPE
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15885-60B01-000 |
— | ||
|
26
|
26
15886-60B00-000 RETAINER,FRONT(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15886-60B00-000 |
US $3.05 |
||
|
27
|
27
15887-60E00-000 RETAINER,5(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15887-60E00-000 |
US $3.28 |
||
|
28
|
28
15882-60B00-000 CLAMP,FUEL PIPING,FR(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15882-60B00-000 |
US $2.58 |
||
|
29
|
29
15881-60B01-000 CLAMP,COMB PIPING(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15881-60B01-000 |
US $7.30 |
||
|
30
|
30
09403-06412-000 CLAMP(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09403-06412-000 |
US $12.90 |
||
|
31
|
31
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>120; (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09356-75147-600 |
US $51.68 |
||
|
32
|
32
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>145; (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09356-75147-600 |
US $51.68 |
||
|
33
|
33
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>120; (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09356-75147-600 |
US $51.68 |
||
|
34
|
34
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>140; (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09356-58127-600 |
from US $15.84 |
||
|
35
|
35
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>125; (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09356-58127-600 |
from US $15.84 |
||
|
36
|
36
09401-13410-000
Clip
(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09401-13410-000 |
— | ||
| replacement | |||||
|
36
|
36
09401-12414-000 CLIP(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09401-12414-000 |
from US $1.60 |
||
|
37
|
37
09401-11411-000 CLIP(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09401-11411-000 |
from US $6.38 |
||
|
38
|
38
09408-00121-000 CLAMP(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09408-00121-000 |
US $1.52 |
||
|
39
|
39
17858-86501-000 PROTECTOR,HOSE(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
17858-86501-000 |
US $9.60 |
||
|
40
|
40
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper (TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
09352-13162-600 |
from US $11.40 |
||
|
41
|
41
15888-60E00-000 RETAINER,3(TYPE4,TYPE5):2WD; 1991-07-01~1994-09-01 |
15888-60E00-000 |
US $3.53 |
||
