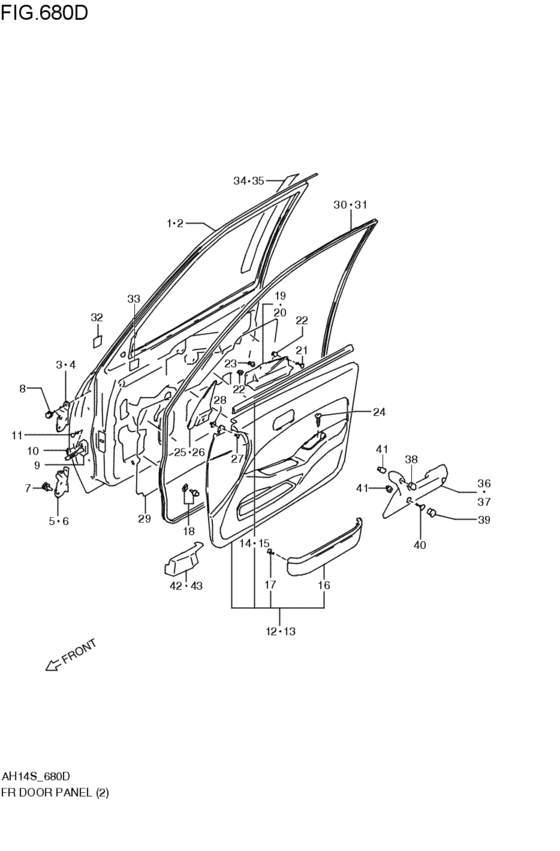

front door panel (TYPE4,TYPE5; 1991-07-01~1994-09-01) Diagram Suzuki CULTUS
- Year
- 1991 - 1993
- Sales region
- Japan
- Engine
- G15A
- supercharge
- EPI
- drive
- 2WD
- transmission
- 3AT
- grade
- XG
- type
- TYPE4
- limited
- LTD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-67B71-000 PANEL ASSY,FRONT DOOR,RTYPE4,TYPE5; 1991-07-01~1994-09-01 |
68001-67B71-000 |
US $549.12 |
||
|
2
|
2
68002-67B71-000 PANEL ASSY,FRONT DOOR,LTYPE4,TYPE5; 1991-07-01~1994-09-01 |
68002-67B71-000 |
US $457.60 |
||
|
3
|
3
69310-60B21-000 HINGE,FR DOOR UPR,Rアツパライト; TYPE4,TYPE5; 1991-07-01~1994-09-01 |
69310-60B21-000 |
US $48.21 |
||
|
4
|
4
69330-60B21-000 HINGE,FR DOOR UPR,Lアツパレフト; TYPE4,TYPE5; 1991-07-01~1994-09-01 |
69330-60B21-000 |
US $48.21 |
||
|
5
|
5
69330-60B10-000 HINGE,FR DOOR,NO.2ロライト; TYPE4,TYPE5; 1991-07-01~1994-09-01 |
69330-60B10-000 |
US $37.17 |
||
|
6
|
6
69310-60B10-000 HINGE,FR DOOR,NO.1ロアレフト; TYPE4,TYPE5; 1991-07-01~1994-09-01 |
69310-60B10-000 |
US $37.17 |
||
|
7
|
7
09118-08156-000 BOLT(8X25)TYPE4,TYPE5; 1991-07-01~1994-09-01 |
09118-08156-000 |
US $19.50 |
||
|
8
|
8
09118-08156-000 BOLT(8X25)TYPE4,TYPE5; 1991-07-01~1994-09-01 |
09118-08156-000 |
US $19.50 |
||
|
9
|
9
81810-60B00-000
ストップ,ドアオープン
TYPE4,TYPE5; 1991-07-01~1994-09-01 |
81810-60B00-000 |
— | ||
| replacement | |||||
|
9
|
9
81810-60B10-000 STOP,FRONT DOOR OPENTYPE4,TYPE5; 1991-07-01~1994-09-01 |
81810-60B10-000 |
US $26.86 |
||
|
10
|
10
81831-70B00-000 PIN,DOOR OPEN STOPPER BODYTYPE4,TYPE5; 1991-07-01~1994-09-01 |
81831-70B00-000 |
US $1.60 |
||
|
11
|
11
01580-06253-000
Bolt, ignition
TYPE4,TYPE5; 1991-07-01~1994-09-01 |
01580-06253-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0625A-000 BoltTYPE4,TYPE5; 1991-07-01~1994-09-01 |
01580-0625A-000 |
US $0.96 |
||
|
12
|
12
83710-68E00-H98
トリム,フロントドア,ライト
コシノヒロコリミテッド,ブラック/ホワイト; (TYPE4,TYPE5):XG; 1991-07-01~1993-11-01 |
83710-68E00-H98 |
— | ||
|
13
|
13
83720-68E00-H98
トリム,フロントドア,レフト
ブラック/ホワイト,コシノヒロコリミテッド; (TYPE4,TYPE5):XG; 1991-07-01~1993-11-01 |
83720-68E00-H98 |
— | ||
|
14
|
14
83851-68E00-000
WEATHERSTRIP,FR DR INR,R
(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
83851-68E00-000 |
— | ||
|
15
|
15
83861-68E00-000
WEATHERSTRIP,FR DR INR,L
(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
83861-68E00-000 |
— | ||
|
18
|
18
09409-08320-000 CLIP(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
09409-08320-000 |
from US $0.88 |
||
|
19
|
19
84471-68E00-000
BRACKET,FR DR TRIM,R
(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
84471-68E00-000 |
— | ||
|
20
|
20
84476-68E00-000
BRACKET,FR DR TRIM,L
(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
84476-68E00-000 |
— | ||
|
21
|
21
03541-06203-000
Screw
(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
03541-06203-000 |
— | ||
| replacement | |||||
|
21
|
21
03541-0620A-000 SCREW(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
03541-0620A-000 |
US $14.40 |
||
|
22
|
22
09148-06007-000 NUT(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
09148-06007-000 |
from US $0.65 |
||
|
23
|
23
09148-06011-000 NUT(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
09148-06011-000 |
US $14.70 |
||
|
24
|
24
02142-06163-000
Screw
(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
02142-0616A-000 SCREW(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
25
|
25
83755-68E00-5PK
COVER,FR DR TRIM,R
ブラック; (TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
83755-68E00-5PK |
— | ||
|
26
|
26
83756-68E00-5PK
COVER,FR DR TRIM,L
ブラック; (TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
83756-68E00-5PK |
— | ||
|
27
|
27
03541-05303-000
Screw, headlamp cover
(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
03541-05303-000 |
— | ||
| replacement | |||||
|
27
|
27
03541-0530A-000 SCREW(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
03541-0530A-000 |
US $11 |
||
|
28
|
28
09148-05031-000 NUT(TYPE4,TYPE5):(XG,XI); 1991-07-01~1994-09-01 |
09148-05031-000 |
US $1.28 |
||
|
29
|
29
83911-60X50-000
カバー,ドアシーリング,600X1200
TYPE4,TYPE5; 1991-07-01~1994-09-01 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
29
|
29
83911-60X52-000 COVER,DR SEALINGTYPE4,TYPE5; 1991-07-01~1994-09-01 |
83911-60X52-000 |
US $6.06 |
||
|
30
|
30
84641-67B10-000 WEATHERSTRIP,FR DR OPNG,RTYPE4,TYPE5; 1991-07-01~1994-09-01 |
84641-67B10-000 |
US $80.22 |
||
|
31
|
31
84651-67B10-000 WEATHERSTRIP,FR DR OPNG,LTYPE4,TYPE5; 1991-07-01~1994-09-01 |
84651-67B10-000 |
US $80.22 |
||
|
32
|
32
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole TYPE4,TYPE5; 1991-07-01~1994-09-01 |
84761-50X50-000 |
US $4.64 |
||
|
33
|
33
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole TYPE4,TYPE5; 1991-07-01~1994-09-01 |
84761-50X50-000 |
US $4.64 |
||
|
34
|
34
83981-62B00-0CE
TAPE,FR DOOR CTR PLR,R
ブラック; TYPE4,TYPE5; 1991-07-01~1994-09-01 |
83981-62B00-0CE |
— | ||
|
35
|
35
83982-62B00-0CE
TAPE,FR DOOR CTR PLR,L
ブラック; TYPE4,TYPE5; 1991-07-01~1994-09-01 |
83982-62B00-0CE |
— | ||
