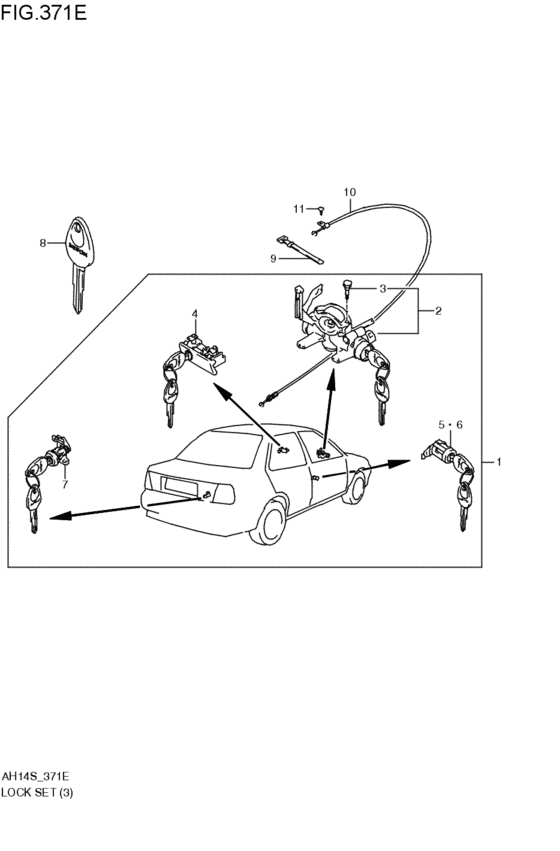

lock set (TYPE4:XI,TYPE5; 1991-07-01~1994-09-01) Diagram Suzuki CULTUS
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- G15A
- supercharge
- EPI
- drive
- 2WD
- transmission
- 3AT
- grade
- XI
- type
- TYPE5
- limited
- NORMAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37102-65890-5ES
ロックセット
ブラック; (TYPE4:XI,TYPE5):3AT; 1991-07-01~1994-09-01 |
37102-65890-5ES |
— | ||
|
2
|
2
37101-62860-000
LOCK ASSY,STEERING
(TYPE4:XI,TYPE5):3AT; 1991-07-01~1994-09-01 |
37101-62860-000 |
— | ||
|
3
|
3
37152-60B00-000 BOLT,STEERING LOCKTYPE4:XI,TYPE5; 1991-07-01~1994-09-01 |
37152-60B00-000 |
US $4.27 |
||
|
4
|
4
73400-60830-5ES
LOCK SET,GLOVE BOX DR
ブラツク; TYPE4:XI,TYPE5; 1991-07-01~1994-09-01 |
73400-60830-5ES |
— | ||
|
5
|
5
82200-61840-000 CYLINDER,FR DR LOCK,RTYPE4:XI,TYPE5; 1991-07-01~1994-09-01 |
82200-61840-000 |
US $57.76 |
||
|
6
|
6
82200-61870-000 CYLINDER,FR DR LOCK,LTYPE4:XI,TYPE5; 1991-07-01~1994-09-01 |
82200-61870-000 |
US $49.68 |
||
|
7
|
7
82500-71820-000 CYLINDER,TRUNK LID LOCKTYPE4:XI,TYPE5; 1991-07-01~1994-09-01 |
82500-71820-000 |
US $53.36 |
||
|
8
|
8
37145-60B10-000 KEY,BLANKOPT; TYPE4:XI,TYPE5; 1991-07-01~1994-09-01 |
37145-60B10-000 |
US $36.80 |
||
|
9
|
9
09407-22403-000 CLAMP(L:220)TYPE4:XI,TYPE5; 1991-07-01~1994-09-01 |
09407-22403-000 |
US $12.90 |
||
|
10
|
10
38897-60B30-000
ケーブル,キーインタロック
(TYPE4:XI,TYPE5):3AT; 1991-07-01~1994-09-01 |
38897-60B30-000 |
— | ||
|
11
|
11
09125-05061-000 SCREW(5X8)(TYPE4:XI,TYPE5):3AT; 1991-07-01~1994-09-01 |
09125-05061-000 |
US $9.60 |
