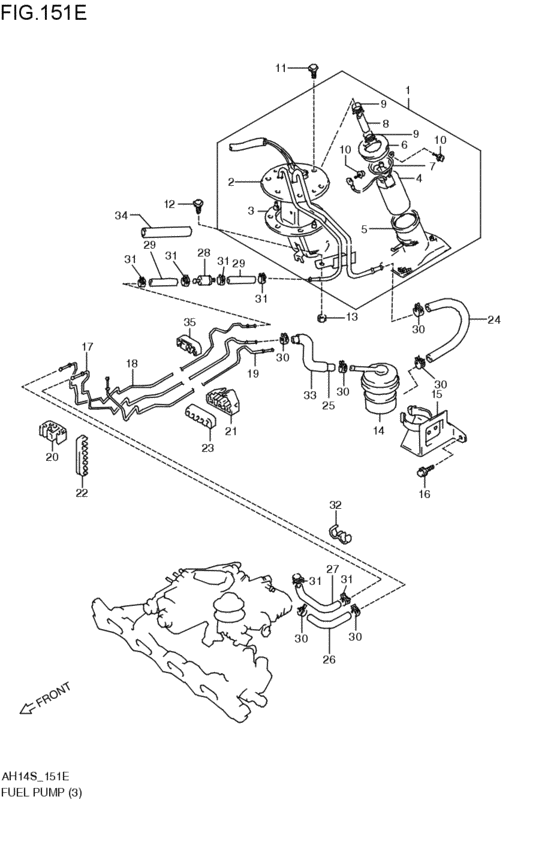

Fuel Pump ((TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01) Diagram Suzuki CULTUS
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- G16A
- supercharge
- CARB
- drive
- 4WD
- transmission
- 5MT
- grade
- XG
- type
- TYPE3
- limited
- NORMAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-67B11-000
ポンプアッシ,フューエル
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15100-67B11-000 |
— | ||
|
2
|
2
15102-67B10-000
ブラケット,フューエルポンプ
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15102-67B10-000 |
— | ||
|
3
|
3
15111-70B00-000 GASKET,FUEL PUMP(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15111-70B00-000 |
US $16.12 |
||
|
4
|
4
15110-63810-000 PUMP SET,FUEL(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15110-63810-000 |
US $274.16 |
||
|
5
|
5
15120-63B11-000 FILTER,FUEL PUMP(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15120-63B11-000 |
US $33.67 |
||
|
6
|
6
15125-63B00-000 CAP,FUEL PUMP(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15125-63B00-000 |
US $13.14 |
||
|
7
|
7
15126-63B00-000
O-RING,FUEL PUMP
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15126-63B00-000 |
— | ||
|
8
|
8
15143-63B00-000
HOSE,FUEL
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15143-63B00-000 |
— | ||
|
9
|
9
09401-10411-000 CLIPClip, cap (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09401-10411-000 |
from US $3.83 |
||
|
10
|
10
02112-73063-000 SCREW(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
02112-73063-000 |
US $11.80 |
||
|
11
|
11
09136-05045-000 SCREW(5X10)(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09136-05045-000 |
US $0.96 |
||
|
12
|
12
02142-05103-000
Screw 5x10
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0510B-000 SCREWBolt (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
02142-0510B-000 |
from US $0.76 |
||
|
13
|
13
08310-00053-000
Nut
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
08310-00053-000 |
— | ||
| replacement | |||||
|
13
|
13
08310-0005A-000 NUT(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
08310-0005A-000 |
from US $0.80 |
||
|
14
|
14
15410-63B01-000 FILTER,FUEL(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15410-63B01-000 |
US $7.91 |
||
|
15
|
15
15420-67B10-000
BRACKET,FUEL FILTER
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15420-67B10-000 |
— | ||
|
16
|
16
01550-06123-000
Bolt
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BOLTBolt, clamp (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 BOLT(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
15811-67B12-000
パイプ,フューエル
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15811-67B12-000 |
— | ||
|
18
|
18
15861-67B13-000
パイプ,フューエルリターン
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15861-67B13-000 |
— | ||
|
19
|
19
89482-67B01-000
パイプ,エバポレータメイン
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
89482-67B01-000 |
— | ||
|
20
|
20
15882-63B00-000
Clamp,fuel pipe front
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15882-63B00-000 |
— | ||
|
21
|
21
15881-63B01-000 CLAMP,COMB PIPING(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15881-63B01-000 |
US $6.81 |
||
|
22
|
22
15884-63B00-000 CLAMP,7(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15884-63B00-000 |
US $2.02 |
||
|
23
|
23
15887-63E00-000 RETAINER,5(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15887-63E00-000 |
US $3.28 |
||
|
24
|
24
15851-67B10-000
ホース,フューエルフィルタ,インレット
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15851-67B10-000 |
— | ||
| replacement | |||||
|
24
|
24
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09356-58127-600 |
from US $15.84 |
||
|
25
|
25
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>105; (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09356-58127-600 |
from US $15.84 |
||
|
26
|
26
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>200; (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09356-58127-600 |
from US $15.84 |
||
|
27
|
27
09356-42115-600 HOSE(4.2X11.2X600)L:600>185; (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09356-42115-600 |
US $15.52 |
||
|
28
|
28
15850-82000-000 VALVE,FUEL RETURN CHECK(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15850-82000-000 |
US $36.43 |
||
|
29
|
29
09356-42115-600 HOSE(4.2X11.2X600)L:600>60; (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09356-42115-600 |
US $15.52 |
||
|
30
|
30
09401-11408-000
Clip
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09401-11408-000 |
— | ||
| replacements | |||||
|
30
|
30
09401-11415-000 CLIP(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09401-11415-000 |
from US $1.06 |
||
|
30
|
30
09401-11407-000
CLIP
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09401-11407-000 |
— | ||
|
31
|
31
09401-10411-000 CLIPClip, cap (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09401-10411-000 |
from US $3.83 |
||
|
32
|
32
09408-00043-000 CLAMPHolder, fuse case (TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
09408-00043-000 |
US $9.60 |
||
|
33
|
33
17858-86501-000 PROTECTOR,HOSE(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
17858-86501-000 |
US $9.60 |
||
|
34
|
34
15868-67B00-000 PROTECTOR,FUEL HOSE(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15868-67B00-000 |
US $2.56 |
||
|
35
|
35
15893-67B10-000
クランプ,フューエルパイプ
(TYPE1,TYPE3):4WD; 1989-09-01~1991-06-01 |
15893-67B10-000 |
— | ||
