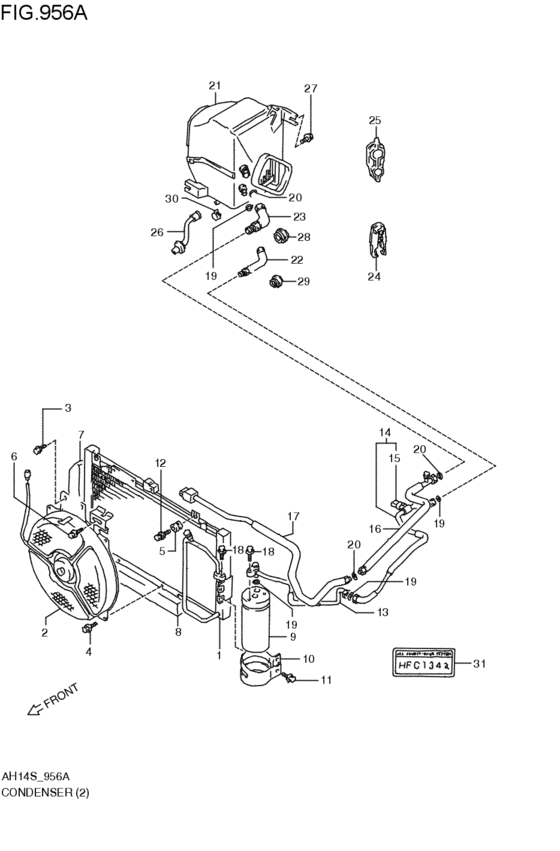

condenser (ゴウキ 250001ヨリ; XI:TYPE5; 1993-10-01~1994-09-01) Diagram Suzuki CULTUS
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- G15A
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- XI
- type
- TYPE5
- limited
- NORMAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95310-60EM1-000 CONDENSERXI:TYPE5; 1993-10-01~1994-09-01 |
95310-60EM1-000 |
US $436.48 |
||
|
2
|
2
95320-60B50-000 FAN ASSY,CONDXI:TYPE5; 1993-10-01~1994-09-01 |
95320-60B50-000 |
US $379.04 |
||
|
3
|
3
01550-05123-000
Screw
XI:TYPE5; 1993-10-01~1994-09-01 |
01550-05123-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0512B-000 BOLTBolt XI:TYPE5; 1993-10-01~1994-09-01 |
01550-0512B-000 |
from US $0.70 |
||
|
4
|
4
01550-05303-000
ボルト
XI:TYPE5; 1993-10-01~1994-09-01 |
01550-05303-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0530A-000 BoltXI:TYPE5; 1993-10-01~1994-09-01 |
01550-0530A-000 |
US $11.40 |
||
|
5
|
5
95920-50F00-000 BUSHXI:TYPE5; 1993-10-01~1994-09-01 |
95920-50F00-000 |
US $5.92 |
||
|
6
|
6
01550-06123-000
Bolt
XI:TYPE5; 1993-10-01~1994-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BOLTBolt, clamp XI:TYPE5; 1993-10-01~1994-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BOLTXI:TYPE5; 1993-10-01~1994-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
95811-60B50-000
PACKING,CONDENSER SIDE
XI:TYPE5; 1993-10-01~1994-09-01 |
95811-60B50-000 |
— | ||
|
8
|
8
95812-60B50-000 PACKING,CONDENSER BOTTOML:415>325; XI:TYPE5; 1993-10-01~1994-09-01 |
95812-60B50-000 |
US $15.38 |
||
|
9
|
9
95330-72B00-000 RECEIVER DRYERXI:TYPE5; 1993-10-01~1994-09-01 |
95330-72B00-000 |
US $107.24 |
||
|
10
|
10
95351-60G40-000 BRACKET,RCVRXI:TYPE5; 1993-10-01~1994-09-01 |
95351-60G40-000 |
US $10.67 |
||
|
11
|
11
01550-06163-000
Bolt
XI:TYPE5; 1993-10-01~1994-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0616B-000 BOLTXI:TYPE5; 1993-10-01~1994-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
11
|
11
01550-0616A-000 BOLTXI:TYPE5; 1993-10-01~1994-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
12
|
12
09116-06129-000 BOLT(6X30)XI:TYPE5; 1993-10-01~1994-09-01 |
09116-06129-000 |
US $1.44 |
||
|
13
|
13
95732-65EM0-000
PIPE,RECEIVER OUTLET
XI:TYPE5; 1993-10-01~1994-09-01 |
95732-65EM0-000 |
— | ||
|
14
|
14
95733-65EM0-000
PIPE,COOLING UNIT INLET
XI:TYPE5; 1993-10-01~1994-09-01 |
95733-65EM0-000 |
— | ||
|
15
|
15
95526-50G10-000
Switch, dual pressure
XI:TYPE5; 1993-10-01~1994-09-01 |
95526-50G10-000 |
— | ||
| replacement | |||||
|
15
|
15
95526-50G30-000 SWITCH,DUAL PRESSUREXI:TYPE5; 1993-10-01~1994-09-01 |
95526-50G30-000 |
US $44.84 |
||
|
16
|
16
95742-65EM0-000
Pipe,cooling unit outlet
XI:TYPE5; 1993-10-01~1994-09-01 |
95742-65EM0-000 |
— | ||
|
17
|
17
95743-65EM0-000
PIPE,CPRSR INLET
XI:TYPE5; 1993-10-01~1994-09-01 |
95743-65EM0-000 |
— | ||
|
18
|
18
01550-06253-000
Bolt (6x25)
XI:TYPE5; 1993-10-01~1994-09-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0625B-000 BOLTBolt, head cover XI:TYPE5; 1993-10-01~1994-09-01 |
01550-0625B-000 |
from US $0.91 |
||
|
18
|
18
01550-0625A-000 BOLTBolt XI:TYPE5; 1993-10-01~1994-09-01 |
01550-0625A-000 |
from US $0.96 |
||
|
19
|
19
95891-50G00-000 O-RING,D:1.8 ID:6.7XI:TYPE5; 1993-10-01~1994-09-01 |
95891-50G00-000 |
from US $0.96 |
||
|
20
|
20
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) XI:TYPE5; 1993-10-01~1994-09-01 |
95896-50G00-000 |
US $1.28 |
||
|
21
|
21
95400-65EM0-000
COOLING UNIT
XI:TYPE5; 1993-10-01~1994-09-01 |
95400-65EM0-000 |
— | ||
|
22
|
22
95734-60EM0-000
PIPE,JOINT DISCHARGE
XI:TYPE5; 1993-10-01~1994-09-01 |
95734-60EM0-000 |
— | ||
|
23
|
23
95741-60EM0-000
PIPE,JOINT SUCTION
XI:TYPE5; 1993-10-01~1994-09-01 |
95741-60EM0-000 |
— | ||
|
24
|
24
95423-60B50-000 CLAMP,PIPEXI:TYPE5; 1993-10-01~1994-09-01 |
95423-60B50-000 |
US $6.66 |
||
|
25
|
25
95464-60B50-000
PACKING,PIPE
XI:TYPE5; 1993-10-01~1994-09-01 |
95464-60B50-000 |
— | ||
|
26
|
26
95481-60B51-000 HOSE,DRAINXI:TYPE5; 1993-10-01~1994-09-01 |
95481-60B51-000 |
US $12.36 |
||
|
27
|
27
01550-06163-000
Bolt
XI:TYPE5; 1993-10-01~1994-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0616B-000 BOLTXI:TYPE5; 1993-10-01~1994-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
27
|
27
01550-0616A-000 BOLTXI:TYPE5; 1993-10-01~1994-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
28
|
28
74813-82000-000 GROMMET,CAR AIR CON,NO.1XI:TYPE5; 1993-10-01~1994-09-01 |
74813-82000-000 |
US $6.72 |
||
| replacement | |||||
|
28
|
28
74814-82000-000 GROMMET,CAR AIR CON,NO.2XI:TYPE5; 1993-10-01~1994-09-01 |
74814-82000-000 |
US $6.08 |
||
|
29
|
29
74814-82000-000 GROMMET,CAR AIR CON,NO.2XI:TYPE5; 1993-10-01~1994-09-01 |
74814-82000-000 |
US $6.08 |
||
|
30
|
30
09401-16402-000 Clip, 2nd air hose no.2XI:TYPE5; 1993-10-01~1994-09-01 |
09401-16402-000 |
US $2.15 |
||
| replacement | |||||
|
30
|
30
09401-16403-000 CLIPClip, 2nd air hose no.2 XI:TYPE5; 1993-10-01~1994-09-01 |
09401-16403-000 |
from US $3.86 |
||
|
31
|
31
95955-72B00-000 LABEL,REFRIGERANTXI:TYPE5; 1993-10-01~1994-09-01 |
95955-72B00-000 |
US $1.60 |
||
