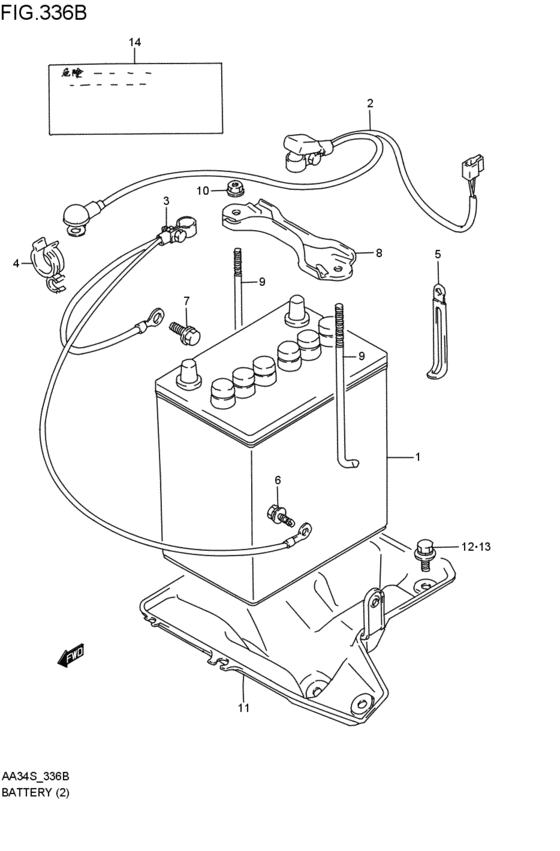

battery (2DR:SCVT:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-60B10-000
バッテリ,12V38AH/5HR,DELCO
DELKOR; 2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
33610-60B10-000 |
— | ||
|
2
|
2
33810-60B30-000
ケーブル,スターティングモータ
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
33810-60B30-000 |
— | ||
|
3
|
3
33850-60B70-000
ケーブル,バッテリグランド
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
33850-60B70-000 |
— | ||
|
4
|
4
09408-00109-000
Clamp
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
09408-00109-000 |
— | ||
|
5
|
5
09404-08420-000 CLAMP(L:120 T:1.0)2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
09404-08420-000 |
from US $2.08 |
||
|
6
|
6
09115-06001-000
Bolt, lh
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
6
|
6
09115-06005-000 BOLT(6X16)2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
09115-06005-000 |
US $1.28 |
||
|
7
|
7
01580-08123-000
Bolt
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
01580-08123-000 |
— | ||
| replacement | |||||
|
7
|
7
01580-0812B-000 Bolt2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
01580-0812B-000 |
US $15.50 |
||
|
8
|
8
72511-60A03-000 BAND,BATTERY2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
72511-60A03-000 |
from US $12 |
||
|
9
|
9
72513-60B11-000
BOLT,BATTERY
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
72513-60B11-000 |
— | ||
|
10
|
10
08361-15063-000
Nut
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
08361-15063-000 |
— | ||
| replacement | |||||
|
10
|
10
08361-1506A-000 NUT2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
08361-1506A-000 |
from US $0.74 |
||
|
11
|
11
72520-60B10-000
BRACKET,BATTERY
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
72520-60B10-000 |
— | ||
|
12
|
12
09118-08104-000 BOLT(8X20)2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
09118-08104-000 |
US $1.22 |
||
|
13
|
13
01580-08253-000
Bolt
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
01580-08253-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0825A-000 Bolt2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
01580-0825A-000 |
from US $4.34 |
||
|
14
|
14
33617-80B10-000
ラベル,バッテリコーション
2DR:SCVT:2WD; 1992-01-01~1992-11-01 |
33617-80B10-000 |
— | ||
