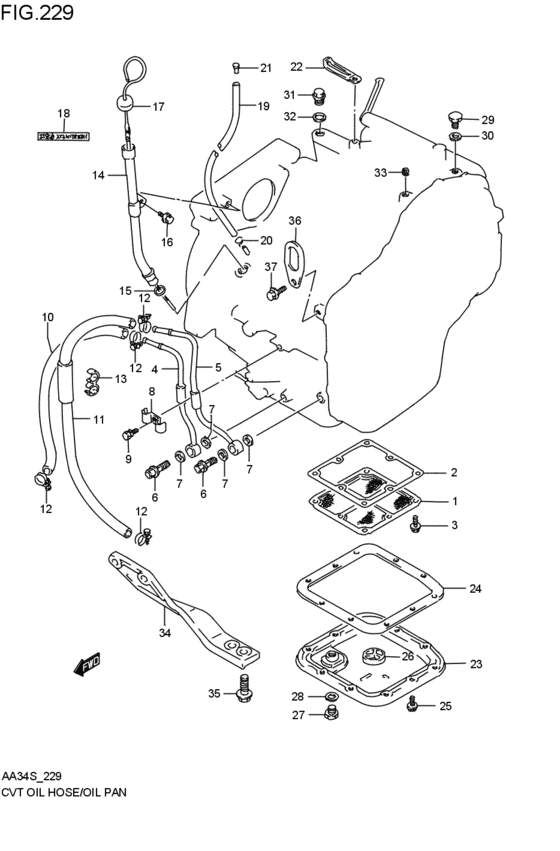

cvt - oil hose (SCVT:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22880-64B60-000
ストレーナ,オイル
SCVT:2WD; 1992-01-01~1992-11-01 |
22880-64B60-000 |
— | ||
|
2
|
2
22885-64B61-000
ガスケット,オイルストレーナ
SCVT:2WD; 1992-01-01~1992-11-01 |
22885-64B61-000 |
— | ||
|
3
|
3
09136-06112-000 BOLT(6X16)SCVT:2WD; 1992-01-01~1992-11-01 |
09136-06112-000 |
US $22.80 |
||
|
4
|
4
22970-64B70-000
チューブ,オイルクーラ,インレット
SCVT:2WD; 1992-01-01~1992-11-01 |
22970-64B70-000 |
— | ||
|
5
|
5
22960-64B70-000
チューブ,オイルクーラ,アウトレット
SCVT:2WD; 1992-01-01~1992-11-01 |
22960-64B70-000 |
— | ||
|
6
|
6
09360-10032-000
Bolt, union (10x24)
SCVT:2WD; 1992-01-01~1992-11-01 |
09360-10032-000 |
— | ||
| replacement | |||||
|
6
|
6
09360-10055-000 UNIONBolt, oil pipe union SCVT:2WD; 1992-01-01~1992-11-01 |
09360-10055-000 |
from US $4.80 |
||
|
7
|
7
09168-10028-000 GASKET(10X15X1)SCVT:2WD; 1992-01-01~1992-11-01 |
09168-10028-000 |
US $12.90 |
||
|
8
|
8
24899-85500-000
PLATE,OIL PIPE
SCVT:2WD; 1992-01-01~1992-11-01 |
24899-85500-000 |
— | ||
|
9
|
9
01570-06123-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01570-0612B-000 BOLTBolt, upper SCVT:2WD; 1992-01-01~1992-11-01 |
01570-0612B-000 |
US $0.80 |
||
|
9
|
9
01570-0612A-000 BOLTBolt SCVT:2WD; 1992-01-01~1992-11-01 |
01570-0612A-000 |
from US $0.80 |
||
|
10
|
10
24891-56X50-000
ホースセット
L:300>230; SCVT:2WD; 1992-01-01~1992-11-01 |
24891-56X50-000 |
— | ||
| replacement | |||||
|
10
|
10
24891-56X51-000 HOSE SETL:300>230; SCVT:2WD; 1992-01-01~1992-11-01 |
24891-56X51-000 |
US $57.60 |
||
|
11
|
11
24891-56X51-000 HOSE SETL:600>430; SCVT:2WD; 1992-01-01~1992-11-01 |
24891-56X51-000 |
US $57.60 |
||
|
12
|
12
09400-15302-000
Clamp
SCVT:2WD; 1992-01-01~1992-11-01 |
09400-15302-000 |
— | ||
| replacement | |||||
|
12
|
12
09400-15311-000 CLAMPSCVT:2WD; 1992-01-01~1992-11-01 |
09400-15311-000 |
US $23.20 |
||
|
13
|
13
09408-00043-000 CLAMPHolder, fuse case SCVT:2WD; 1992-01-01~1992-11-01 |
09408-00043-000 |
US $9.60 |
||
|
14
|
14
24770-64B60-000
チューブ,オイルフィラ
SCVT:2WD; 1992-01-01~1992-11-01 |
24770-64B60-000 |
— | ||
|
15
|
15
09280-09008-000 O RING(D:2.1,ID:8.8)O ring (d:2.1,id:8.8) SCVT:2WD; 1992-01-01~1992-11-01 |
09280-09008-000 |
from US $1.49 |
||
|
16
|
16
01550-06163-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
24800-64810-000
ゲージセット,オイルレベル
SCVT:2WD; 1992-01-01~1992-11-01 |
24800-64810-000 |
— | ||
|
18
|
18
24839-64B60-000
エンブレム,ATF
SCVT:2WD; 1992-01-01~1992-11-01 |
24839-64B60-000 |
— | ||
|
19
|
19
09352-50823-00B
HOSE(5X8.2X2000)
L:2000>730; SCVT:2WD; 1992-01-01~1992-11-01 |
09352-50823-00B |
— | ||
| replacement | |||||
|
19
|
19
09352-50005-00B Hose(5X8.2X2000)L:2000>730; SCVT:2WD; 1992-01-01~1992-11-01 |
09352-50005-00B |
from US $9.27 |
||
|
20
|
20
09401-08301-000 CLIPSCVT:2WD; 1992-01-01~1992-11-01 |
09401-08301-000 |
from US $0.96 |
||
|
21
|
21
09250-06014-000
PLUG(OD:9)
SCVT:2WD; 1992-01-01~1992-11-01 |
09250-06014-000 |
— | ||
|
22
|
22
09404-08420-000 CLAMP(L:120 T:1.0)SCVT:2WD; 1992-01-01~1992-11-01 |
09404-08420-000 |
from US $2.08 |
||
|
23
|
23
24740-64B60-000
パン,オイル
SCVT:2WD; 1992-01-01~1992-11-01 |
24740-64B60-000 |
— | ||
|
24
|
24
24745-64B60-000
Gasket,oil pan
SCVT:2WD; 1992-01-01~1992-11-01 |
24745-64B60-000 |
— | ||
|
25
|
25
09136-06112-000 BOLT(6X16)SCVT:2WD; 1992-01-01~1992-11-01 |
09136-06112-000 |
US $22.80 |
||
|
26
|
26
24718-64B60-000
マグネット,オイルパン
SCVT:2WD; 1992-01-01~1992-11-01 |
24718-64B60-000 |
— | ||
|
27
|
27
09247-12104-000 PLUG(12X9)SCVT:2WD; 1992-01-01~1992-11-01 |
09247-12104-000 |
from US $2.24 |
||
|
28
|
28
09168-12013-000 GASKET(11.8X22X1.2)Gasket, union SCVT:2WD; 1992-01-01~1992-11-01 |
09168-12013-000 |
from US $1.12 |
||
|
29
|
29
09247-10004-000
プラグ
SCVT:2WD; 1992-01-01~1992-11-01 |
09247-10004-000 |
— | ||
|
30
|
30
09168-10014-000
GASKET(10.5X16X1.4)
SCVT:2WD; 1992-01-01~1992-11-01 |
09168-10014-000 |
— | ||
|
31
|
31
09247-14034-000
PLUG
SCVT:2WD; 1992-01-01~1992-11-01 |
09247-14034-000 |
— | ||
|
32
|
32
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union SCVT:2WD; 1992-01-01~1992-11-01 |
09168-14015-000 |
from US $1.17 |
||
|
33
|
33
09246-05006-000 PLUG(1/8PT,H:5.5)SCVT:2WD; 1992-01-01~1992-11-01 |
09246-05006-000 |
from US $1.42 |
||
|
34
|
34
24791-64B80-000
スチフナ,トランスミッションケース
SCVT:2WD; 1992-01-01~1992-11-01 |
24791-64B80-000 |
— | ||
|
35
|
35
01550-10303-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-10303-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-1030B-000 BOLTBolt, axle housing rear SCVT:2WD; 1992-01-01~1992-11-01 |
01550-1030B-000 |
from US $5.07 |
||
|
35
|
35
01550-1030A-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-1030A-000 |
from US $1.12 |
||
|
36
|
36
11851-62B00-000 HOOKSCVT:2WD; 1992-01-01~1992-11-01 |
11851-62B00-000 |
US $5.02 |
||
|
37
|
37
01550-08203-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-0820B-000 BoltSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0820B-000 |
from US $0.91 |
||
|
37
|
37
01550-0820A-000 BOLTBolt, funnel bracket SCVT:2WD; 1992-01-01~1992-11-01 |
01550-0820A-000 |
from US $0.96 |
||
