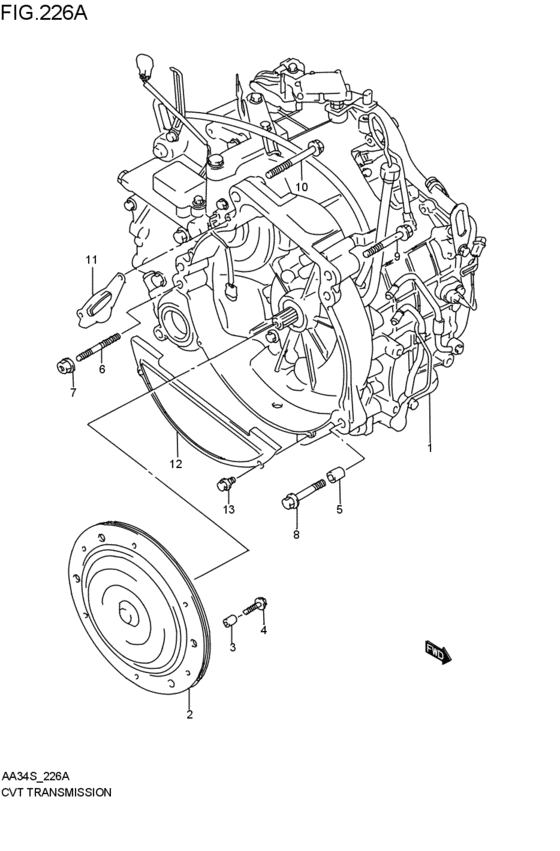

cvt - transmission assy (スズキコンティニユアリイバリアブルトランスミッション; SCVT:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-64810-000
SCVTアッシ
SCVT:2WD; 1992-01-01~1992-11-01 |
20002-64810-000 |
— | ||
|
2
|
2
22500-64B60-000
ダンパアッシ
SCVT:2WD; 1992-01-01~1992-11-01 |
22500-64B60-000 |
— | ||
|
3
|
3
04211-09149-000 PINDowel pin SCVT:2WD; 1992-01-01~1992-11-01 |
04211-09149-000 |
from US $0.91 |
||
|
4
|
4
09103-06140-000
ボルト,6X25
SCVT:2WD; 1992-01-01~1992-11-01 |
09103-06140-000 |
— | ||
|
5
|
5
04211-09129-000 PINPin SCVT:2WD; 1992-01-01~1992-11-01 |
04211-09129-000 |
from US $0.96 |
||
|
6
|
6
09108-10113-000 BOLT,STUDSCVT:2WD; 1992-01-01~1992-11-01 |
09108-10113-000 |
from US $1.92 |
||
|
7
|
7
08316-10103-000
Nut
SCVT:2WD; 1992-01-01~1992-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUTSCVT:2WD; 1992-01-01~1992-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
01550-10503-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-1050B-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-1050B-000 |
US $1.22 |
||
|
9
|
9
01550-10603-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-1060B-000 BoltSCVT:2WD; 1992-01-01~1992-11-01 |
01550-1060B-000 |
US $1.60 |
||
|
9
|
9
01550-1060A-000 BoltSCVT:2WD; 1992-01-01~1992-11-01 |
01550-1060A-000 |
from US $1.60 |
||
|
10
|
10
01550-10703-000
ボルト
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-10703-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1070A-000 BoltSCVT:2WD; 1992-01-01~1992-11-01 |
01550-1070A-000 |
from US $1.60 |
||
|
11
|
11
11311-64B60-000
プレート,クラッチハウジング,アッパ
SCVT:2WD; 1992-01-01~1992-11-01 |
11311-64B60-000 |
— | ||
|
12
|
12
11321-82000-000
プレート,クラッチハウジング,ロア
SCVT:2WD; 1992-01-01~1992-11-01 |
11321-82000-000 |
— | ||
| replacement | |||||
|
12
|
12
11320-83E01-000 PLATE,CLUTCH HSG LOWERSCVT:2WD; 1992-01-01~1992-11-01 |
11320-83E01-000 |
US $11.52 |
||
|
13
|
13
01550-06103-000
Bolt, front
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0610B-000 BoltBolt SCVT:2WD; 1992-01-01~1992-11-01 |
01550-0610B-000 |
from US $0.80 |
||
|
13
|
13
01550-0610A-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0610A-000 |
from US $0.80 |
||
