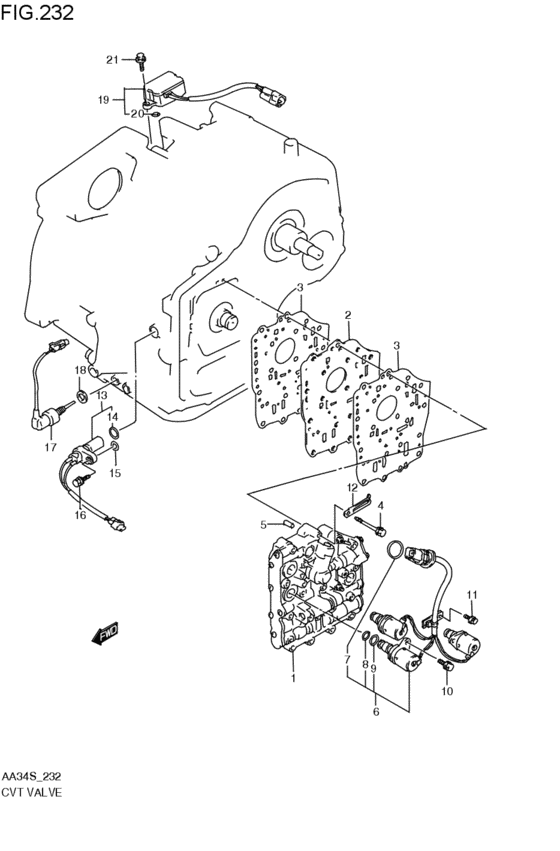

cvt - valve (スズキコンティニュアリイバリアブルトランスミッション; SCVT:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26500-64B70-000
ボディアッシ,コントロールバルブ
SCVT:2WD; 1992-01-01~1992-11-01 |
26500-64B70-000 |
— | ||
|
2
|
2
26516-64B61-000
プレート,バルブボディセパレータ
SCVT:2WD; 1992-01-01~1992-11-01 |
26516-64B61-000 |
— | ||
|
3
|
3
26517-64B60-000
ガスケット,バルブボディセパレータ
SCVT:2WD; 1992-01-01~1992-11-01 |
26517-64B60-000 |
— | ||
|
4
|
4
01550-06403-000
Bolt (green)
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-06403-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0640B-000 BoltSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0640B-000 |
from US $0.96 |
||
|
4
|
4
01550-0640A-000 BoltBolt (l:40) SCVT:2WD; 1992-01-01~1992-11-01 |
01550-0640A-000 |
from US $3.83 |
||
|
5
|
5
04221-05109-000 PINSCVT:2WD; 1992-01-01~1992-11-01 |
04221-05109-000 |
from US $0.80 |
||
|
6
|
6
26940-64B60-000
ソレノイドアッシ,オイルプレッシャコントロール
SCVT:2WD; 1992-01-01~1992-11-01 |
26940-64B60-000 |
— | ||
|
7
|
7
26947-64B60-000
Oリング,リードワイヤコネクタ
SCVT:2WD; 1992-01-01~1992-11-01 |
26947-64B60-000 |
— | ||
|
8
|
8
26949-64B60-000
Oリング,ソレノイド
SCVT:2WD; 1992-01-01~1992-11-01 |
26949-64B60-000 |
— | ||
|
9
|
9
26948-64B60-000
Oリング,ソレノイド
SCVT:2WD; 1992-01-01~1992-11-01 |
26948-64B60-000 |
— | ||
|
10
|
10
01550-06123-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp SCVT:2WD; 1992-01-01~1992-11-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
01550-05103-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-05103-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0510A-000 BoltSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0510A-000 |
from US $3.32 |
||
|
12
|
12
09404-06432-000
CLAMP(L:65)
SCVT:2WD; 1992-01-01~1992-11-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
12
|
12
09404-06039-000 Clamp(L:65)SCVT:2WD; 1992-01-01~1992-11-01 |
09404-06039-000 |
from US $1.82 |
||
|
13
|
13
26910-64B60-000
センサアッシ,スピード
SCVT:2WD; 1992-01-01~1992-11-01 |
26910-64B60-000 |
— | ||
|
14
|
14
26919-64B60-000
Oリング,スピードセンサ
SCVT:2WD; 1992-01-01~1992-11-01 |
26919-64B60-000 |
— | ||
|
15
|
15
09181-06001-000
シム,T:0.3
SCVT:2WD; 1992-01-01~1992-11-01 |
09181-06001-000 |
— | ||
|
15
|
15
09181-06002-000
シム,T:0.5
SCVT:2WD; 1992-01-01~1992-11-01 |
09181-06002-000 |
— | ||
|
16
|
16
01550-06203-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0620B-000 BOLTBolt, inspection cap SCVT:2WD; 1992-01-01~1992-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
17
|
17
26920-64B60-000
センサアッシ,オイルテンパレチャ
SCVT:2WD; 1992-01-01~1992-11-01 |
26920-64B60-000 |
— | ||
|
18
|
18
09168-10031-000 GASKET(10.2X20X2.3)SCVT:2WD; 1992-01-01~1992-11-01 |
09168-10031-000 |
from US $1.22 |
||
|
19
|
19
26930-64B60-000
SENSOR ASSY,OIL PRESSURE
SCVT:2WD; 1992-01-01~1992-11-01 |
26930-64B60-000 |
— | ||
|
20
|
20
26939-64B60-000
Oリング,オイルプレッシャセンサ
SCVT:2WD; 1992-01-01~1992-11-01 |
26939-64B60-000 |
— | ||
|
21
|
21
01550-06163-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0616B-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0616B-000 |
from US $0.76 |
||
|
21
|
21
01550-0616A-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0616A-000 |
from US $0.76 |
||
