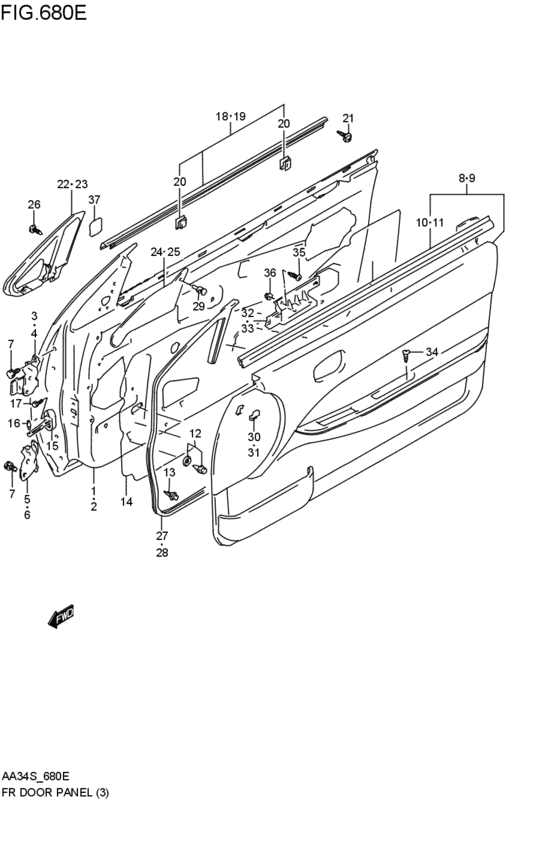

front door panel (2ドア; 2DR; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-50D21-000
Panel assy,front door,r
2DR; 1992-01-01~1992-11-01 |
68001-50D21-000 |
— | ||
|
2
|
2
68002-50D21-000
パネルアッシ,フロントドア,レフト
2DR; 1992-01-01~1992-11-01 |
68002-50D21-000 |
— | ||
|
3
|
3
69310-60B21-000 HINGE,FR DOOR UPR,R2DR; 1992-01-01~1992-11-01 |
69310-60B21-000 |
US $58.40 |
||
|
4
|
4
69330-60B21-000 HINGE,FR DOOR UPR,L2DR; 1992-01-01~1992-11-01 |
69330-60B21-000 |
US $48.21 |
||
|
5
|
5
69330-60B10-000 HINGE,FR DOOR,NO.2ライト; 2DR; 1992-01-01~1992-11-01 |
69330-60B10-000 |
US $37.17 |
||
|
6
|
6
69310-60B10-000 HINGE,FR DOOR,NO.1レフト; 2DR; 1992-01-01~1992-11-01 |
69310-60B10-000 |
US $58.40 |
||
|
7
|
7
09118-08156-000 BOLT(8X25)2DR; 1992-01-01~1992-11-01 |
09118-08156-000 |
US $19.50 |
||
|
8
|
8
83710-69E50-N85
トリム,フロントドア,ライト
ブラック; 2DR; 1992-01-01~1992-11-01 |
83710-69E50-N85 |
— | ||
|
9
|
9
83720-69E50-N85
トリム,フロントドア,レフト
ブラック; 2DR; 1992-01-01~1992-11-01 |
83720-69E50-N85 |
— | ||
|
10
|
10
83851-50D10-000
ウェザストリップ,フロントドアインナ,ライト
2DR; 1992-01-01~1992-11-01 |
83851-50D10-000 |
— | ||
|
11
|
11
83852-50D10-000
Weatherstrip,fr door inner,l
2DR; 1992-01-01~1992-11-01 |
83852-50D10-000 |
— | ||
|
12
|
12
09409-08320-000 CLIP2DR; 1992-01-01~1992-11-01 |
09409-08320-000 |
from US $1.15 |
||
|
13
|
13
09409-08320-000 CLIP2DR; 1992-01-01~1992-11-01 |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
83911-60X50-000
カバー,ドアシーリング,600X1200
2DR; 1992-01-01~1992-11-01 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
14
|
14
83911-60X52-000 COVER,DR SEALING2DR; 1992-01-01~1992-11-01 |
83911-60X52-000 |
US $6.06 |
||
|
15
|
15
81810-60B00-000
ストップ,ドアオープン
2DR; 1992-01-01~1992-11-01 |
81810-60B00-000 |
— | ||
| replacement | |||||
|
15
|
15
81810-60B10-000 STOP,FRONT DOOR OPEN2DR; 1992-01-01~1992-11-01 |
81810-60B10-000 |
US $26.86 |
||
|
16
|
16
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY2DR; 1992-01-01~1992-11-01 |
81831-70B00-000 |
US $1.60 |
||
|
17
|
17
01580-06253-000
Bolt, ignition
2DR; 1992-01-01~1992-11-01 |
01580-06253-000 |
— | ||
| replacement | |||||
|
17
|
17
01580-0625A-000 Bolt2DR; 1992-01-01~1992-11-01 |
01580-0625A-000 |
US $0.96 |
||
|
18
|
18
83811-50D11-000
Weatherstrip,fr door out,r
2DR; 1992-01-01~1992-11-01 |
83811-50D11-000 |
— | ||
|
19
|
19
83821-50D11-000
Weatherstrip,fr door out,l
2DR; 1992-01-01~1992-11-01 |
83821-50D11-000 |
— | ||
|
20
|
20
83813-50D00-000 STABILIZER,OUTER WEATHERSTRIP2DR; 1992-01-01~1992-11-01 |
83813-50D00-000 |
US $25.21 |
||
|
21
|
21
03541-04103-000
Screw
2DR; 1992-01-01~1992-11-01 |
03541-04103-000 |
— | ||
| replacement | |||||
|
21
|
21
03541-0410A-000 SCREW2DR; 1992-01-01~1992-11-01 |
03541-0410A-000 |
from US $0.80 |
||
|
22
|
22
83954-50D10-5PK
ガーニッシュ,サッシュカバー,ライト(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
83954-50D10-5PK |
— | ||
|
23
|
23
83959-50D10-5PK
Garnish,sash cover,l(black)
ブラック; 2DR; 1992-01-01~1992-11-01 |
83959-50D10-5PK |
— | ||
|
24
|
24
83961-50D01-5ES
ガーニッシュ,フロントドアインナ,ライト(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
83961-50D01-5ES |
— | ||
|
25
|
25
83966-50D20-5ES
GARNISH,FR DR INR,L
ブラック; 2DR; 1992-01-01~1992-11-01 |
83966-50D20-5ES |
— | ||
|
26
|
26
09409-04304-000 CLIP2DR; 1992-01-01~1992-11-01 |
09409-04304-000 |
from US $1.13 |
||
|
27
|
27
84641-50D00-000
Weatherstrip,front door opng,r
2DR; 1992-01-01~1992-11-01 |
84641-50D00-000 |
— | ||
|
28
|
28
84651-50D00-000
WEATHERSTRIP,FR DR OPNG,L
2DR; 1992-01-01~1992-11-01 |
84651-50D00-000 |
— | ||
|
29
|
29
83971-50D00-5ES
クリップ,インナガーニッシュ(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
83971-50D00-5ES |
— | ||
|
30
|
30
83755-61E00-5ES
CAP,FR DR TRIM,R
ブラック; 2DR; 1992-01-01~1992-11-01 |
83755-61E00-5ES |
— | ||
|
31
|
31
83756-61E00-5ES
CAP,FR DR TRIM,L
ブラック; 2DR; 1992-01-01~1992-11-01 |
83756-61E00-5ES |
— | ||
|
32
|
32
84471-60B00-000
BRACKET,FR DR TRIM,R
2DR; 1992-01-01~1992-11-01 |
84471-60B00-000 |
— | ||
|
33
|
33
84476-60B00-000
BRACKET,FR DR TRIM,L
2DR; 1992-01-01~1992-11-01 |
84476-60B00-000 |
— | ||
|
34
|
34
02142-06163-000
Screw
2DR; 1992-01-01~1992-11-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
34
|
34
02142-0616A-000 SCREW2DR; 1992-01-01~1992-11-01 |
02142-0616A-000 |
from US $0.76 |
||
|
35
|
35
03242-06253-000
Screw
2DR; 1992-01-01~1992-11-01 |
03242-06253-000 |
— | ||
| replacement | |||||
|
35
|
35
03241-0625A-000 SCREW2DR; 1992-01-01~1992-11-01 |
03241-0625A-000 |
from US $1.87 |
||
|
36
|
36
09148-06007-000 NUT2DR; 1992-01-01~1992-11-01 |
09148-06007-000 |
from US $0.86 |
||
|
37
|
37
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 2DR; 1992-01-01~1992-11-01 |
84761-50X50-000 |
US $6.72 |
||
