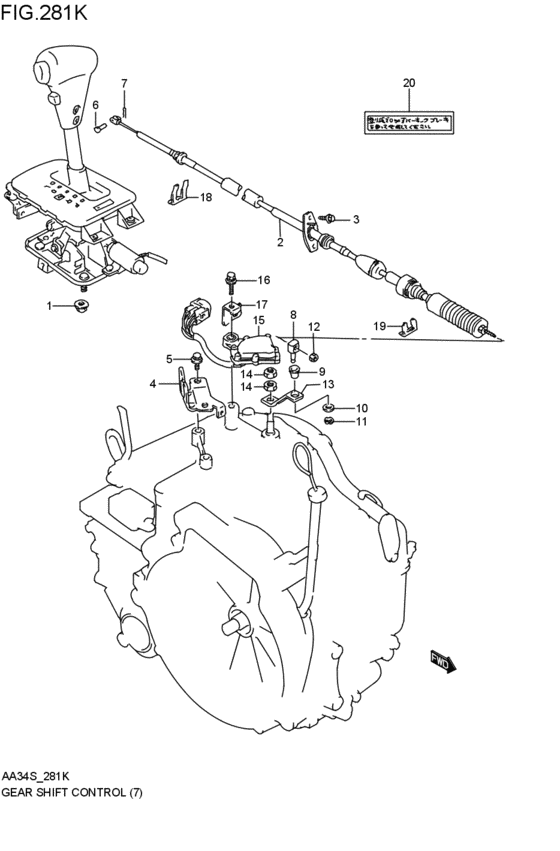

gearlever control (スズキコンティニュアリイバリアブルトランスミッション; SCVT:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
08316-10083-000
Nut
SCVT:2WD; 1992-01-01~1992-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
1
|
1
08316-1008B-000 NUTSCVT:2WD; 1992-01-01~1992-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
2
|
2
28210-64B70-000
ケーブルアッシ,セレクト
SCVT:2WD; 1992-01-01~1992-11-01 |
28210-64B70-000 |
— | ||
|
3
|
3
01550-06163-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0616B-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0616B-000 |
from US $0.76 |
||
|
3
|
3
01550-0616A-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0616A-000 |
from US $0.76 |
||
|
4
|
4
28220-64B70-000
ブラケット,セレクトケーブル
SCVT:2WD; 1992-01-01~1992-11-01 |
28220-64B70-000 |
— | ||
|
5
|
5
01550-08163-000
Bolt, holder
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0816B-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
01550-0816A-000 BOLTBolt, rear SCVT:2WD; 1992-01-01~1992-11-01 |
01550-0816A-000 |
from US $0.91 |
||
|
6
|
6
09200-06046-000 PINSCVT:2WD; 1992-01-01~1992-11-01 |
09200-06046-000 |
US $23.90 |
||
|
7
|
7
09385-06004-000
スナップピン
SCVT:2WD; 1992-01-01~1992-11-01 |
09385-06004-000 |
— | ||
| replacement | |||||
|
7
|
7
09385-06001-000 CLIPSCVT:2WD; 1992-01-01~1992-11-01 |
09385-06001-000 |
from US $4.69 |
||
|
8
|
8
28291-78233-000 JOINT,CABLESCVT:2WD; 1992-01-01~1992-11-01 |
28291-78233-000 |
US $12.32 |
||
|
9
|
9
09305-08012-000 BUSHSCVT:2WD; 1992-01-01~1992-11-01 |
09305-08012-000 |
US $1.28 |
||
|
10
|
10
08322-01083-000
WASHER
SCVT:2WD; 1992-01-01~1992-11-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0108B-000 WASHERSCVT:2WD; 1992-01-01~1992-11-01 |
08322-0108B-000 |
from US $0.80 |
||
|
10
|
10
08322-0108A-000 WASHERSCVT:2WD; 1992-01-01~1992-11-01 |
08322-0108A-000 |
from US $0.80 |
||
|
11
|
11
08332-11063-000
E ring
SCVT:2WD; 1992-01-01~1992-11-01 |
08332-11063-000 |
— | ||
| replacements | |||||
|
11
|
11
08332-1106B-000 E RINGCirclip SCVT:2WD; 1992-01-01~1992-11-01 |
08332-1106B-000 |
from US $0.90 |
||
|
11
|
11
08332-1106A-000 E RINGE ring, pinion SCVT:2WD; 1992-01-01~1992-11-01 |
08332-1106A-000 |
from US $0.77 |
||
|
12
|
12
08310-00063-000
Nut
SCVT:2WD; 1992-01-01~1992-11-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0006B-000 NUTNut gear shift link rod SCVT:2WD; 1992-01-01~1992-11-01 |
08310-0006B-000 |
from US $0.76 |
||
|
12
|
12
08310-0006A-000 NUTSCVT:2WD; 1992-01-01~1992-11-01 |
08310-0006A-000 |
from US $0.76 |
||
|
13
|
13
28510-64B70-000
レバー,シフトアウタ
SCVT:2WD; 1992-01-01~1992-11-01 |
28510-64B70-000 |
— | ||
|
14
|
14
09140-12037-000 NUTSCVT:2WD; 1992-01-01~1992-11-01 |
09140-12037-000 |
from US $4.86 |
||
|
15
|
15
37720-60B51-000
スイッチアッシ,シフトレバー
SCVT:2WD; 1992-01-01~1992-11-01 |
37720-60B51-000 |
— | ||
|
16
|
16
01580-08253-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01580-08253-000 |
— | ||
| replacement | |||||
|
16
|
16
01580-0825A-000 BoltSCVT:2WD; 1992-01-01~1992-11-01 |
01580-0825A-000 |
from US $4.34 |
||
|
17
|
17
37728-60B50-000
ブラケット,シフトセンサコネクタ
SCVT:2WD; 1992-01-01~1992-11-01 |
37728-60B50-000 |
— | ||
|
18
|
18
09383-13001-000 E RINGSCVT:2WD; 1992-01-01~1992-11-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
18
|
18
09383-13003-000 E-RINGSCVT:2WD; 1992-01-01~1992-11-01 |
09383-13003-000 |
from US $1.60 |
||
|
19
|
19
09383-19001-000 E RINGClip CHKK; SCVT:2WD; 1992-01-01~1992-11-01 |
09383-19001-000 |
from US $2.72 |
||
|
20
|
20
28157-64B60-000
エンブレム,パーキングブレーキ
SCVT:2WD; 1992-01-01~1992-11-01 |
28157-64B60-000 |
— | ||
