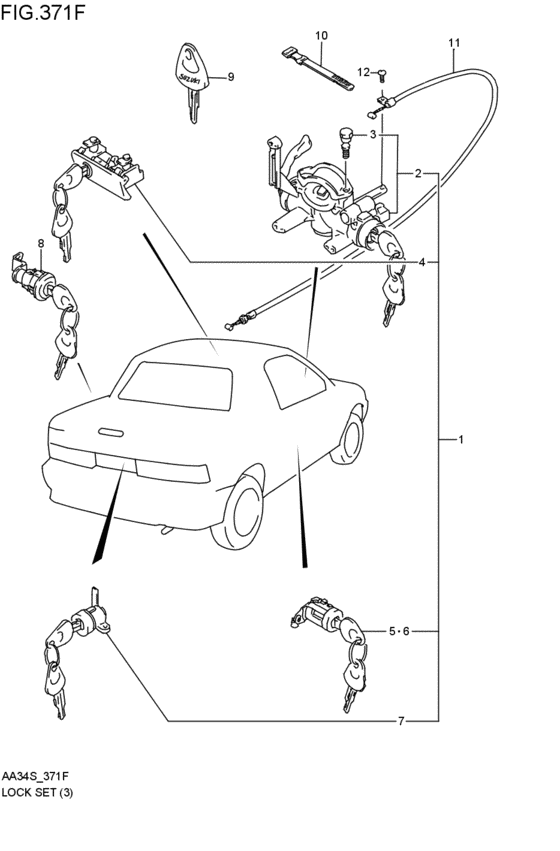

lock set (2DR:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37102-50870-5ES
ロックセット
ブラック; 2DR:2WD:SCVT; 1992-01-01~1992-11-01 |
37102-50870-5ES |
— | ||
|
2
|
2
37101-62860-000
LOCK ASSY,STEERING
2DR:2WD:SCVT; 1992-01-01~1992-11-01 |
37101-62860-000 |
— | ||
|
3
|
3
37152-60B00-000 BOLT,STEERING LOCK2DR:2WD; 1992-01-01~1992-11-01 |
37152-60B00-000 |
US $4.27 |
||
|
4
|
4
73400-60830-5ES
LOCK SET,GLOVE BOX DR
ブラック; 2DR:2WD; 1992-01-01~1992-11-01 |
73400-60830-5ES |
— | ||
|
5
|
5
82200-61840-000 CYLINDER,FR DR LOCK,R2DR:2WD; 1992-01-01~1992-11-01 |
82200-61840-000 |
US $57.76 |
||
|
6
|
6
82200-61870-000 CYLINDER,FR DR LOCK,L2DR:2WD; 1992-01-01~1992-11-01 |
82200-61870-000 |
US $49.68 |
||
|
7
|
7
82501-50810-000
Cylinder assy,trunk lid lock
2DR:2WD; 1992-01-01~1992-11-01 |
82501-50810-000 |
— | ||
|
8
|
8
89300-61820-000 CYLINDER SET,FUEL LID LOCK2DR:2WD; 1992-01-01~1992-11-01 |
89300-61820-000 |
US $40.48 |
||
|
9
|
9
37145-60B10-000 KEY,BLANKオプション; 2DR:2WD; 1992-01-01~1992-11-01 |
37145-60B10-000 |
US $36.80 |
||
|
10
|
10
09407-22403-000 CLAMP(L:220)2DR:2WD; 1992-01-01~1992-11-01 |
09407-22403-000 |
US $12.90 |
||
|
11
|
11
38897-60B30-000
ケーブル,キーインタロック
2DR:2WD:SCVT; 1992-01-01~1992-11-01 |
38897-60B30-000 |
— | ||
|
12
|
12
09125-05061-000 SCREW(5X8)2DR:2WD; 1992-01-01~1992-11-01 |
09125-05061-000 |
US $9.60 |
