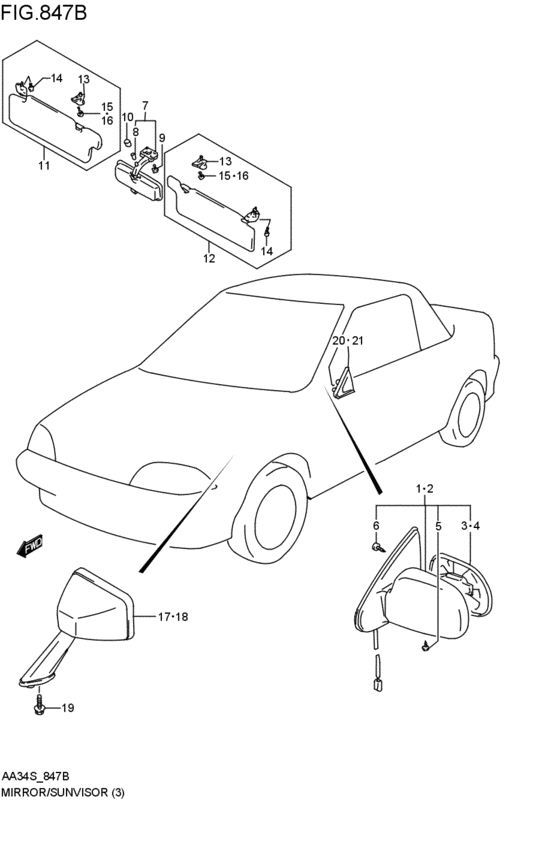

mirror / sun visor (2WD:2DR; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-62B00-1FH
ミラー,ドア,ライト(リモコン)(ブルー)
ブル-,リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84701-62B00-1FH |
— | ||
| replacement | |||||
|
1
|
1
84701-62B00-26U
Mirror,door,rh(remocon)(white)
ブル-,リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84701-62B00-26U |
— | ||
|
1
|
1
84701-62B00-15P
ミラー,ドア,ライト(リモコン)(レッド)
レッド,リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84701-62B00-15P |
— | ||
| replacement | |||||
|
1
|
1
84701-62B00-26U
Mirror,door,rh(remocon)(white)
レッド,リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84701-62B00-26U |
— | ||
|
2
|
2
84702-62B00-1FH
ミラー,ドア,レフト(リモコン)(ブルー)
ブル-,リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84702-62B00-1FH |
— | ||
| replacement | |||||
|
2
|
2
84702-62B00-26U
Mirror,door,lh(remocon)(white)
ブル-,リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84702-62B00-26U |
— | ||
|
2
|
2
84702-62B00-15P
ミラー,ドア,レフト(リモコン)(レッド)
レッド,リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84702-62B00-15P |
— | ||
| replacement | |||||
|
2
|
2
84702-62B00-26U
Mirror,door,lh(remocon)(white)
レッド,リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84702-62B00-26U |
— | ||
|
3
|
3
84720-62B00-000
MIRROR S/ASSY,OUT RR VIEW,R
リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84720-62B00-000 |
— | ||
|
4
|
4
84760-62B00-000
MIRROR S/ASSY,OUT RR VIEW,L
リモコンミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84760-62B00-000 |
— | ||
|
5
|
5
03511-04103-000
Tapping screw
2WD:2DR; 1992-01-01~1992-11-01 |
03511-04103-000 |
— | ||
| replacement | |||||
|
5
|
5
03511-0410A-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
03511-0410A-000 |
from US $2.40 |
||
|
6
|
6
02142-05207-000 SCREWScrew, silencer cover 2WD:2DR; 1992-01-01~1992-11-01 |
02142-05207-000 |
from US $0.80 |
||
|
7
|
7
84703-60B00-5PK MIRROR,INS RR VIEWブラック; 2WD:2DR; 1992-01-01~1992-11-01 |
84703-60B00-5PK |
US $125.41 |
||
|
8
|
8
84781-60B00-000 SUPPORT,INSIDE MIRROR2WD:2DR; 1992-01-01~1992-11-01 |
84781-60B00-000 |
US $3.31 |
||
|
9
|
9
02142-05163-000
Bolt
2WD:2DR; 1992-01-01~1992-11-01 |
02142-05163-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0516B-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
02142-0516B-000 |
from US $0.80 |
||
|
9
|
9
02142-0516A-000 SCREWScrew 2WD:2DR; 1992-01-01~1992-11-01 |
02142-0516A-000 |
from US $0.76 |
||
|
10
|
10
84782-60A00-000 RUBBER2WD:2DR; 1992-01-01~1992-11-01 |
84782-60A00-000 |
US $2.24 |
||
|
11
|
11
84801-60881-6EN
サンバイザアッシ,ライト(ブラック)
ブラック; 2WD:2DR:SCVT; 1992-01-01~1992-11-01 |
84801-60881-6EN |
— | ||
|
12
|
12
84800-61852-6EN
サンバイザアッシ,レフト(ブラック)
ブラック; 2WD:2DR; 1992-01-01~1992-11-01 |
84800-61852-6EN |
— | ||
|
13
|
13
84851-60B00-5ES HOLDER,SUN VISORブラック; 2WD:2DR; 1992-01-01~1992-11-01 |
84851-60B00-5ES |
US $2.56 |
||
|
14
|
14
02122-05163-000
Screw, inner
2WD:2DR; 1992-01-01~1992-11-01 |
02122-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
02122-0516B-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
02122-0516B-000 |
from US $0.80 |
||
|
15
|
15
03212-05163-000
Screw
2WD:2DR; 1992-01-01~1992-11-01 |
03212-05163-000 |
— | ||
| replacements | |||||
|
15
|
15
03212-0516B-000
SCREW
2WD:2DR; 1992-01-01~1992-11-01 |
03212-0516B-000 |
— | ||
|
15
|
15
13765-48GV0-000 Screw2WD:2DR; 1992-01-01~1992-11-01 |
13765-48GV0-000 |
from US $3.55 |
||
|
16
|
16
02122-05163-000
Screw, inner
2WD:2DR; 1992-01-01~1992-11-01 |
02122-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
02122-0516B-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
02122-0516B-000 |
from US $0.80 |
||
|
17
|
17
84700-68811-5PK
フェンダミラーセット,ライト(ブラック)
ブラック フェンダーミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84700-68811-5PK |
— | ||
|
18
|
18
84700-68821-5PK
フェンダミラーセット,レフト(ブラック)
ブラック フェンダーミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
84700-68821-5PK |
— | ||
|
19
|
19
01580-08353-000
Bolt
フェンダーミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
01580-08353-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-0835B-000 Boltフェンダーミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
01580-0835B-000 |
US $21.70 |
||
|
20
|
20
83951-60B00-000
Garnish,fr door outer,r
フェンダーミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
83951-60B00-000 |
— | ||
|
21
|
21
83956-60B00-000
ガーニッシュ,ドアアウタ,レフト
フェンダーミラー; 2WD:2DR; 1992-01-01~1992-11-01 |
83956-60B00-000 |
— | ||
