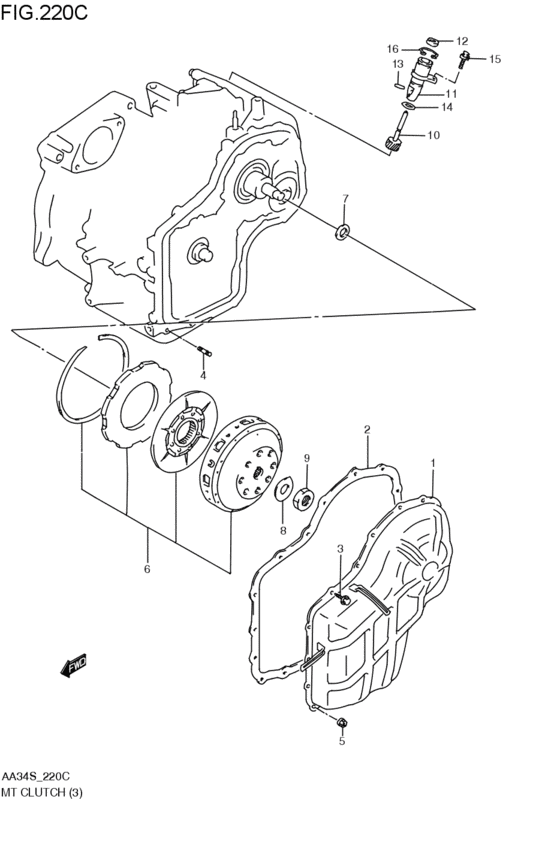

mt - clutch (スズキコンティニュアリイバリアブルトランスミッション; SCVT:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24730-64B60-000
カバー,トランスミッションサイド
SCVT:2WD; 1992-01-01~1992-11-01 |
24730-64B60-000 |
— | ||
|
2
|
2
24735-64B60-000
Gasket,transmission side cover
SCVT:2WD; 1992-01-01~1992-11-01 |
24735-64B60-000 |
— | ||
|
3
|
3
09136-06112-000 BOLT(6X16)SCVT:2WD; 1992-01-01~1992-11-01 |
09136-06112-000 |
US $22.80 |
||
|
4
|
4
01421-06123-000
Stud m6x1x24
SCVT:2WD; 1992-01-01~1992-11-01 |
01421-06123-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0612A-000 BOLT,STUDSCVT:2WD; 1992-01-01~1992-11-01 |
01421-0612A-000 |
from US $1.12 |
||
|
5
|
5
08361-15063-000
Nut
SCVT:2WD; 1992-01-01~1992-11-01 |
08361-15063-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-1506A-000 NUTSCVT:2WD; 1992-01-01~1992-11-01 |
08361-1506A-000 |
from US $0.74 |
||
|
6
|
6
22000-64B70-000
クラッチアッシ,スターティング
SCVT:2WD; 1992-01-01~1992-11-01 |
22000-64B70-000 |
— | ||
|
7
|
7
09167-20026-000
ワッシャ,20X29X0.8
SCVT:2WD; 1992-01-01~1992-11-01 |
09167-20026-000 |
— | ||
|
8
|
8
09166-16017-000
ワッシャ,16.5X50X1
SCVT:2WD; 1992-01-01~1992-11-01 |
09166-16017-000 |
— | ||
|
9
|
9
09140-16030-000
ナット
SCVT:2WD; 1992-01-01~1992-11-01 |
09140-16030-000 |
— | ||
|
10
|
10
26131-64B70-000
ギヤ,スピードメータドリブン
NT:16; SCVT:2WD; 1992-01-01~1992-11-01 |
26131-64B70-000 |
— | ||
|
11
|
11
29431-64B60-000
ケース,スピードメータドリブンギヤ
SCVT:2WD; 1992-01-01~1992-11-01 |
29431-64B60-000 |
— | ||
|
12
|
12
09282-08001-000 SEAL,OIL(8X16X5)SCVT:2WD; 1992-01-01~1992-11-01 |
09282-08001-000 |
US $2.31 |
||
|
13
|
13
09205-03012-000 PIN,SPRING(3X16)Pin, gear SCVT:2WD; 1992-01-01~1992-11-01 |
09205-03012-000 |
from US $3.15 |
||
|
14
|
14
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) SCVT:2WD; 1992-01-01~1992-11-01 |
09280-17002-000 |
from US $2.56 |
||
|
15
|
15
01550-06163-000
Bolt
SCVT:2WD; 1992-01-01~1992-11-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0616B-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0616B-000 |
from US $0.76 |
||
|
15
|
15
01550-0616A-000 BOLTSCVT:2WD; 1992-01-01~1992-11-01 |
01550-0616A-000 |
from US $0.76 |
||
|
16
|
16
26191-61D01-000
クリップ,スピードメータケース
SCVT:2WD; 1992-01-01~1992-11-01 |
26191-61D01-000 |
— | ||
| replacement | |||||
|
16
|
16
26191-61D0V-000 CLIP,SPEEDOMETER CASESCVT:2WD; 1992-01-01~1992-11-01 |
26191-61D0V-000 |
US $12.62 |
||
