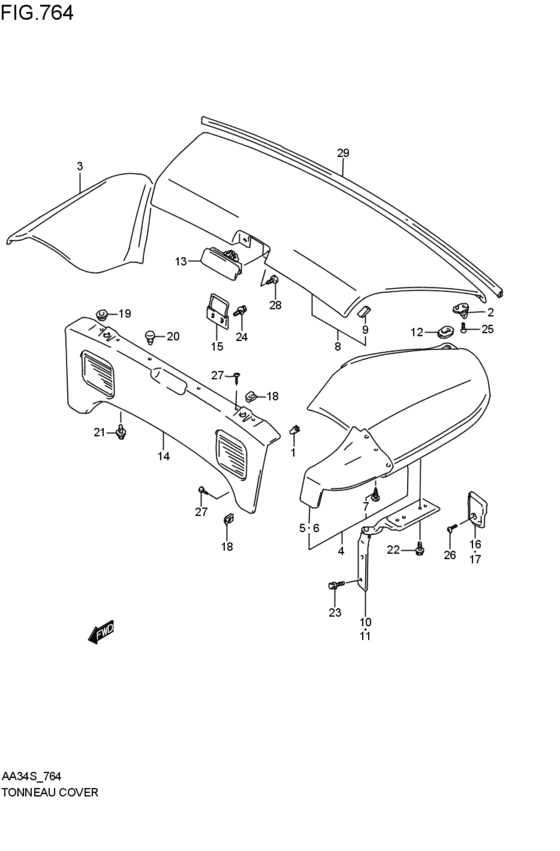

トノーカバー (2DR; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73461-82000-000
CUSHION,GLOVE BOX LID SIDE
2DR; 1992-01-01~1992-11-01 |
73461-82000-000 |
— | ||
|
2
|
2
75432-50D00-000
HOOK,TONNEAU CTR
2DR; 1992-01-01~1992-11-01 |
75432-50D00-000 |
— | ||
|
3
|
3
76410-50D00-5ES
カバー,トノーサイド,ライト(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
76410-50D00-5ES |
— | ||
| replacement | |||||
|
3
|
3
76410-50D00-6MK
COVER,TONNEAU SIDE,R
ブラック; 2DR; 1992-01-01~1992-11-01 |
76410-50D00-6MK |
— | ||
|
4
|
4
76420-50D00-5ES
カバー,トノーサイド,レフト(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
76420-50D00-5ES |
— | ||
|
5
|
5
76470-50D10-5FE
カバー,トップスタックリンク,ライト(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
76470-50D10-5FE |
— | ||
|
6
|
6
76480-50D10-5FE
カバー,トップスタックリンク,レフト(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
76480-50D10-5FE |
— | ||
|
7
|
7
09132-04027-000
スクリュ,4X6
2DR; 1992-01-01~1992-11-01 |
09132-04027-000 |
— | ||
|
8
|
8
76430-50D00-5ES
カバー,トノー,センタ(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
76430-50D00-5ES |
— | ||
|
9
|
9
76433-50D00-000
PAD,TONNEAU CENTER
2DR; 1992-01-01~1992-11-01 |
76433-50D00-000 |
— | ||
|
10
|
10
76450-50D00-000
ヒンジ,トノーサイド,ライト
2DR; 1992-01-01~1992-11-01 |
76450-50D00-000 |
— | ||
|
11
|
11
76460-50D00-000
Hinge comp,tonneau side,l
2DR; 1992-01-01~1992-11-01 |
76460-50D00-000 |
— | ||
|
12
|
12
76531-50D00-000
Cushion,tonneau side
2DR; 1992-01-01~1992-11-01 |
76531-50D00-000 |
— | ||
|
13
|
13
76540-50D00-0TC
ロックアッシ,センタトノー
ブラック; 2DR; 1992-01-01~1992-11-01 |
76540-50D00-0TC |
— | ||
|
14
|
14
76561-50D00-5ES
トリム,シートベルトタワータイ(ブラック)
ブラック; 2DR; 1992-01-01~1992-11-01 |
76561-50D00-5ES |
— | ||
|
15
|
15
76570-50D00-000
ストライカ,センタトノー
2DR; 1992-01-01~1992-11-01 |
76570-50D00-000 |
— | ||
|
16
|
16
76581-50D01-000
ストッパ,トノーサイド,ライト
2DR; 1992-01-01~1992-11-01 |
76581-50D01-000 |
— | ||
|
17
|
17
76582-50D01-000
ストッパ,トノーサイド,レフト
2DR; 1992-01-01~1992-11-01 |
76582-50D01-000 |
— | ||
|
18
|
18
09148-05013-000 NUT2DR; 1992-01-01~1992-05-01 |
09148-05013-000 |
from US $0.91 |
||
|
19
|
19
76563-50D00-000 GROMMET,CENTER TONNEAU2DR; 1992-01-01~1992-11-01 |
76563-50D00-000 |
US $2.72 |
||
|
20
|
20
76562-50D00-000 CUSHION,CTR TONNEAUPlug 2DR; 1992-01-01~1992-11-01 |
76562-50D00-000 |
US $2.58 |
||
|
21
|
21
09409-07308-5PK CLIP(BLACK)ブラック; 2DR; 1992-01-01~1992-05-01 |
09409-07308-5PK |
from US $0.95 |
||
|
22
|
22
01550-06103-000
Bolt, front
2DR; 1992-01-01~1992-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0610B-000 BoltBolt 2DR; 1992-01-01~1992-11-01 |
01550-0610B-000 |
from US $0.80 |
||
|
22
|
22
01550-0610A-000 BOLT2DR; 1992-01-01~1992-11-01 |
01550-0610A-000 |
from US $0.80 |
||
|
23
|
23
01550-06163-000
Bolt
2DR; 1992-01-01~1992-11-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0616B-000 BOLT2DR; 1992-01-01~1992-11-01 |
01550-0616B-000 |
from US $0.76 |
||
|
23
|
23
01550-0616A-000 BOLT2DR; 1992-01-01~1992-11-01 |
01550-0616A-000 |
from US $0.76 |
||
|
24
|
24
01550-06163-000
Bolt
2DR; 1992-01-01~1992-11-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0616B-000 BOLT2DR; 1992-01-01~1992-11-01 |
01550-0616B-000 |
from US $0.76 |
||
|
24
|
24
01550-0616A-000 BOLT2DR; 1992-01-01~1992-11-01 |
01550-0616A-000 |
from US $0.76 |
||
|
25
|
25
02122-06253-000
Screw (6x25)
2DR; 1992-01-01~1992-11-01 |
02122-06253-000 |
— | ||
| replacement | |||||
|
25
|
25
02122-0625A-000 SCREW2DR; 1992-01-01~1992-11-01 |
02122-0625A-000 |
from US $0.80 |
||
|
26
|
26
02142-06123-000
Screw
2DR; 1992-01-01~1992-11-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
02142-0612B-000 SCREW2DR; 1992-01-01~1992-11-01 |
02142-0612B-000 |
from US $0.76 |
||
|
26
|
26
02142-0612A-000 SCREW2DR; 1992-01-01~1992-11-01 |
02142-0612A-000 |
from US $0.80 |
||
|
27
|
27
03242-05163-000
Screw
2DR; 1992-01-01~1992-05-01 |
03242-05163-000 |
— | ||
| replacement | |||||
|
27
|
27
03241-0516A-000 SCREW2DR; 1992-01-01~1992-05-01 |
03241-0516A-000 |
from US $0.76 |
||
|
28
|
28
09125-06092-000 SCREW(6X12)Screw, front & lower 2DR; 1992-01-01~1992-11-01 |
09125-06092-000 |
from US $3.69 |
||
|
29
|
29
76251-50D00-000
PROTECTOR,QTR TIE
2DR; 1992-01-01~1992-11-01 |
76251-50D00-000 |
— | ||
