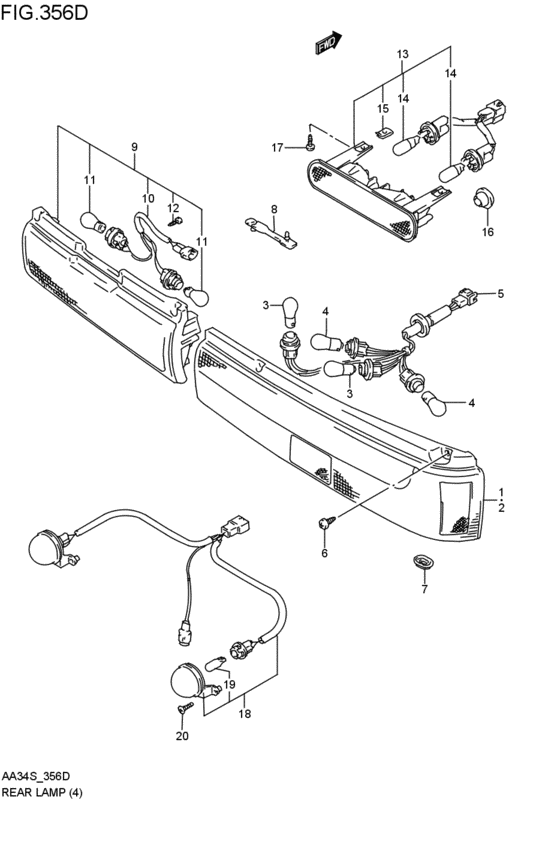

rear lamp (2WD:2DR; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-60E30-000 LAMP UNIT,RR COMB,R2WD:2DR; 1992-01-01~1992-11-01 |
35650-60E30-000 |
US $276 |
||
|
2
|
2
35670-60E30-000 LAMP UNIT,RR COMB,L2WD:2DR; 1992-01-01~1992-11-01 |
35670-60E30-000 |
US $373.92 |
||
|
3
|
3
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; 2WD:2DR; 1992-01-01~1992-11-01 |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; 2WD:2DR; 1992-01-01~1992-11-01 |
09471-12128-000 |
from US $7.20 |
||
|
4
|
4
09471-12045-000 BULB(12V21W)STANLEY,45957E; 2WD:2DR; 1992-01-01~1992-11-01 |
09471-12045-000 |
from US $2.54 |
||
|
5
|
5
35655-60E30-000 SOCKET,RR COMB LAMP2WD:2DR; 1992-01-01~1992-11-01 |
35655-60E30-000 |
US $58.51 |
||
|
6
|
6
09136-06116-000
スクリュ,6X16
2WD:2DR; 1992-01-01~1992-11-01 |
09136-06116-000 |
— | ||
| replacement | |||||
|
6
|
6
09136-06116-XC0
SCREW(6X16)
2WD:2DR; 1992-01-01~1992-11-01 |
09136-06116-XC0 |
— | ||
|
7
|
7
35659-60B10-000 GROMMET,LAMP2WD:2DR; 1992-01-01~1992-11-01 |
35659-60B10-000 |
US $1.55 |
||
|
8
|
8
09407-05403-000 CLAMP,L:882WD:2DR; 1992-01-01~1992-11-01 |
09407-05403-000 |
from US $0.91 |
||
|
9
|
9
36570-60E01-000
LAMP ASSY,RR FOG
2WD:2DR; 1992-01-01~1992-11-01 |
36570-60E01-000 |
— | ||
|
10
|
10
36577-60E00-000 SOCKET,REAR FOG LAMP2WD:2DR; 1992-01-01~1992-11-01 |
36577-60E00-000 |
US $22.26 |
||
|
11
|
11
09471-12045-000 BULB(12V21W)STANLEY,A4957E; 2WD:2DR; 1992-01-01~1992-11-01 |
09471-12045-000 |
from US $2.54 |
||
|
12
|
12
03511-04163-000
Screw
2WD:2DR; 1992-01-01~1992-11-01 |
03511-04163-000 |
— | ||
| replacement | |||||
|
12
|
12
03511-0416A-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
03511-0416A-000 |
from US $2.45 |
||
|
13
|
13
35810-50D00-000
Lamp assy,high mt stop
2WD:2DR; 1992-01-01~1992-11-01 |
35810-50D00-000 |
— | ||
|
14
|
14
09471-12114-000 BULB(12V10W,TOKAI DENSO)TOKAI DENSO; 2WD:2DR; 1992-01-01~1992-11-01 |
09471-12114-000 |
US $2.56 |
||
|
15
|
15
35826-50D00-000
ナット,ハイマウントストップランプ
2WD:2DR; 1992-01-01~1992-11-01 |
35826-50D00-000 |
— | ||
|
16
|
16
09308-07004-000 GROMMET2WD:2DR; 1992-01-01~1992-11-01 |
09308-07004-000 |
from US $3.25 |
||
|
17
|
17
03142-05163-000
Screw
2WD:2DR; 1992-01-01~1992-11-01 |
03142-05163-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0516A-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
03141-0516A-000 |
from US $0.80 |
||
|
18
|
18
35910-60E30-000
Lamp assy,license
2WD:2DR; 1992-01-01~1992-11-01 |
35910-60E30-000 |
— | ||
|
19
|
19
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2WD:2DR; 1992-01-01~1992-11-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
19
|
19
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2WD:2DR; 1992-01-01~1992-11-01 |
09471-12216-000 |
from US $2.84 |
||
|
20
|
20
03541-04123-000
Screw
2WD:2DR; 1992-01-01~1992-11-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
20
|
20
03541-0412B-000 SCREWScrew, plate 2WD:2DR; 1992-01-01~1992-11-01 |
03541-0412B-000 |
from US $0.80 |
||
|
20
|
20
03541-0412A-000 SCREWScrew, speedometer 2WD:2DR; 1992-01-01~1992-11-01 |
03541-0412A-000 |
from US $0.80 |
||
