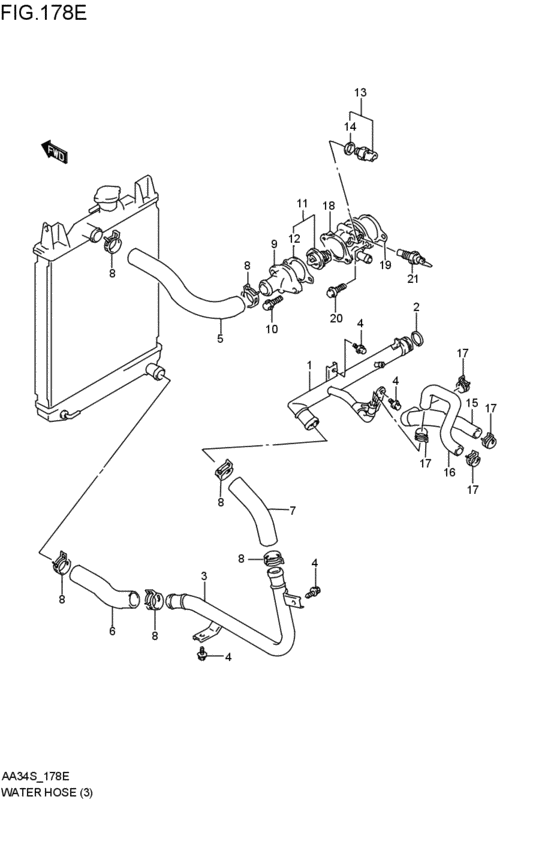

water hose (2WD:SCVT; 1992-01-01~) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17840-63E30-000
パイプ,ウォータインテーク,NO.1
2WD:SCVT; 1992-01-01~ |
17840-63E30-000 |
— | ||
|
2
|
2
09280-28008-000 O RING(D:3.5,ID:27.7)2WD:SCVT; 1992-01-01~ |
09280-28008-000 |
from US $0.63 |
||
|
3
|
3
17860-63E30-000
パイプ,ウォータインテーク,NO.2
2WD:SCVT; 1992-01-01~ |
17860-63E30-000 |
— | ||
|
4
|
4
01550-06103-000
Bolt, front
2WD:SCVT; 1992-01-01~ |
01550-06103-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0610B-000 BoltBolt 2WD:SCVT; 1992-01-01~ |
01550-0610B-000 |
from US $0.80 |
||
|
4
|
4
01550-0610A-000 BOLT2WD:SCVT; 1992-01-01~ |
01550-0610A-000 |
from US $0.80 |
||
|
5
|
5
17852-63E00-000 HOSE,RADIATOR INLET2WD:SCVT; 1992-01-01~ |
17852-63E00-000 |
US $16.67 |
||
|
6
|
6
17854-63E20-000
ホース,ラジエータアウトレット,NO.1
2WD:SCVT; 1992-01-01~ |
17854-63E20-000 |
— | ||
|
7
|
7
17855-63B21-000
ホース,ラジエータアウトレット,N0.2
2WD:SCVT; 1992-01-01~ |
17855-63B21-000 |
— | ||
| replacement | |||||
|
7
|
7
17851-60A00-000 HOSE,RADIATOR OUTLET NO.12WD:SCVT; 1992-01-01~ |
17851-60A00-000 |
from US $14.90 |
||
|
8
|
8
09401-30403-000
クリップ
2WD:SCVT; 1992-01-01~ |
09401-30403-000 |
— | ||
| replacement | |||||
|
8
|
8
09401-30405-000 CLIP2WD:SCVT; 1992-01-01~ |
09401-30405-000 |
from US $3.04 |
||
|
9
|
9
17561-60B00-000 CAP,WATER THERMOSTAT2WD:SCVT; 1992-01-01~ |
17561-60B00-000 |
US $31.20 |
||
|
10
|
10
01550-08253-000
Bolt, rear
2WD:SCVT; 1992-01-01~ |
01550-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825B-000 BOLT2WD:SCVT; 1992-01-01~ |
01550-0825B-000 |
from US $0.96 |
||
|
10
|
10
01550-0825A-000 BOLT2WD:SCVT; 1992-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
17600-85821-000 THERMOSTAT SET,WATER 88 DEG2WD:SCVT; 1992-01-01~ |
17600-85821-000 |
from US $20.03 |
||
|
12
|
12
17569-82001-H17 GASKET,WTR THERMO CAP2WD:SCVT; 1992-01-01~ |
17569-82001-H17 |
US $2.24 |
||
|
13
|
13
17680-50F10-000
SWITCH,FAN THERMO
ガスケットアリ; 2WD:SCVT; 1992-01-01~ |
17680-50F10-000 |
— | ||
| replacement | |||||
|
13
|
13
17680-50F11-000 Switch Comp,rdtr Fanガスケットアリ; 2WD:SCVT; 1992-01-01~ |
17680-50F11-000 |
from US $32.80 |
||
|
14
|
14
17689-50F00-000 O-RING2WD:SCVT; 1992-01-01~ |
17689-50F00-000 |
from US $1.60 |
||
|
15
|
15
17871-63E30-000
Hose,heater inlet
2WD:SCVT; 1992-01-01~ |
17871-63E30-000 |
— | ||
|
16
|
16
17872-63E20-000
ホース,ヒータ,アウトレット
2WD:SCVT; 1992-01-01~ |
17872-63E20-000 |
— | ||
|
17
|
17
09401-18403-000 CLIPClip, heater hose 2WD:SCVT; 1992-01-01~ |
09401-18403-000 |
US $1.92 |
||
|
18
|
18
17690-63E31-000
ケース,サーモスタット
2WD:SCVT; 1992-01-01~ |
17690-63E31-000 |
— | ||
|
19
|
19
17699-60B02-000 GASKET,THERMO CASE2WD:SCVT; 1992-01-01~ |
17699-60B02-000 |
from US $3.94 |
||
|
20
|
20
01550-08253-000
Bolt, rear
2WD:SCVT; 1992-01-01~ |
01550-08253-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0825B-000 BOLT2WD:SCVT; 1992-01-01~ |
01550-0825B-000 |
from US $0.96 |
||
|
20
|
20
01550-0825A-000 BOLT2WD:SCVT; 1992-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
21
|
21
34850-82012-000
Gauge assy, water temperature
DENSO; 2WD:SCVT; 1992-01-01~ |
34850-82012-000 |
— | ||
| replacement | |||||
|
21
|
21
34850-14F00-000 GAUGE ASSY,WATER TEMPDENSO; 2WD:SCVT; 1992-01-01~ |
34850-14F00-000 |
US $23.57 |
||
