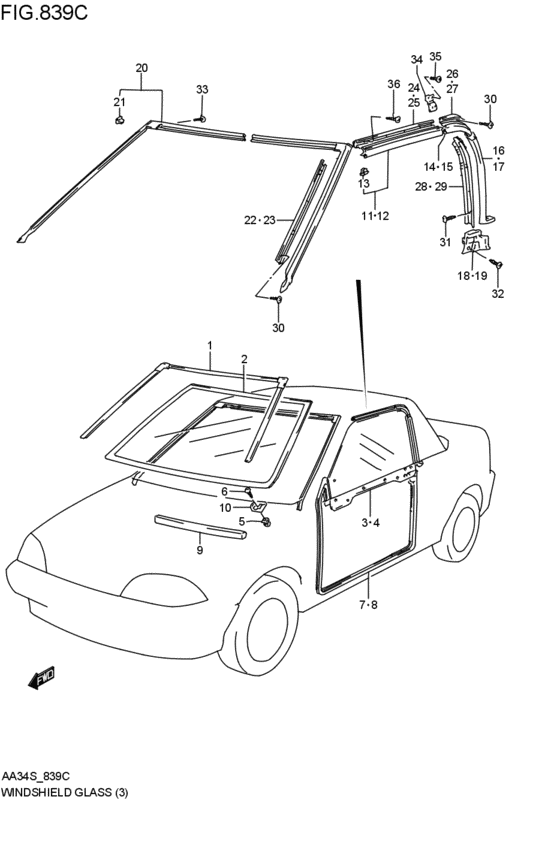

windshield (2WD:2DR; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- SCVT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84611-50D00-000
MOLDING,WSHLD UPR
2WD:2DR; 1992-01-01~1992-11-01 |
84611-50D00-000 |
— | ||
|
2
|
2
84511-50D20-000
ガラス,ウィンドシールド(ブロンズ)
CENTRAL ブロンズ; 2WD:2DR; 1992-01-01~1992-11-01 |
84511-50D20-000 |
— | ||
|
3
|
3
84531-50D20-000
ガラス,フロントドアウィンド,ライト(ブロンズ)
CENTRAL ブロンズ; 2WD:2DR; 1992-01-01~1992-11-01 |
84531-50D20-000 |
— | ||
|
4
|
4
84536-50D20-000
ガラス,フロントドアウィンド,レフト(ブロンズ)
CENTRAL ブロンズ; 2WD:2DR; 1992-01-01~1992-11-01 |
84536-50D20-000 |
— | ||
|
5
|
5
09148-05018-000 NUT2WD:2DR; 1992-01-01~1992-11-01 |
09148-05018-000 |
from US $0.63 |
||
|
6
|
6
03211-15163-000
Screw
2WD:2DR; 1992-01-01~1992-11-01 |
03211-15163-000 |
— | ||
| replacement | |||||
|
6
|
6
03211-1516B-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
03211-1516B-000 |
US $0.80 |
||
|
7
|
7
84641-50D00-000
Weatherstrip,front door opng,r
2WD:2DR; 1992-01-01~1992-11-01 |
84641-50D00-000 |
— | ||
|
8
|
8
84651-50D00-000
WEATHERSTRIP,FR DR OPNG,L
2WD:2DR; 1992-01-01~1992-11-01 |
84651-50D00-000 |
— | ||
|
9
|
9
84615-62B00-000 SPACER,WINDSHIELD GLASS2WD:2DR; 1992-01-01~1992-11-01 |
84615-62B00-000 |
US $13.28 |
||
|
10
|
10
84616-61B00-000 STOPPER,WINDSHIELD GLASS2WD:2DR; 1992-01-01~1992-11-01 |
84616-61B00-000 |
US $8.16 |
||
|
11
|
11
84642-50D01-000
WEATHERSTRIP,DR UPR NO.1,R
2WD:2DR; 1992-01-01~1992-11-01 |
84642-50D01-000 |
— | ||
|
12
|
12
84652-50D01-000
WEATHERSTRIP,DR UPR NO.1,L
2WD:2DR; 1992-01-01~1992-11-01 |
84652-50D01-000 |
— | ||
|
13
|
13
84666-50D00-000
CLIP,DR GLASS GUIDE
2WD:2DR; 1992-01-01~1992-11-01 |
84666-50D00-000 |
— | ||
|
14
|
14
84643-50D01-000
WEATHERSTRIP,DR UPR NO.2,R
2WD:2DR; 1992-01-01~1992-11-01 |
84643-50D01-000 |
— | ||
|
15
|
15
84653-50D01-000
WEATHERSTRIP,DR UPR NO.2,L
2WD:2DR; 1992-01-01~1992-11-01 |
84653-50D01-000 |
— | ||
|
16
|
16
84644-50D01-000
WEATHERSTRIP,DR UPR NO.3,R
2WD:2DR; 1992-01-01~1992-11-01 |
84644-50D01-000 |
— | ||
|
17
|
17
84654-50D01-000
WEATHERSTRIP,DR UPR NO.3,L
2WD:2DR; 1992-01-01~1992-11-01 |
84654-50D01-000 |
— | ||
|
18
|
18
84645-50D00-000
WEATHERSTRIP,DR UPR NO.4,R
2WD:2DR; 1992-01-01~1992-11-01 |
84645-50D00-000 |
— | ||
|
19
|
19
84655-50D00-000
Weatherstrip,door opng up,n04l
2WD:2DR; 1992-01-01~1992-11-01 |
84655-50D00-000 |
— | ||
|
20
|
20
84665-50D02-000
Weatherstrip,header opng
2WD:2DR; 1992-01-01~1992-11-01 |
84665-50D02-000 |
— | ||
|
21
|
21
84666-50D00-000
CLIP,DR GLASS GUIDE
2WD:2DR; 1992-01-01~1992-11-01 |
84666-50D00-000 |
— | ||
|
22
|
22
84691-50D01-000
RAIL,FR PILLAR,R
2WD:2DR; 1992-01-01~1992-11-01 |
84691-50D01-000 |
— | ||
|
23
|
23
84692-50D01-000
RAIL,FR PILLAR,L
2WD:2DR; 1992-01-01~1992-11-01 |
84692-50D01-000 |
— | ||
|
24
|
24
84693-50D00-000
Rail,frame upper,r
2WD:2DR; 1992-01-01~1992-11-01 |
84693-50D00-000 |
— | ||
|
25
|
25
84694-50D00-000
Rail,frame upper,l
2WD:2DR; 1992-01-01~1992-11-01 |
84694-50D00-000 |
— | ||
|
26
|
26
84695-50D00-000
Rail,frame corner,r
2WD:2DR; 1992-01-01~1992-11-01 |
84695-50D00-000 |
— | ||
|
27
|
27
84696-50D00-000
レール,フレームコーナ,レフト
2WD:2DR; 1992-01-01~1992-11-01 |
84696-50D00-000 |
— | ||
|
28
|
28
84697-50D00-000
Rail,frame side,r
2WD:2DR; 1992-01-01~1992-11-01 |
84697-50D00-000 |
— | ||
|
29
|
29
84698-50D00-000
レール,フレームサイド,レフト
2WD:2DR; 1992-01-01~1992-11-01 |
84698-50D00-000 |
— | ||
|
30
|
30
09132-04028-000
SCREW(4X8)
2WD:2DR; 1992-01-01~1992-11-01 |
09132-04028-000 |
— | ||
|
31
|
31
09132-04029-000
スクリュ,4X10
2WD:2DR; 1992-01-01~1992-11-01 |
09132-04029-000 |
— | ||
|
32
|
32
02142-05103-000
Screw 5x10
2WD:2DR; 1992-01-01~1992-11-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
32
|
32
02142-0510B-000 SCREWBolt 2WD:2DR; 1992-01-01~1992-11-01 |
02142-0510B-000 |
from US $0.76 |
||
|
33
|
33
03211-15163-000
Screw
2WD:2DR; 1992-01-01~1992-11-01 |
03211-15163-000 |
— | ||
| replacement | |||||
|
33
|
33
03211-1516B-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
03211-1516B-000 |
US $0.80 |
||
|
34
|
34
84667-50D00-000
Guide,door glass outer
2WD:2DR; 1992-01-01~1992-11-01 |
84667-50D00-000 |
— | ||
|
35
|
35
09132-04028-000
SCREW(4X8)
2WD:2DR; 1992-01-01~1992-11-01 |
09132-04028-000 |
— | ||
|
36
|
36
03142-04083-000
スクリュ
2WD:2DR; 1992-01-01~1992-11-01 |
03142-04083-000 |
— | ||
| replacement | |||||
|
36
|
36
03141-0408A-000 SCREW2WD:2DR; 1992-01-01~1992-11-01 |
03141-0408A-000 |
US $0.80 |
||
