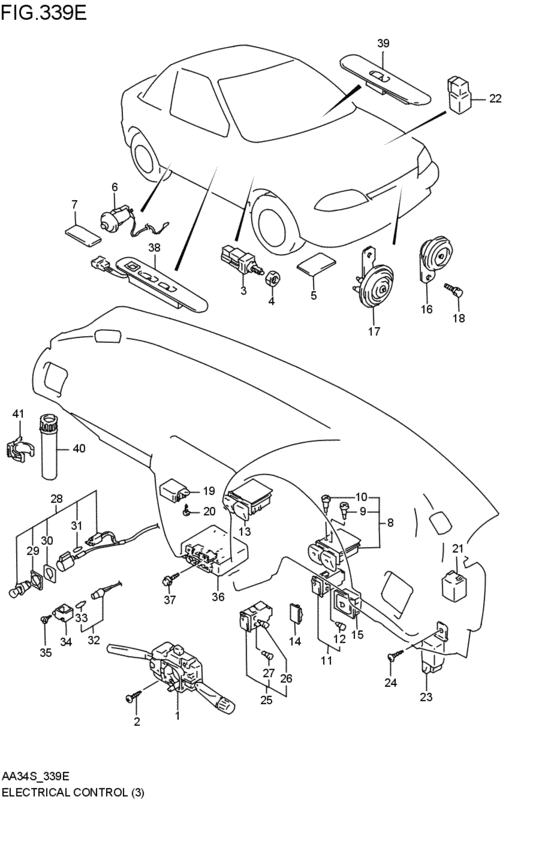

electrical control (2DR:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-63E13-000
SWITCH ASSY,COMB
2DR:2WD; 1992-01-01~1992-11-01 |
37400-63E13-000 |
— | ||
|
2
|
2
02112-05123-000
Screw 5x12
2DR:2WD; 1992-01-01~1992-11-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREW2DR:2WD; 1992-01-01~1992-11-01 |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-60D01-000 SWITCH ASSY,STOP LAMPストップランプスイッチ; 2DR:2WD:MT; 1992-01-01~1992-11-01 |
37740-60D01-000 |
US $42.40 |
||
|
4
|
4
09140-10043-000 NUTNut, tie rod rh thread 2DR:2WD; 1992-01-01~1992-11-01 |
09140-10043-000 |
from US $0.91 |
||
|
5
|
5
36930-82010-000 COVER,HARNESSCover, roof wire 2DR:2WD; 1992-01-01~1992-11-01 |
36930-82010-000 |
from US $1.73 |
||
|
6
|
6
37670-50D00-000 SWITCH ASSY,DOOR2DR:2WD; 1992-01-01~1992-11-01 |
37670-50D00-000 |
US $11.33 |
||
|
7
|
7
36930-82010-000 COVER,HARNESSCover, roof wire 2DR:2WD; 1992-01-01~1992-11-01 |
36930-82010-000 |
from US $1.73 |
||
|
8
|
8
37860-60E10-000
SWITCH ASSY,FR FOG LAMP
2DR:2WD; 1992-01-01~1992-11-01 |
37860-60E10-000 |
— | ||
|
9
|
9
09471-12135-000 BULB(CLEAR)クリア; 2DR:2WD; 1992-01-01~1992-11-01 |
09471-12135-000 |
US $57 |
||
|
10
|
10
37399-60E10-000 BULB,SWITCH(GREEN)グリーン; 2DR:2WD; 1992-01-01~1992-11-01 |
37399-60E10-000 |
US $10.34 |
||
|
11
|
11
37280-70F00-000
SWITCH ASSY,RR FOG
2DR:2WD; 1992-01-01~1992-11-01 |
37280-70F00-000 |
— | ||
|
12
|
12
09471-12135-000 BULB(CLEAR)クリア; 2DR:2WD; 1992-01-01~1992-11-01 |
09471-12135-000 |
US $57 |
||
|
13
|
13
37375-60E00-000 CAP,CLUSTER SW HOLE2DR:2WD; 1992-01-01~1992-11-01 |
37375-60E00-000 |
US $12 |
||
|
14
|
14
37285-60E00-000 CAP,OPTION SW HOLE2DR:2WD; 1992-01-01~1992-11-01 |
37285-60E00-000 |
US $2.24 |
||
|
15
|
15
37950-60E01-000 SWITCH ASSY,MIRROR2DR:2WD; 1992-01-01~1992-11-01 |
37950-60E01-000 |
US $140.80 |
||
|
16
|
16
38500-60B10-000
ホーンアッシ,ハイ
ハイノート; 2DR:2WD; 1992-01-01~1992-11-01 |
38500-60B10-000 |
— | ||
| replacement | |||||
|
16
|
16
38500-60B11-000
HORN ASSY
ハイノート; 2DR:2WD; 1992-01-01~1992-11-01 |
38500-60B11-000 |
— | ||
|
17
|
17
38500-60G00-000 HORN ASSYDENSO ローノート; 2DR:2WD; 1992-01-01~1992-11-01 |
38500-60G00-000 |
US $66.40 |
||
|
18
|
18
01570-08123-000
Bolt
2DR:2WD; 1992-01-01~1992-11-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
18
|
18
01570-0812A-000 Bolt2DR:2WD; 1992-01-01~1992-11-01 |
01570-0812A-000 |
US $14.40 |
||
|
19
|
19
38590-77E10-000 CONTROLLER,WARNING BUZZER2DR:2WD; 1992-01-01~1992-11-01 |
38590-77E10-000 |
US $138 |
||
|
20
|
20
02142-05103-000
Screw 5x10
2DR:2WD; 1992-01-01~1992-11-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
20
|
20
02142-0510B-000 SCREWBolt 2DR:2WD; 1992-01-01~1992-11-01 |
02142-0510B-000 |
from US $0.76 |
||
|
21
|
21
38610-84001-000
リレー,ターンシグナル/4ウェイ
DENSO; 2DR:2WD; 1992-01-01~1992-11-01 |
38610-84001-000 |
— | ||
| replacement | |||||
|
21
|
21
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way DENSO; 2DR:2WD; 1992-01-01~1992-11-01 |
38610-76G00-000 |
US $56.80 |
||
|
22
|
22
38860-61B00-000 RELAY ASSY,HORNラジエータファンリレー; 2DR:2WD:MT; 1992-01-01~1992-11-01 |
38860-61B00-000 |
US $36.25 |
||
|
23
|
23
95572-63C00-000 RELAY ASSYフォグランプリレー; 2DR:2WD; 1992-01-01~1992-11-01 |
95572-63C00-000 |
US $42.69 |
||
|
24
|
24
03141-06163-000
Screw 6x16
2DR:2WD; 1992-01-01~1992-11-01 |
03141-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0616A-000 SCREW2DR:2WD; 1992-01-01~1992-11-01 |
03141-0616A-000 |
from US $0.76 |
||
|
28
|
28
39400-86821-000 LIGHTER ASSY,CIGARETTE2DR:2WD; 1992-01-01~1992-11-01 |
39400-86821-000 |
US $27.20 |
||
|
29
|
29
39471-86000-000
リム,シガレットライタ
2DR:2WD; 1992-01-01~1992-11-01 |
39471-86000-000 |
— | ||
|
30
|
30
39472-82000-000 WASHER,CIGARETTE LIGHTER2DR:2WD; 1992-01-01~1992-11-01 |
39472-82000-000 |
US $1.25 |
||
|
31
|
31
09471-12055-000 BULB(14V1.4W,T5)DENSO; 2DR:2WD; 1992-01-01~1992-11-01 |
09471-12055-000 |
from US $2.40 |
||
|
32
|
32
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM2DR:2WD; 1992-01-01~1992-11-01 |
36550-60E00-000 |
US $21.90 |
||
|
33
|
33
09471-12091-000 BULB(12V1.4W G30)DENSO; 2DR:2WD; 1992-01-01~1992-11-01 |
09471-12091-000 |
US $28 |
||
|
34
|
34
89819-60E01-000 HOLDER,ASHTRAY LAMP2DR:2WD; 1992-01-01~1992-11-01 |
89819-60E01-000 |
US $4.38 |
||
|
35
|
35
03541-04123-000
Screw
2DR:2WD; 1992-01-01~1992-11-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
35
|
35
03541-0412B-000 SCREWScrew, plate 2DR:2WD; 1992-01-01~1992-11-01 |
03541-0412B-000 |
from US $0.80 |
||
|
35
|
35
03541-0412A-000 SCREWScrew, speedometer 2DR:2WD; 1992-01-01~1992-11-01 |
03541-0412A-000 |
from US $0.80 |
||
|
38
|
38
37990-62E01-5ES
スイッチアッシ,パワーウィンド,マスタ(ブラック)
ブラック; 2DR:2WD; 1992-01-01~1992-11-01 |
37990-62E01-5ES |
— | ||
| replacement | |||||
|
38
|
38
37990-62E02-5ES
SWITCH ASSY,P/W MASTER
ブラック; 2DR:2WD; 1992-01-01~1992-11-01 |
37990-62E02-5ES |
— | ||
|
39
|
39
37995-62E00-5ES SWITCH ASSY,P/W SUBブラック; 2DR:2WD; 1992-01-01~1992-11-01 |
37995-62E00-5ES |
US $65.14 |
||
|
40
|
40
76470-84B00-000
シグナルアッシ,フレヤ(KARRIT)
CARLIT; 2DR:2WD; 1992-01-01~1992-11-01 |
76470-84B00-000 |
— | ||
|
41
|
41
09403-32301-000 HOLDER2DR:2WD; 1992-01-01~1992-11-01 |
09403-32301-000 |
US $1.28 |
||
