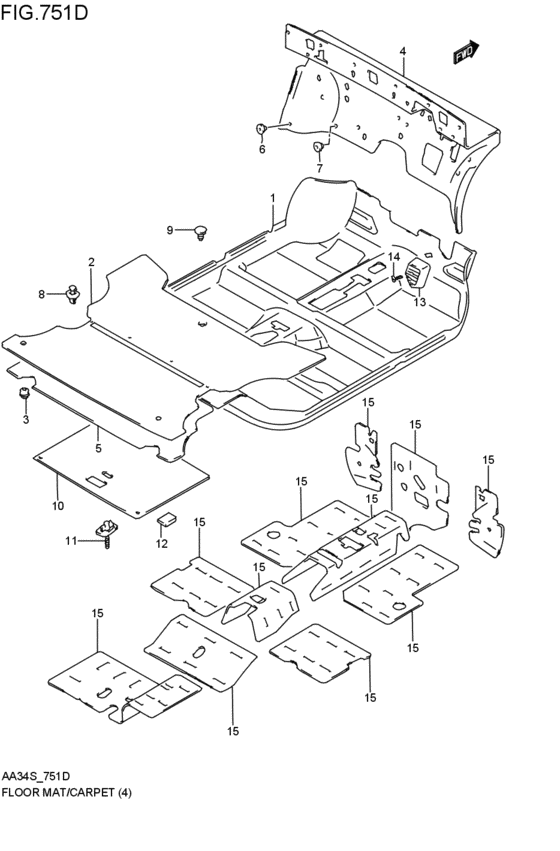

floor mat / carpet (2DR:2WD; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-61E00-5TW
カーペット,フロア(ブラック)
ブラック; 2DR:2WD; 1992-01-01~1992-11-01 |
75110-61E00-5TW |
— | ||
|
2
|
2
75130-50D00-45E
カーペット,ラゲッジフロア(グレー)
グレ-; 2DR:2WD; 1992-01-01~1992-11-01 |
75130-50D00-45E |
— | ||
|
3
|
3
09410-00067-000 MALE2DR:2WD; 1992-01-01~1992-11-01 |
09410-00067-000 |
US $2.88 |
||
|
4
|
4
75210-60B00-000
SILENCER,DASH PANEL
2DR:2WD; 1992-01-01~1992-11-01 |
75210-60B00-000 |
— | ||
|
5
|
5
75220-63B01-000 SILENCER,LUGGAGE FLOOR2DR:2WD; 1992-01-01~1992-11-01 |
75220-63B01-000 |
US $115.52 |
||
|
6
|
6
09148-05042-000 CLIP2DR:2WD; 1992-01-01~1992-11-01 |
09148-05042-000 |
US $1.12 |
||
|
7
|
7
09148-05037-000 CLIP2DR:2WD; 1992-01-01~1992-11-01 |
09148-05037-000 |
from US $1.24 |
||
|
8
|
8
09409-07303-5ES CLIP(BLACK)ブラック; 2DR:2WD; 1992-01-01~1992-11-01 |
09409-07303-5ES |
from US $1.52 |
||
|
9
|
9
09409-10305-000 CLIP2DR:2WD; 1992-01-01~1992-11-01 |
09409-10305-000 |
US $14.40 |
||
|
10
|
10
75440-60B00-000
カバー,スペアタイヤ
2DR:2WD; 1992-01-01~1992-11-01 |
75440-60B00-000 |
— | ||
| replacements | |||||
|
10
|
10
75440-61B10-000
COVER,SPARE TIRE
2DR:2WD; 1992-01-01~1992-11-01 |
75440-61B10-000 |
— | ||
|
10
|
10
79167-50B00-000
プラカード,テンポラリタイヤ
2DR:2WD; 1992-01-01~1992-11-01 |
79167-50B00-000 |
— | ||
|
11
|
11
75450-60B11-000
HOLDER,SPARE TIRE
2DR:2WD; 1992-01-01~1992-11-01 |
75450-60B11-000 |
— | ||
|
12
|
12
75461-60B00-000
PAD,SPARE TIRE
2DR:2WD; 1992-01-01~1992-11-01 |
75461-60B00-000 |
— | ||
|
13
|
13
75491-60B10-000
PEDAL,FOOTREST
2DR:2WD; 1992-01-01~1992-11-01 |
75491-60B10-000 |
— | ||
|
14
|
14
09125-08015-000
スクリュ,8X20
2DR:2WD; 1992-01-01~1992-11-01 |
09125-08015-000 |
— | ||
| replacement | |||||
|
14
|
14
09125-08015-XC0 SCREW(8X20)2DR:2WD; 1992-01-01~1992-11-01 |
09125-08015-XC0 |
US $1.60 |
||
|
15
|
15
99611-60A00-000
シート,サイレンサ,800X1000X3
2DR:2WD; 1992-01-01~1992-11-01 |
99611-60A00-000 |
— | ||
| replacement | |||||
|
15
|
15
99611-60A01-000 SHEET,SILENCER 800X1000X32DR:2WD; 1992-01-01~1992-11-01 |
99611-60A01-000 |
US $62.40 |
||
