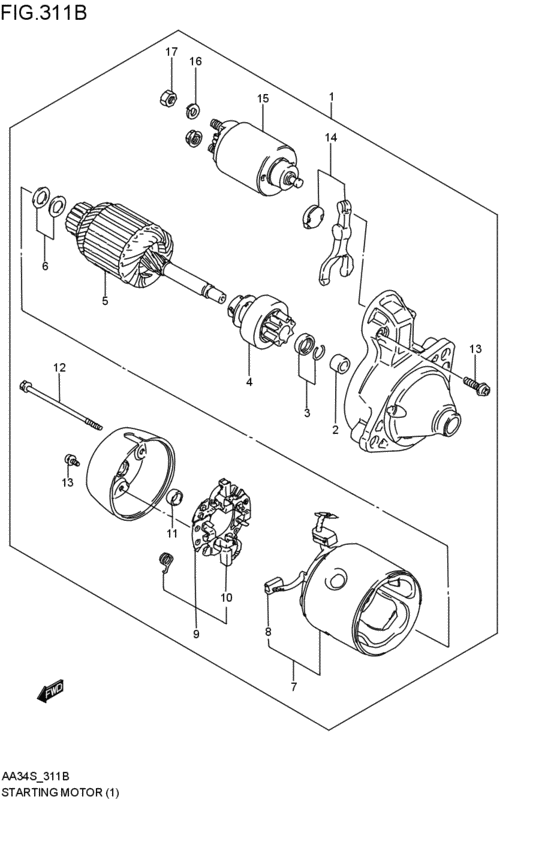

starting motor (OHC:2WD:MT:2DR; 1992-01-01~1992-11-01) Diagram Suzuki CULTUS
- Year
- 1992
- Sales region
- Japan
- Engine
- OHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 2DR
- grade
- RE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-82330-000
モータアッシ,スターティング
OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31100-82330-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-86033-REM
Starting motor
OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31100-86033-REM |
— | ||
|
1
|
1
31100-86033-000 MOTOR ASSY,STARTINGOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31100-86033-000 |
US $524.48 |
||
|
2
|
2
31152-79030-000 BEARING,FRONTOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31152-79030-000 |
from US $4.68 |
||
|
3
|
3
31313-80090-000 RING SETOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31313-80090-000 |
US $11.30 |
||
|
4
|
4
31320-82631-000 CLUTCH ASSYOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31320-82631-000 |
US $122.91 |
||
|
5
|
5
31311-82632-000 ARMATUREOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31311-82632-000 |
US $379.04 |
||
|
6
|
6
31361-79030-000 WASHEROHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31361-79030-000 |
US $8.02 |
||
|
7
|
7
31110-83030-000
YOKE ASSY
OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31110-83030-000 |
— | ||
|
8
|
8
31131-80090-000 BRUSH(+)OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31131-80090-000 |
US $11.30 |
||
|
9
|
9
31173-82130-000 HOLDER ASSY,BRUSHOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31173-82130-000 |
US $58.14 |
||
|
10
|
10
31132-80090-000 BRUSH(-)OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31132-80090-000 |
US $11.30 |
||
|
11
|
11
31172-79030-000 BUSHOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31172-79030-000 |
US $5.63 |
||
|
12
|
12
31261-82130-000 BoltOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31261-82130-000 |
US $6.40 |
||
|
13
|
13
31136-79030-000
SCREW ASSY
OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31136-79030-000 |
— | ||
| replacement | |||||
|
13
|
13
31175-79030-000 Screw SetOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31175-79030-000 |
US $8.16 |
||
|
14
|
14
31191-82030-000 LEVER ASSYOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31191-82030-000 |
US $17.37 |
||
|
15
|
15
31220-84030-000 SWITCH ASSYOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
31220-84030-000 |
US $177.74 |
||
|
16
|
16
08321-01083-000
Lock washer
OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
16
|
16
08321-0108B-000 WASHER,LOCKOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
08321-0108B-000 |
from US $0.76 |
||
|
16
|
16
08321-0108A-000 WASHER,LOCKOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
08321-0108A-000 |
from US $0.80 |
||
|
17
|
17
08310-00083-000
Nut
OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0008B-000 NUTOHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
08310-0008B-000 |
from US $0.80 |
||
|
17
|
17
08310-0008A-000 NUTNut, bead stopper OHC:2WD:MT:2DR; 1992-01-01~1992-11-01 |
08310-0008A-000 |
from US $0.76 |
||
