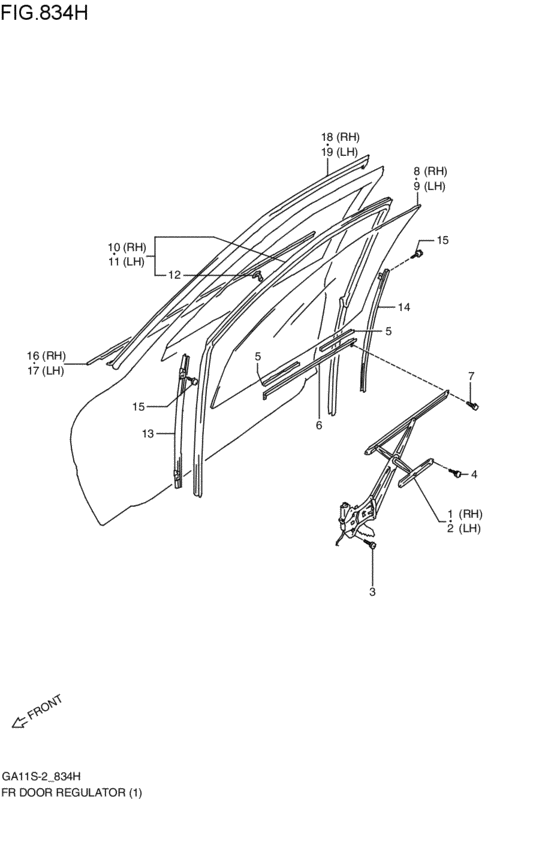

front door regulator (3ドア; 3DR; 1996-02-01~1997-03-01) Diagram Suzuki CULTUS
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- F
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83401-60G00-000
レギュレータアッシ,フロントウィンド,ライト
3DR; 1996-02-01~1997-03-01 |
83401-60G00-000 |
— | ||
| replacement | |||||
|
1
|
1
83401-60G01-000 REGULATOR ASSY,FR WINDOW,R3DR; 1996-02-01~1997-03-01 |
83401-60G01-000 |
US $604.80 |
||
|
2
|
2
83402-60G00-000
レギュレータアッシ,フロントウィンド,レフト
3DR; 1996-02-01~1997-03-01 |
83402-60G00-000 |
— | ||
| replacement | |||||
|
2
|
2
83402-60G01-000 REGULATOR ASSY,FR WINDOW,L3DR; 1996-02-01~1997-03-01 |
83402-60G01-000 |
US $375.36 |
||
|
3
|
3
02112-76123-000
Screw
3DR; 1996-02-01~1997-03-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-7612B-000 SCREW3DR; 1996-02-01~1997-03-01 |
02112-7612B-000 |
from US $0.96 |
||
|
4
|
4
02112-76123-000
Screw
3DR; 1996-02-01~1997-03-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-7612B-000 SCREW3DR; 1996-02-01~1997-03-01 |
02112-7612B-000 |
from US $0.96 |
||
|
5
|
5
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNELL:250>180; 3DR; 1996-02-01~1997-03-01 |
83691-60A00-000 |
US $2.56 |
||
|
6
|
6
83610-62B00-000 CHANNEL,FR GLASS BOTTOM3DR; 1996-02-01~1997-03-01 |
83610-62B00-000 |
from US $15.12 |
||
|
7
|
7
02112-76103-000
Screw
3DR; 1996-02-01~1997-03-01 |
02112-76103-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-7610A-000 SCREW3DR; 1996-02-01~1997-03-01 |
02112-7610A-000 |
from US $3.59 |
||
|
8
|
8
84531-61G30-000
GLASS,FR DR WDO,R
グリ-ン,CENTRAL; 3DR; 1996-02-01~1997-03-01 |
84531-61G30-000 |
— | ||
|
9
|
9
84536-61G30-000
GLASS,FR DR WDO,L
グリ-ン,CENTRAL; 3DR; 1996-02-01~1997-03-01 |
84536-61G30-000 |
— | ||
|
10
|
10
83661-61G00-000
RUN,FR DOOR GLASS,R
3DR; 1996-02-01~1997-03-01 |
83661-61G00-000 |
— | ||
|
11
|
11
83665-61G00-000
RUN,FR DOOR GLASS,L
3DR; 1996-02-01~1997-03-01 |
83665-61G00-000 |
— | ||
|
12
|
12
83663-50G00-000
GUIDE,DR WINDOW GLASS
3DR; 1996-02-01~1997-03-01 |
83663-50G00-000 |
— | ||
|
13
|
13
81710-60G00-000 SASH,FR DOOR FRONT3DR; 1996-02-01~1997-03-01 |
81710-60G00-000 |
US $16.52 |
||
|
14
|
14
81730-60G00-000
サッシュ,フロントドア,リヤ
3DR; 1996-02-01~1997-03-01 |
81730-60G00-000 |
— | ||
| replacement | |||||
|
14
|
14
81730-60G01-000 SASH,FR DOOR REAR3DR; 1996-02-01~1997-03-01 |
81730-60G01-000 |
US $17.59 |
||
|
15
|
15
09136-06131-000
スクリュ
3DR; 1996-02-01~1997-03-01 |
09136-06131-000 |
— | ||
| replacement | |||||
|
15
|
15
09122-46001-000 SCREW(6X16)3DR; 1996-02-01~1997-03-01 |
09122-46001-000 |
US $9.90 |
||
|
16
|
16
83811-61G00-000 WEATHERSTRIP,FR DR OTR,R3DR; 1996-02-01~1997-03-01 |
83811-61G00-000 |
US $65.14 |
||
|
17
|
17
83821-61G00-000 WEATHERSTRIP,FR DR OTR,L3DR; 1996-02-01~1997-03-01 |
83821-61G00-000 |
US $65.14 |
||
|
18
|
18
83662-61G00-000
MOLDING,FR DR FRAME,R
3DR; 1996-02-01~1997-03-01 |
83662-61G00-000 |
— | ||
|
19
|
19
83666-61G00-000
MOLDING,FR DR FRAME,L
3DR; 1996-02-01~1997-03-01 |
83666-61G00-000 |
— | ||
