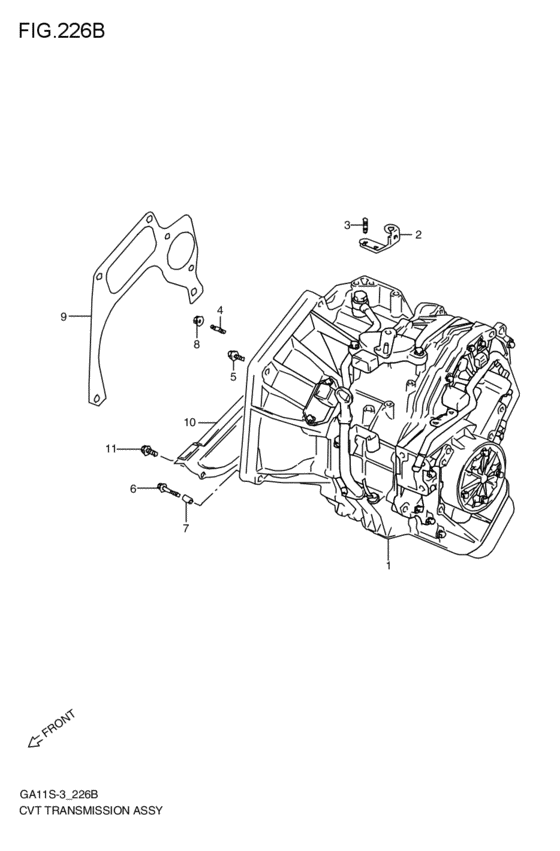

cvt - transmission assy (CVT; 1997-05-01~1998-01-01) Diagram Suzuki CULTUS
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- VT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-60GQ0-000
トランスミッションアッシ,CVT
CVT; 1997-05-01~1998-01-01 |
21000-60GQ0-000 |
— | ||
|
2
|
2
28222-60GQ0-000
ブラケット,ヒータホース
CVT; 1997-05-01~1998-01-01 |
28222-60GQ0-000 |
— | ||
|
3
|
3
09108-10113-000 BOLT,STUDCVT; 1997-05-01~1998-01-01 |
09108-10113-000 |
from US $1.92 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
CVT; 1997-05-01~1998-01-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0825A-000 BOLT,STUDCVT; 1997-05-01~1998-01-01 |
01421-0825A-000 |
from US $1.12 |
||
|
5
|
5
01550-10603-000
Bolt
CVT; 1997-05-01~1998-01-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-1060B-000 BoltCVT; 1997-05-01~1998-01-01 |
01550-1060B-000 |
US $1.60 |
||
|
5
|
5
01550-1060A-000 BoltCVT; 1997-05-01~1998-01-01 |
01550-1060A-000 |
from US $1.60 |
||
|
6
|
6
01550-10703-000
ボルト
CVT; 1997-05-01~1998-01-01 |
01550-10703-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1070A-000 BoltCVT; 1997-05-01~1998-01-01 |
01550-1070A-000 |
from US $1.60 |
||
|
7
|
7
04211-13189-000 PINCVT; 1997-05-01~1998-01-01 |
04211-13189-000 |
from US $1.19 |
||
|
8
|
8
08316-10103-000
Nut
CVT; 1997-05-01~1998-01-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUTCVT; 1997-05-01~1998-01-01 |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
11311-60G00-000
プレート,クラッチハウジング,アッパ
CVT; 1997-05-01~1998-01-01 |
11311-60G00-000 |
— | ||
|
10
|
10
11320-60G00-000
プレート,クラッチハウジング,ロア
CVT; 1997-05-01~1998-01-01 |
11320-60G00-000 |
— | ||
|
11
|
11
02162-06103-000
Bolt
CVT; 1997-05-01~1998-01-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREWCVT; 1997-05-01~1998-01-01 |
02162-0610A-000 |
from US $0.64 |
||
