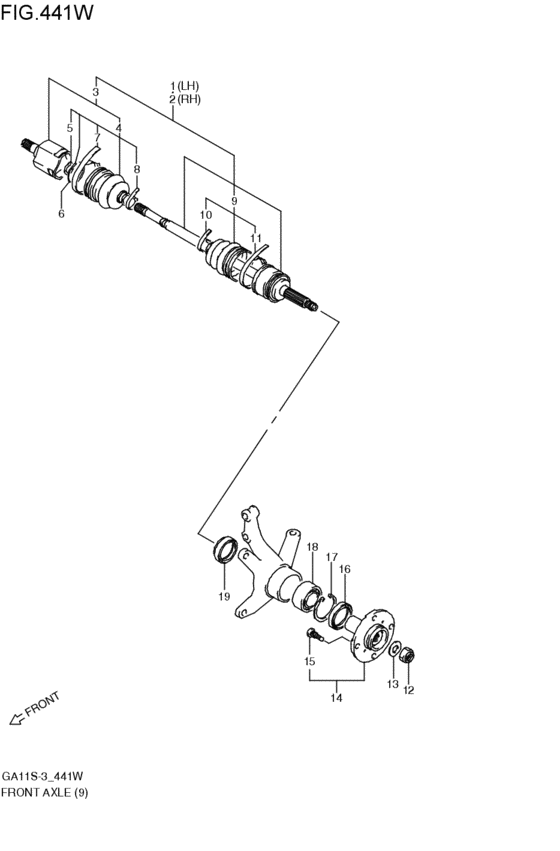

front axle (G13B:CVT; 1997-05-01~1998-01-01) Diagram Suzuki CULTUS
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- VT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-60GN0-000
シャフトアッシ,フロントドライブ,ライト
G13B:CVT; 1997-05-01~1998-01-01 |
44101-60GN0-000 |
— | ||
|
2
|
2
44102-60GN0-000
シャフトアッシ,フロントドライブ,レフト
G13B:CVT; 1997-05-01~1998-01-01 |
44102-60GN0-000 |
— | ||
|
3
|
3
44117-60G90-000
ジョイントアッシ,ディファレンシャルサイド
G13B:CVT; 1997-05-01~1998-01-01 |
44117-60G90-000 |
— | ||
|
4
|
4
44119-60G90-000
ブーツセット,ディファレンシャルサイド
G13B:CVT; 1997-05-01~1998-01-01 |
44119-60G90-000 |
— | ||
|
5
|
5
44111-78010-000 RING,SNAPG13B:CVT; 1997-05-01~1998-01-01 |
44111-78010-000 |
US $2.80 |
||
|
6
|
6
44112-78010-000 CIRCLIPG13B:CVT; 1997-05-01~1998-01-01 |
44112-78010-000 |
from US $5.26 |
||
|
7
|
7
44122-86010-000 BAND,BOOTClamp, differential side outer boot G13B:CVT; 1997-05-01~1998-01-01 |
44122-86010-000 |
from US $9.02 |
||
|
8
|
8
44124-86011-000 BAND,BOOTG13B:CVT; 1997-05-01~1998-01-01 |
44124-86011-000 |
US $6.81 |
||
|
9
|
9
44118-60G90-000
ブーツセット,ホイールサイド
G13B:CVT; 1997-05-01~1998-01-01 |
44118-60G90-000 |
— | ||
|
10
|
10
44124-86011-000 BAND,BOOTG13B:CVT; 1997-05-01~1998-01-01 |
44124-86011-000 |
US $6.81 |
||
|
11
|
11
44122-86010-000 BAND,BOOTClamp, differential side outer boot G13B:CVT; 1997-05-01~1998-01-01 |
44122-86010-000 |
from US $9.02 |
||
|
12
|
12
09159-18008-000 NUTG13B:CVT; 1997-05-01~1998-01-01 |
09159-18008-000 |
from US $4.10 |
||
|
13
|
13
09160-18017-000 WASHER(18X35X4)G13B:CVT; 1997-05-01~1998-01-01 |
09160-18017-000 |
from US $0.91 |
||
|
14
|
14
43420-50850-000
ハブセット,フロントホイール
G13B:CVT; 1997-05-01~1998-01-01 |
43420-50850-000 |
— | ||
| replacement | |||||
|
14
|
14
43420-50853-000 HUB SET,FR WHLG13B:CVT; 1997-05-01~1998-01-01 |
43420-50853-000 |
US $251.20 |
||
|
15
|
15
09119-12012-000 BOLT(12X38)G13B:CVT; 1997-05-01~1998-01-01 |
09119-12012-000 |
US $2.72 |
||
|
16
|
16
09283-56002-000 SEAL,OIL(56X72.2X7.8)G13B:CVT; 1997-05-01~1998-01-01 |
09283-56002-000 |
from US $12.20 |
||
|
17
|
17
09381-72002-000 RING,SNAPG13B:CVT; 1997-05-01~1998-01-01 |
09381-72002-000 |
from US $4.25 |
||
|
18
|
18
09267-40001-000 BEARING(40X72X36)G13B:CVT; 1997-05-01~1998-01-01 |
09267-40001-000 |
US $145.60 |
||
|
19
|
19
43431-60G00-000 SEAL,FR WHL BRG INNER OILG13B:CVT; 1997-05-01~1998-01-01 |
43431-60G00-000 |
US $32.80 |
||
