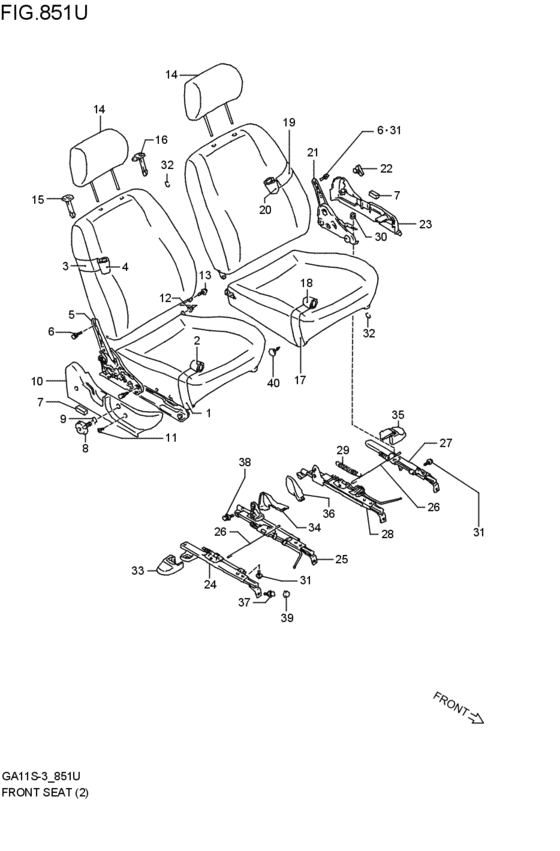

front seat (3DR:G; 1997-05-01~1998-03-01) Diagram Suzuki CULTUS
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- VT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-60G21-000
CUSHION SUB ASSY,FR SEAT,R
3DR:G; 1997-05-01~1989-03-01 |
85105-60G21-000 |
— | ||
|
2
|
2
85180-60G20-J4K
トリム,フロントクッション,ライト
グレー; 3DR:G; 1997-05-01~1989-03-01 |
85180-60G20-J4K |
— | ||
|
3
|
3
85305-64G00-000
Back sub assy,front seat,r
3DR:G; 1997-05-01~1989-03-01 |
85305-64G00-000 |
— | ||
|
4
|
4
85380-64G10-J4K
トリム,フロントシートバック,ライト
グレー; 3DR:G; 1997-05-01~1989-03-01 |
85380-64G10-J4K |
— | ||
|
5
|
5
85210-60G10-000
RECLINING ASSY,FR SEAT,R
3DR:G; 1997-05-01~1989-03-01 |
85210-60G10-000 |
— | ||
|
6
|
6
01570-08163-000
Bolt
3DR:G; 1997-05-01~1989-03-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-0816A-000 BOLT3DR:G; 1997-05-01~1989-03-01 |
01570-0816A-000 |
from US $0.96 |
||
|
7
|
7
85211-60B00-T01 KNOB,RECLINING FRグレ-; 3DR:G; 1997-05-01~1989-03-01 |
85211-60B00-T01 |
US $4.82 |
||
|
8
|
8
85119-60G00-T01
ノブ,フロントシートリフタ(グレー)
グレ-; 3DR:G; 1997-05-01~1989-03-01 |
85119-60G00-T01 |
— | ||
| replacement | |||||
|
8
|
8
85119-60G00-P4Z
Knob,front seat lifter
グレ-; 3DR:G; 1997-05-01~1989-03-01 |
85119-60G00-P4Z |
— | ||
|
9
|
9
78463-78000-000 SNAP3DR:G; 1997-05-01~1989-03-01 |
78463-78000-000 |
US $1.60 |
||
|
10
|
10
85221-60G01-T01 COVER,RECLINING ASSY,FR,Rグレ-; 3DR:G; 1997-05-01~1989-03-01 |
85221-60G01-T01 |
US $21.16 |
||
|
11
|
11
03242-05123-000
Screw, inner cover
3DR:G; 1997-05-01~1989-03-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0512A-000 SCREW3DR:G; 1997-05-01~1989-03-01 |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
85319-82000-000 BUSH,FR SEAT BACK FIXING3DR:G; 1997-05-01~1989-03-01 |
85319-82000-000 |
US $1.92 |
||
|
13
|
13
09136-06004-000 SCREW(6X12)3DR:G; 1997-05-01~1989-03-01 |
09136-06004-000 |
from US $0.77 |
||
|
14
|
14
86401-78C20-U43
ヘッドレストレイントアッシ,フロントシート
グレ-; 3DR:G; 1997-05-01~1989-03-01 |
86401-78C20-U43 |
— | ||
|
15
|
15
85341-72C10-5PK GUIDE,HEADRESTRAINT,Rブラック; 3DR:G; 1997-05-01~1989-03-01 |
85341-72C10-5PK |
US $5.45 |
||
|
16
|
16
85840-72C10-5PK GUIDE,HEADRESTRAINT,Lブラック; 3DR:G; 1997-05-01~1989-03-01 |
85840-72C10-5PK |
US $15.12 |
||
|
17
|
17
85106-60GA0-000
CUSHION SUB ASSY,FR SEAT,L
3DR:G; 1997-05-01~1989-03-01 |
85106-60GA0-000 |
— | ||
|
18
|
18
85680-60G00-J4K
トリム,フロントクッション,レフト
グレー; 3DR:G; 1997-05-01~1989-03-01 |
85680-60G00-J4K |
— | ||
|
19
|
19
85306-64G00-000
Back sub assy,front seat,l
3DR:G; 1997-05-01~1989-03-01 |
85306-64G00-000 |
— | ||
|
20
|
20
85880-64G10-J4K
トリム,フロントシートバック,レフト
グレー; 3DR:G; 1997-05-01~1989-03-01 |
85880-64G10-J4K |
— | ||
|
21
|
21
85710-64G00-000
RECLINING ASSY,FR SEAT,L
3DR:G; 1997-05-01~1989-03-01 |
85710-64G00-000 |
— | ||
|
22
|
22
85712-60G00-T01
KNOB,RCLNG PUSH LVR,L
グレ-; 3DR:G; 1997-05-01~1989-03-01 |
85712-60G00-T01 |
— | ||
|
23
|
23
85721-60B00-T01
COVER,RECLINING ASSY,FR,L
グレ-; 3DR:G; 1997-05-01~1989-03-01 |
85721-60B00-T01 |
— | ||
|
24
|
24
86630-63B21-000
ADJUSTER,FR SEAT OUTSIDE,R
ライトシート; 3DR:G; 1997-05-01~1989-03-01 |
86630-63B21-000 |
— | ||
|
25
|
25
86610-60G01-000
アジャスタ,フロントシートインサイド,ライト
ライトシート; 3DR:G; 1997-05-01~1989-03-01 |
86610-60G01-000 |
— | ||
| replacement | |||||
|
25
|
25
86610-61G01-000
ADJUSTER,FR SEAT INSIDE,R
ライトシート; 3DR:G; 1997-05-01~1989-03-01 |
86610-61G01-000 |
— | ||
|
26
|
26
86620-60B00-000 ROD,FRONT SEAT ADJUSTER3DR:G; 1997-05-01~1989-03-01 |
86620-60B00-000 |
US $7.36 |
||
|
27
|
27
86830-64G00-000
ADJUSTER,FR SEAT OUTSIDE,L
レフトシート; 3DR:G; 1997-05-01~1989-03-01 |
86830-64G00-000 |
— | ||
|
28
|
28
86810-64G00-000
ADJUSTER,FR INSIDE,L
レフトシート; 3DR:G; 1997-05-01~1989-03-01 |
86810-64G00-000 |
— | ||
|
29
|
29
85691-61B00-000
SPRING,WALKIN TENSION
3DR:G; 1997-05-01~1989-03-01 |
85691-61B00-000 |
— | ||
|
30
|
30
09159-08068-000
ナット
3DR:G; 1997-05-01~1989-03-01 |
09159-08068-000 |
— | ||
| replacement | |||||
|
30
|
30
09159-08075-000 NUT3DR:G; 1997-05-01~1989-03-01 |
09159-08075-000 |
US $0.91 |
||
|
31
|
31
01570-08163-000
Bolt
3DR:G; 1997-05-01~1989-03-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
31
|
31
01570-0816A-000 BOLT3DR:G; 1997-05-01~1989-03-01 |
01570-0816A-000 |
from US $0.96 |
||
|
32
|
32
09387-19001-000 RING3DR:G; 1997-05-01~1989-03-01 |
09387-19001-000 |
US $1.76 |
||
|
33
|
33
86745-60G00-T01
COVER,FR SEAT ADJUSTER OUTER,R
グレ-; 3DR:G; 1997-05-01~1989-03-01 |
86745-60G00-T01 |
— | ||
|
34
|
34
86735-60G00-T01
COVER,FR SEAT ADJUSTER INNER,R
グレ-; 3DR:G; 1997-05-01~1989-03-01 |
86735-60G00-T01 |
— | ||
|
35
|
35
86746-60G00-T01
COVER,FR SEAT ADJUSTER OUTER,L
グレ-; 3DR:G; 1997-05-01~1989-03-01 |
86746-60G00-T01 |
— | ||
|
36
|
36
86736-60G00-T01 COVER,FR SEAT ADJUSTER INNER,Lグレ-; 3DR:G; 1997-05-01~1989-03-01 |
86736-60G00-T01 |
US $14.08 |
||
|
37
|
37
09118-08157-000 BOLT(8X20)3DR:G; 1997-05-01~1989-03-01 |
09118-08157-000 |
US $23.20 |
||
|
38
|
38
09103-10208-000 BOLT(10X16)3DR:G; 1997-05-01~1989-03-01 |
09103-10208-000 |
US $15.50 |
||
|
39
|
39
38315-60B10-000
Cap
3DR:G; 1997-05-01~1989-03-01 |
38315-60B10-000 |
— | ||
| replacement | |||||
|
39
|
39
38315-60B11-000 CAP,WIPER PIVOT3DR:G; 1997-05-01~1989-03-01 |
38315-60B11-000 |
US $1.60 |
||
|
40
|
40
85191-60G00-000
CLIP,FR SEAT CUSHION
3DR:G; 1997-05-01~1989-03-01 |
85191-60G00-000 |
— | ||
