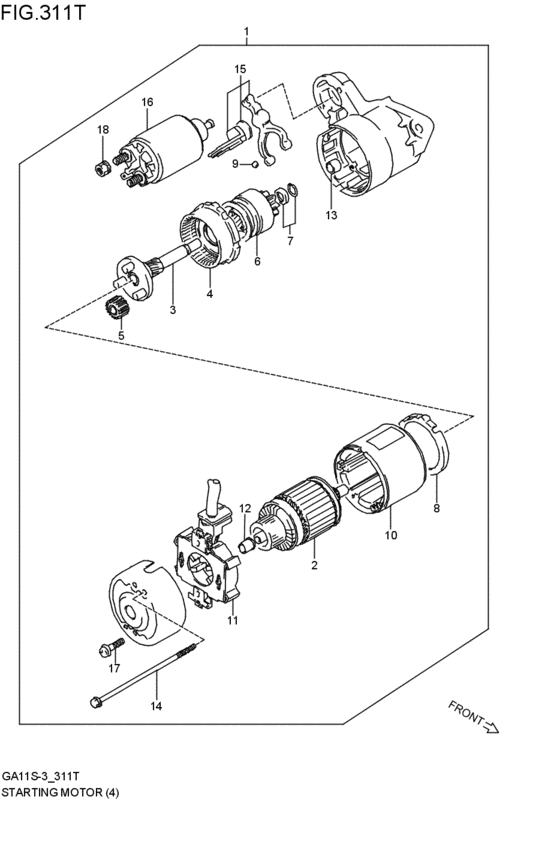

starting motor (CVT; 1997-05-01~1998-01-01) Diagram Suzuki CULTUS
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- CVT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- VT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60A13-000 MOTOR ASSY STARTERCVT; 1997-05-01~1998-01-01 |
31100-60A13-000 |
US $519.21 |
||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
CVT; 1997-05-01~1998-01-01 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTINGCVT; 1997-05-01~1998-01-01 |
31100-60A24-000 |
from US $519.21 |
||
|
2
|
2
31311-86032-000
Armature
CVT; 1997-05-01~1998-01-01 |
31311-86032-000 |
— | ||
|
3
|
3
31341-60A10-000
SHAFT,GEAR
CVT; 1997-05-01~1998-01-01 |
31341-60A10-000 |
— | ||
|
4
|
4
31343-50F40-000
GEAR,INTERNAL
CVT; 1997-05-01~1998-01-01 |
31343-50F40-000 |
— | ||
|
5
|
5
31344-86030-000 GEAR,PLNTYCVT; 1997-05-01~1998-01-01 |
31344-86030-000 |
from US $18.09 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNINGCVT; 1997-05-01~1998-01-01 |
31320-86030-000 |
from US $93.31 |
||
|
7
|
7
31313-86030-000 STOPPER SETCVT; 1997-05-01~1998-01-01 |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper SetCVT; 1997-05-01~1998-01-01 |
31314-86030-000 |
from US $11.50 |
||
|
8
|
8
31345-86030-000
Packing
CVT; 1997-05-01~1998-01-01 |
31345-86030-000 |
— | ||
| replacement | |||||
|
8
|
8
31345-60A00-000 PACKINGCVT; 1997-05-01~1998-01-01 |
31345-60A00-000 |
US $5.37 |
||
|
9
|
9
31193-86030-000 BALLCVT; 1997-05-01~1998-01-01 |
31193-86030-000 |
from US $0.83 |
||
|
10
|
10
31110-86031-000
YOKE ASSY
CVT; 1997-05-01~1998-01-01 |
31110-86031-000 |
— | ||
|
11
|
11
31173-86031-000
HOLDER BRUSH
CVT; 1997-05-01~1998-01-01 |
31173-86031-000 |
— | ||
| replacement | |||||
|
11
|
11
31173-60A22-000 HOLDER ASSY,BRUSHCVT; 1997-05-01~1998-01-01 |
31173-60A22-000 |
from US $63.84 |
||
|
12
|
12
31172-64B60-000 BEARING,REARCVT; 1997-05-01~1998-01-01 |
31172-64B60-000 |
from US $8.21 |
||
|
13
|
13
31152-79030-000 BEARING,FRONTCVT; 1997-05-01~1998-01-01 |
31152-79030-000 |
from US $5.11 |
||
|
14
|
14
31261-86030-000
Bolt
CVT; 1997-05-01~1998-01-01 |
31261-86030-000 |
— | ||
|
15
|
15
31191-86030-000
LEVER ASSY
CVT; 1997-05-01~1998-01-01 |
31191-86030-000 |
— | ||
|
16
|
16
31220-86030-000 SWITCH ASSYCVT; 1997-05-01~1998-01-01 |
31220-86030-000 |
from US $102.24 |
||
|
17
|
17
31136-79030-000 SCREW ASSYCVT; 1997-05-01~1998-01-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
17
|
17
31175-79030-000 Screw SetCVT; 1997-05-01~1998-01-01 |
31175-79030-000 |
US $8.16 |
||
|
18
|
18
08316-10083-000
Nut
CVT; 1997-05-01~1998-01-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUTCVT; 1997-05-01~1998-01-01 |
08316-1008B-000 |
from US $0.76 |
||
