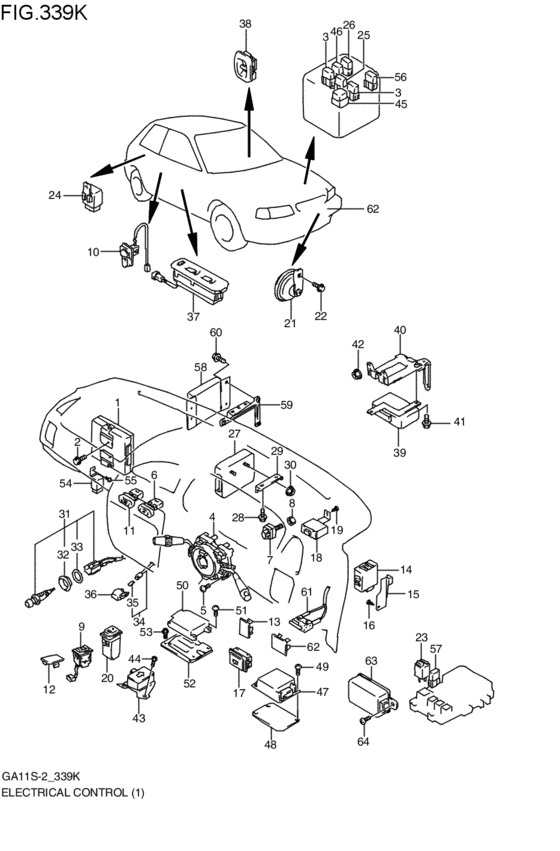

electrical control (3ドア; 3DR; 1996-02-01~1997-03-01) Diagram Suzuki CULTUS
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-60G31-000
コントローラ,フューエルインジェクション
DENSO; 3DR:(2WD:(MT,CVT)); 1996-02-01~1997-03-01 |
33920-60G31-000 |
— | ||
|
2
|
2
02162-06123-000
Bolt (6x12)
3DR; 1996-02-01~1997-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02162-0612B-000 SCREWBolt 3DR; 1996-02-01~1997-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket 3DR; 1996-02-01~1997-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
3
|
3
38860-60G00-000 RELAY ASSYDENSO,フュ-エル インジェクションリレ-; 3DR; 1996-02-01~1997-03-01 |
38860-60G00-000 |
US $55.20 |
||
|
4
|
4
37400-60G21-000
SWITCH ASSY,COMB
3DR:2WD:G; 1996-02-01~1997-03-01 |
37400-60G21-000 |
— | ||
|
5
|
5
02112-05123-000
Screw 5x12
3DR; 1996-02-01~1997-03-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0512A-000 SCREW3DR; 1996-02-01~1997-03-01 |
02112-0512A-000 |
from US $0.80 |
||
|
6
|
6
37430-60G00-000 SWITCH ASSY,HAZARD WARNING3DR; 1996-02-01~1997-03-01 |
37430-60G00-000 |
US $57.78 |
||
|
7
|
7
37740-60D01-000 SWITCH ASSY,STOP LAMP3DR:MT; 1996-02-01~1997-03-01 |
37740-60D01-000 |
US $42.40 |
||
|
8
|
8
09140-10043-000 NUTNut, tie rod rh thread 3DR; 1996-02-01~1997-03-01 |
09140-10043-000 |
from US $0.91 |
||
|
10
|
10
37670-60G00-000
Switch assy,door
3DR; 1996-02-01~1997-03-01 |
37670-60G00-000 |
— | ||
| replacements | |||||
|
10
|
10
37670-60G01-000 SWITCH ASSY,DOOR3DR; 1996-02-01~1997-03-01 |
37670-60G01-000 |
US $22.40 |
||
|
10
|
10
37670-79E01-000 SWITCH ASSY,TRUNK3DR; 1996-02-01~1997-03-01 |
37670-79E01-000 |
US $17.19 |
||
|
11
|
11
37860-60G00-000 SWITCH ASSY,RR DEFOGGER3DR; 1996-02-01~1997-03-01 |
37860-60G00-000 |
US $55.57 |
||
|
12
|
12
37275-70E10-000 CAP,OPTION SW HOLE3DR; 1996-02-01~1997-03-01 |
37275-70E10-000 |
US $11.20 |
||
|
13
|
13
37285-60E00-000 CAP,OPTION SW HOLE3DR; 1996-02-01~1997-03-01 |
37285-60E00-000 |
US $2.24 |
||
|
14
|
14
38700-60G10-000 CONTROLLER ASSY,DR LOCK3DR; 1996-02-01~1997-03-01 |
38700-60G10-000 |
US $183.63 |
||
|
15
|
15
38663-60G00-000
ブラケット,ドアロックコントロール
3DR; 1996-02-01~1996-06-01 |
38663-60G00-000 |
— | ||
|
16
|
16
02142-06083-000
Screw airspoile
3DR; 1996-02-01~1996-06-01 |
02142-06083-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0608A-000 SCREW3DR; 1996-02-01~1996-06-01 |
02142-0608A-000 |
from US $1.60 |
||
|
17
|
17
37950-60E01-000 SWITCH ASSY,MIRRORリモコンミラ-; 3DR:2WD; 1996-02-01~1997-03-01 |
37950-60E01-000 |
US $140.80 |
||
|
17
|
17
37950-60G00-000 SWITCH ASSY,MIRRORリモコン(カクノウ)ミラー; 3DR:(2WD,4WD); 1996-02-01~1997-03-01 |
37950-60G00-000 |
US $73.60 |
||
|
18
|
18
38690-60G00-000
コントローラアッシ,ミラー
リモコンミラ-(カクノウ); 3DR; 1996-02-01~1997-03-01 |
38690-60G00-000 |
— | ||
|
19
|
19
03141-05103-000
スクリュ
リモコンミラ-(カクノウ); 3DR; 1996-02-01~1997-03-01 |
03141-05103-000 |
— | ||
| replacement | |||||
|
19
|
19
03142-0510B-000 SCREWリモコンミラ-(カクノウ); 3DR; 1996-02-01~1997-03-01 |
03142-0510B-000 |
US $0.80 |
||
|
21
|
21
38500-60G00-000 HORN ASSY3DR; 1996-02-01~1997-03-01 |
38500-60G00-000 |
US $66.40 |
||
|
22
|
22
01570-08163-000
Bolt
3DR; 1996-02-01~1997-03-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
22
|
22
01570-0816A-000 BOLT3DR; 1996-02-01~1997-03-01 |
01570-0816A-000 |
from US $0.96 |
||
|
23
|
23
38610-84001-000
リレー,ターンシグナル/4ウェイ
OMRON; 3DR; 1996-02-01~1997-03-01 |
38610-84001-000 |
— | ||
| replacement | |||||
|
23
|
23
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way OMRON; 3DR; 1996-02-01~1997-03-01 |
38610-76G00-000 |
US $56.80 |
||
|
25
|
25
38860-60G00-000 RELAY ASSYラジエ-タリレ-; 3DR; 1996-02-01~1997-03-01 |
38860-60G00-000 |
US $55.20 |
||
|
26
|
26
38860-60G00-000 RELAY ASSYホ-ンリレ-; 3DR; 1996-02-01~1997-03-01 |
38860-60G00-000 |
US $55.20 |
||
|
31
|
31
39400-60830-000
LIGHTER ASSY,CIGARETTE
3DR; 1996-02-01~1997-03-01 |
39400-60830-000 |
— | ||
|
32
|
32
39471-50G00-000
RIM,CIGAR LIGHTER
3DR; 1996-02-01~1997-03-01 |
39471-50G00-000 |
— | ||
|
33
|
33
09160-23007-000 WASHER(23X34X1)3DR; 1996-02-01~1997-03-01 |
09160-23007-000 |
US $15.50 |
||
|
34
|
34
36550-60G00-000
LAMP ASSY,ASHTRAY ILLUM
3DR; 1996-02-01~1997-03-01 |
36550-60G00-000 |
— | ||
|
35
|
35
09471-24002-000
Bulb,24v1.4w(tokai denso)
TOKAI DENSO; 3DR; 1996-02-01~1997-03-01 |
09471-24002-000 |
— | ||
|
36
|
36
73822-60G00-000
HOLDER,LAMP
3DR; 1996-02-01~1997-03-01 |
73822-60G00-000 |
— | ||
|
37
|
37
37990-61GA0-5ES
スイッチアッシ,パワーウィンド,マスタ(ブラック)
ブラック; 3DR; 1996-02-01~1997-03-01 |
37990-61GA0-5ES |
— | ||
| replacement | |||||
|
37
|
37
37990-61GA2-5ES
SWITCH ASSY,P/W MTR
ブラック; 3DR; 1996-02-01~1997-03-01 |
37990-61GA2-5ES |
— | ||
|
38
|
38
37995-60G00-5ES SWITCH ASSY,P/W RRブラック,サブスイッチ; 3DR; 1996-02-01~1997-03-01 |
37995-60G00-5ES |
US $69.92 |
||
|
47
|
47
38910-60G00-000
リザーバアッシ,SDM
エアバックアリ; 3DR; 1996-02-01~1996-03-01 |
38910-60G00-000 |
— | ||
|
48
|
48
38911-60G00-000
プレート,SDM
エアバックアリ; 3DR; 1996-02-01~1996-03-01 |
38911-60G00-000 |
— | ||
|
49
|
49
09129-06006-000 SCREW(6X18)エアバックアリ; 3DR; 1996-02-01~1996-03-01 |
09129-06006-000 |
US $14 |
||
|
50
|
50
38910-60G01-000
RESERVOIR ASSY,SDM
エアバックアリ; 3DR; 1996-04-01~1997-03-01 |
38910-60G01-000 |
— | ||
|
51
|
51
09137-06020-000 SCREW(6X14)エアバックアリ; 3DR; 1996-04-01~1997-03-01 |
09137-06020-000 |
US $17.70 |
||
|
52
|
52
36883-60G00-000
BRACKET,SDM
エアバックアリ; 3DR; 1996-04-01~1997-03-01 |
36883-60G00-000 |
— | ||
|
53
|
53
09129-06006-000 SCREW(6X18)エアバックアリ; 3DR; 1996-04-01~1997-03-01 |
09129-06006-000 |
US $14 |
||
|
54
|
54
95572-63C00-000 RELAY ASSYブロワファンリレ-; 3DR; 1996-02-01~1997-03-01 |
95572-63C00-000 |
US $42.69 |
||
|
55
|
55
03541-05103-000
Screw5 x 10
3DR; 1996-02-01~1997-03-01 |
03541-05103-000 |
— | ||
| replacements | |||||
|
55
|
55
03541-0510B-000 SCREW3DR; 1996-02-01~1997-03-01 |
03541-0510B-000 |
from US $0.80 |
||
|
55
|
55
03541-0510A-000 SCREWScrew, rr cover 3DR; 1996-02-01~1997-03-01 |
03541-0510A-000 |
from US $0.68 |
||
|
56
|
56
38860-60G00-000 RELAY ASSYスモ-ルライティングリレ-; 3DR; 1996-02-01~1997-03-01 |
38860-60G00-000 |
US $55.20 |
||
|
57
|
57
38860-60G20-000 RELAY ASSY,LIGHTING HEADヘッドライティングリレ-; 3DR; 1996-02-01~1997-03-01 |
38860-60G20-000 |
US $33.86 |
||
