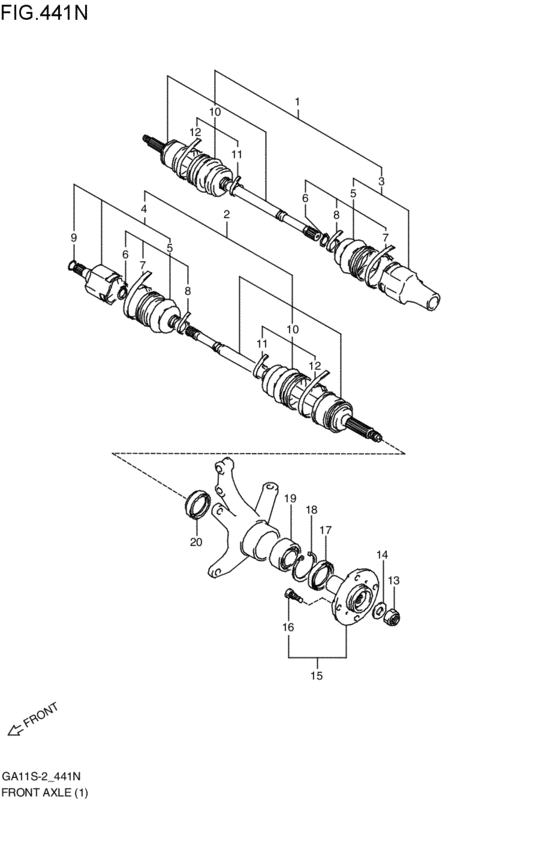

front axle (G13B:MT; 1996-02-01~1997-03-01) Diagram Suzuki CULTUS
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- G
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-60GB0-000
シャフトアッシ,フロントドライブ,ライト
G13B:MT; 1996-02-01~1997-03-01 |
44101-60GB0-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-60G01-000 SHAFT ASSY,FRONT DRIVE,RG13B:MT; 1996-02-01~1997-03-01 |
44101-60G01-000 |
US $528 |
||
|
2
|
2
44102-60GB0-000
シャフトアッシ,フロントドライブ,レフト
G13B:MT; 1996-02-01~1997-03-01 |
44102-60GB0-000 |
— | ||
| replacement | |||||
|
2
|
2
44102-60G01-000
SHAFT ASSY,FRONT DRIVE,L
G13B:MT; 1996-02-01~1997-03-01 |
44102-60G01-000 |
— | ||
|
3
|
3
44117-60G00-000
JOINT ASSY,DIFF SIDE,R
G13B:MT; 1996-02-01~1997-03-01 |
44117-60G00-000 |
— | ||
|
4
|
4
44117-72F00-000
JOINT ASSY,DIFF SIDE
G13B:MT; 1996-02-01~1997-03-01 |
44117-72F00-000 |
— | ||
|
5
|
5
44119-72F00-000
BOOT SET,DIFF SIDE
G13B:MT; 1996-02-01~1997-03-01 |
44119-72F00-000 |
— | ||
| replacement | |||||
|
5
|
5
44119-72F01-000 BOOT SET,DIFF SIDEG13B:MT; 1996-02-01~1997-03-01 |
44119-72F01-000 |
US $116.80 |
||
|
6
|
6
44111-64B90-000 RING,SNAPG13B:MT; 1996-02-01~1997-03-01 |
44111-64B90-000 |
US $2.80 |
||
|
7
|
7
44121-60B00-000 BAND,BOOTG13B:MT; 1996-02-01~1997-03-01 |
44121-60B00-000 |
US $8.80 |
||
|
8
|
8
44124-86011-000 BAND,BOOTG13B:MT; 1996-02-01~1997-03-01 |
44124-86011-000 |
US $6.81 |
||
|
9
|
9
09381-24001-000 RING,SNAPRing (od:24,d:1.6) LH; G13B:MT; 1996-02-01~1997-03-01 |
09381-24001-000 |
from US $1.60 |
||
|
10
|
10
44118-60G00-000
BOOT SET,WHEEL SIDE
G13B:MT; 1996-02-01~1997-03-01 |
44118-60G00-000 |
— | ||
| replacement | |||||
|
10
|
10
44118-60GA0-000
BOOT SET,WHEEL SIDE
G13B:MT; 1996-02-01~1997-03-01 |
44118-60GA0-000 |
— | ||
|
11
|
11
44124-86011-000 BAND,BOOTG13B:MT; 1996-02-01~1997-03-01 |
44124-86011-000 |
US $6.81 |
||
|
12
|
12
44122-86010-000 BAND,BOOTClamp, differential side outer boot G13B:MT; 1996-02-01~1997-03-01 |
44122-86010-000 |
from US $9.02 |
||
|
13
|
13
09159-18008-000 NUTG13B:MT; 1996-02-01~1997-03-01 |
09159-18008-000 |
from US $4.10 |
||
|
14
|
14
09160-18017-000 WASHER(18X35X4)G13B:MT; 1996-02-01~1997-03-01 |
09160-18017-000 |
from US $0.91 |
||
|
15
|
15
43420-50850-000
ハブセット,フロントホイール
G13B:MT; 1996-02-01~1997-03-01 |
43420-50850-000 |
— | ||
| replacement | |||||
|
15
|
15
43420-50853-000 HUB SET,FR WHLG13B:MT; 1996-02-01~1997-03-01 |
43420-50853-000 |
US $251.20 |
||
|
16
|
16
09119-12012-000 BOLT(12X38)G13B:MT; 1996-02-01~1997-03-01 |
09119-12012-000 |
US $2.72 |
||
|
17
|
17
09283-56002-000 SEAL,OIL(56X72.2X7.8)G13B:MT; 1996-02-01~1997-03-01 |
09283-56002-000 |
from US $12.20 |
||
|
18
|
18
09381-72002-000 RING,SNAPG13B:MT; 1996-02-01~1997-03-01 |
09381-72002-000 |
from US $4.25 |
||
|
19
|
19
09267-40001-000 BEARING(40X72X36)G13B:MT; 1996-02-01~1997-03-01 |
09267-40001-000 |
US $145.60 |
||
|
20
|
20
43431-60G00-000 SEAL,FR WHL BRG INNER OILG13B:MT; 1996-02-01~1997-03-01 |
43431-60G00-000 |
US $32.80 |
||
